Pool Lighting
230 V AC / 12 V AC pool lighting transformers that supply underwater projectors with safe extra-low voltage: 100–600 VA IP-20 panel types and 130–600 VA IP-65 boxed Class II models. They comply with UNE-EN-61558-2-6; the distance between projector and transformer must not exceed 40 m.
IP-20 · 100 VA · UNE-EN-61558-2-6
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Input / output | 230 V AC → 12 V AC (boxed: 12–17 V AC) |
|---|---|
| IP-20 panel type | 100 · 130 · 300 · 600 VA |
| IP-65 boxed (Class II) | 130 · 400 · 600 VA |
| Standard | UNE-EN-61558-2-6 · IEC 695-2-1 |
| Max. projector distance | 40 m |
Values by order code
| Order code | |||||||
|---|---|---|---|---|---|---|---|
| Power (VA) | 100 | 130 | 300 | 600 | 130 | 400 | 600 |
| Protection | IP-20 | IP-20 | IP-20 | IP-20 | IP-65 | IP-65 | IP-65 |
| Standard pack (pcs) | 10 | 1 | 6 | 1 | 1 | 1 | 1 |
| Pack weight (kg) | 25 | 1.86 | 4.15 | 8.5 | 3.1 | 6.8 | 11 |
| Order code | Variant description | Certifications |
|---|---|---|
| 00383-1369 | IP-20 · 100 VA | UNE-EN-61558-2-6 |
| 00383-4146 | IP-20 · 130 VA | UNE-EN-61558-2-6 |
| 00384-1369 | IP-20 · 300 VA | UNE-EN-61558-2-6 |
| 00385-1369 | IP-20 · 600 VA | UNE-EN-61558-2-6 |
| 35807 | IP-65 boxed · 130 VA | UNE-EN-61558-2-6 |
| 35385 | IP-65 boxed · 400 VA | UNE-EN-61558-2-6 |
| 35386 | IP-65 boxed · 600 VA | UNE-EN-61558-2-6 |
230 V AC / 12 V AC pool lighting transformers that supply underwater projectors with safe extra-low voltage: 100–600 VA IP-20 panel types and 130–600 VA IP-65 boxed Class II models. They comply with UNE-EN-61558-2-6; the distance between projector and transformer must not exceed 40 m.
IP-20 transformers are a compact panel-mounted range converting 230 V AC to 12 V AC; they suit any circuit board, install quickly and easily, have terminals protected against indirect contact and an ageing-resistant body. They are offered in 100 VA, 130 VA, 300 VA and 600 VA ratings.

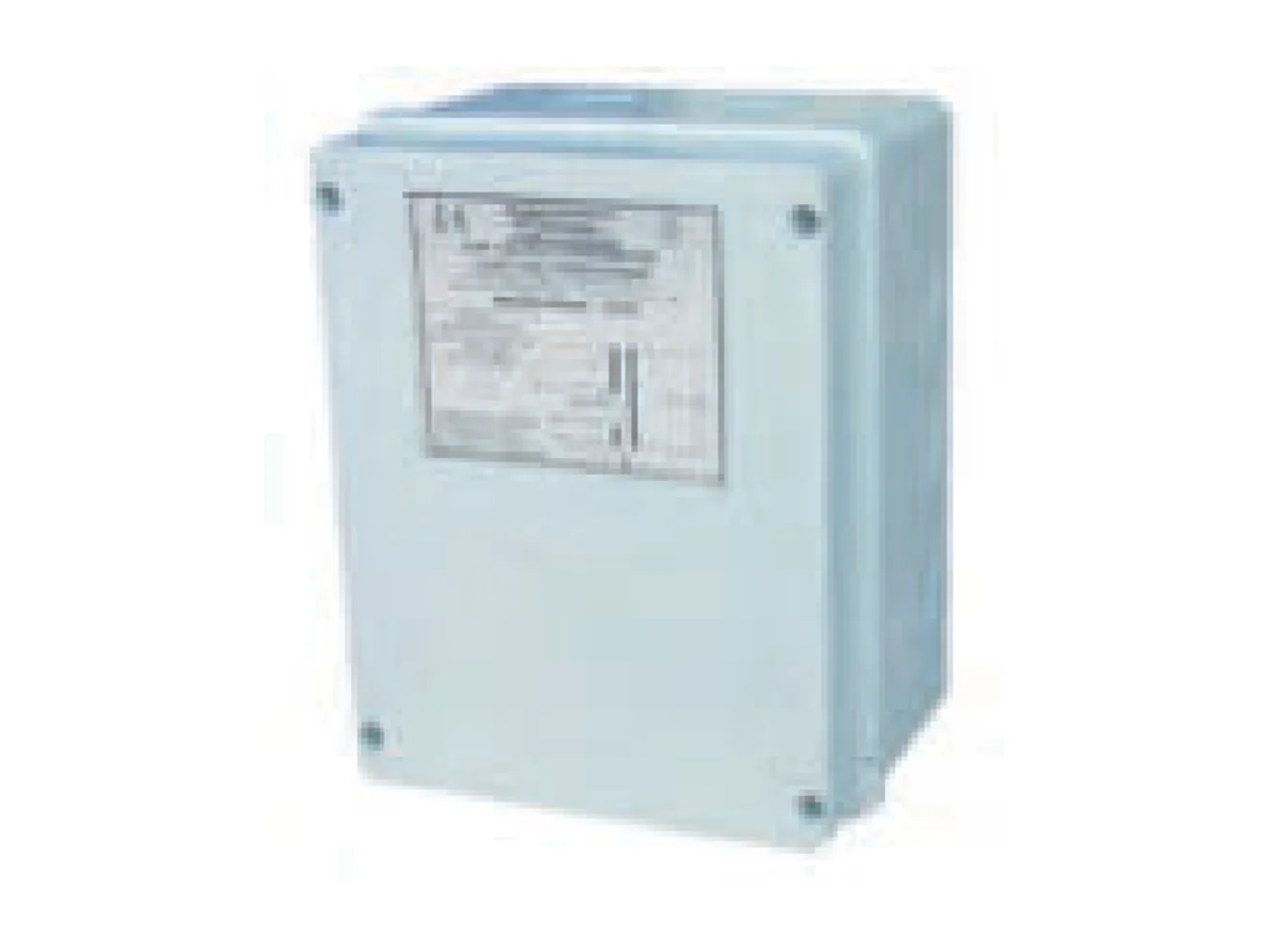

Boxed transformers are IP-65 rated Class II transformers converting 230 V AC to 12–17 V AC with full protection against electric shock; the self-extinguishing housing complies with IEC 695-2-1. They are offered in 130 VA, 400 VA and 600 VA ratings. Both series are made to UNE-EN-61558-2-6 and the distance between spotlight and transformer can be up to 40 m. Transformer power must be selected according to the total VA of the projectors to be connected.
