Pool Lighting

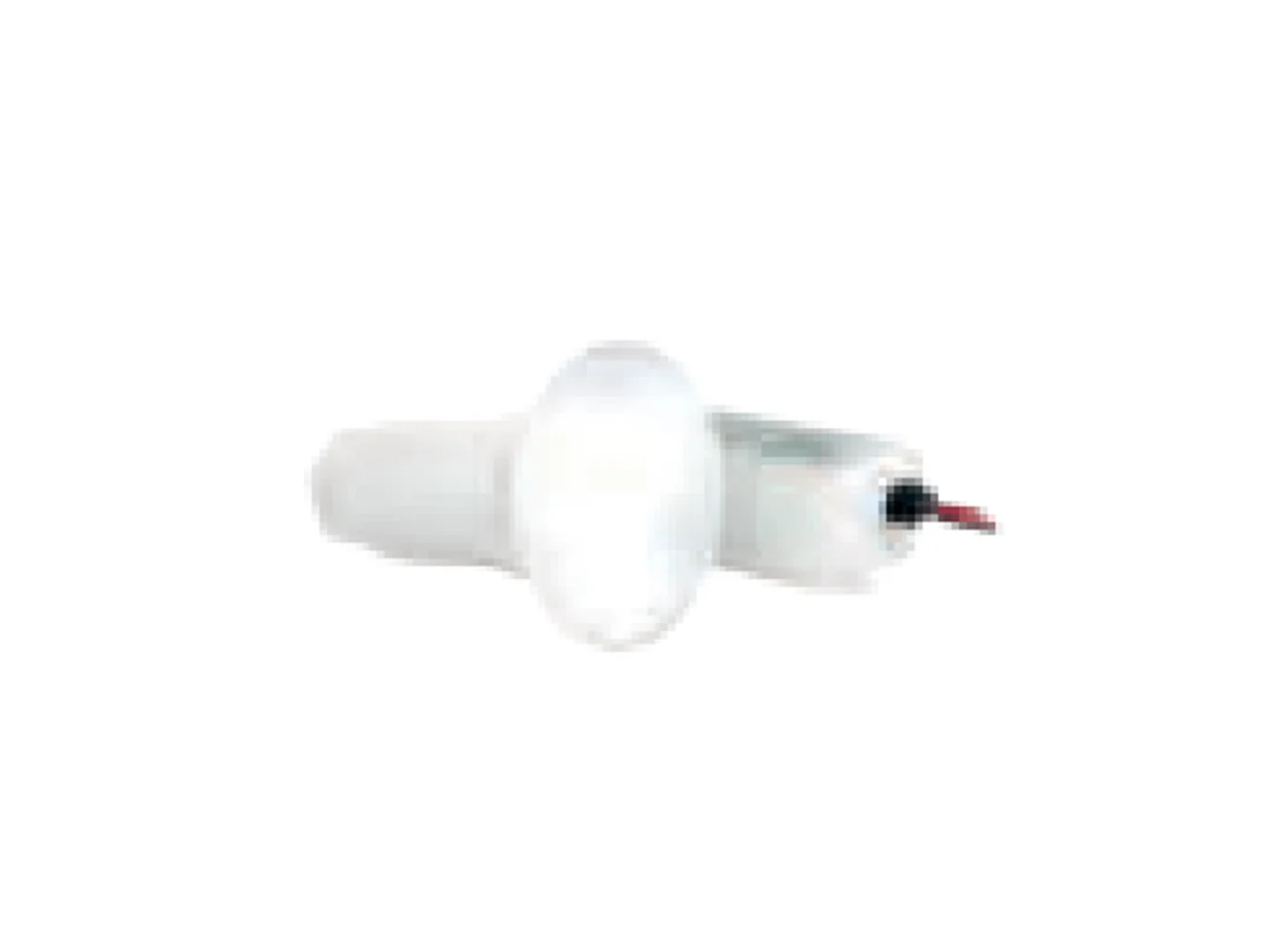

FlexiMini Plug&Play lamps are RGB step (300 lm) and wall (600 lm) lamps controlled by the Plug&Play remote (74399). FlexiMini On/Off lamps are single-colour white and warm white options delivering 450–900 lm; they run on 12 V AC or 24 V DC and come with a 2.5 m cable.
Plug&Play · Steps · RGB · IP68, EU 2019/2015
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Plug&Play steps | RGB · 4 W (6 VA) · 300 lm |
|---|---|
| Plug&Play wall | RGB · 8 W (12 VA) · 600 lm |
| On/Off steps | 3,5 W · 450 lm (24 V DC: 3 W) |
| On/Off wall | 7,2 W · 900 lm |
| Supply | 12 V AC / 24 V DC |
| Remote | Plug&Play 74399 |
Values by order code
| Order code | ||||||||
|---|---|---|---|---|---|---|---|---|
| Power (W) | 4 | 8 | 8 | 3.5 | 3.5 | 7.2 | 3 | 3 |
| Apparent power (VA) | 6 | 12 | 12 | 6 | 6 | 10.5 | 3 | 3 |
| Luminous flux (lm) | 300 | 600 | 600 | 450 | 450 | 900 | 450 | 450 |
| Energy class | G | G | G | D | D | D | C | C |
| Order code | Variant description | Certifications |
|---|---|---|
| 76588M | Plug&Play · Steps · RGB | IP68, EU 2019/2015 |
| 76589M | Plug&Play · Wall · RGB | IP68, EU 2019/2015 |
| 76590M | Kit: 3 × wall Plug&Play · + remote control | IP68, EU 2019/2015 |
| 74400 | On/Off · Steps · White | IP68, EU 2019/2015 |
| 74400WW | On/Off · Steps · Warm white | IP68, EU 2019/2015 |
| 74406WW | On/Off · Wall · Warm white | IP68, EU 2019/2015 |
| 74401 | On/Off · Steps · White · 24 V DC | IP68, EU 2019/2015 |
| 74401WW | On/Off · Steps · Warm white · 24 V DC | IP68, EU 2019/2015 |
FlexiMini Plug&Play lamps are RGB step (300 lm) and wall (600 lm) lamps controlled by the Plug&Play remote (74399). FlexiMini On/Off lamps are single-colour white and warm white options delivering 450–900 lm; they run on 12 V AC or 24 V DC and come with a 2.5 m cable.
FlexiMini Plug&Play lamps are the easiest way to light a pool fully in colour: one Plug&Play lamp and one Plug&Play remote are enough, with no extra module in the panel. The step lamp delivers 300 lm at 4 W (6 VA) and the wall lamp 600 lm at 8 W (12 VA). A kit of 3 wall lamps plus remote is also available.
FlexiMini On/Off lamps are single-colour white (5700 K) and warm white (3000 K) lamps. The 12 V AC step lamps give 450 lm at 3.5 W and the wall lamp 900 lm at 7.2 W; the 24 V DC step lamps consume only 3 W (3 VA), reaching energy class C, and come with a 24 V DC power pack.
