Pool Lighting

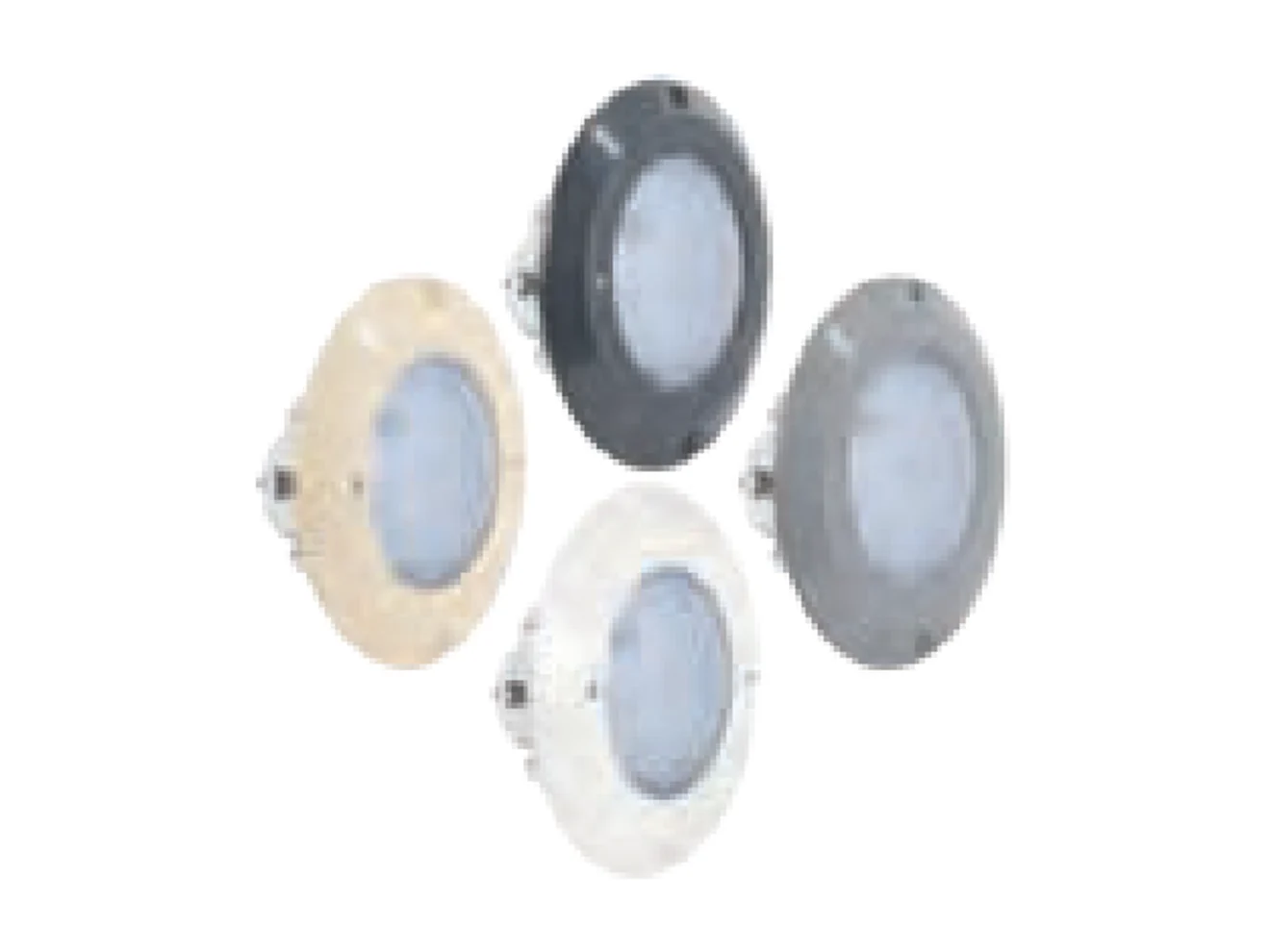

LumiPlus Essential PAR56 projectors are ready-to-install LED projectors with coloured frames, compatible with AstralPool 230 mm niches. White and warm white versions deliver 1,485 lm, RGB and RGB RC1100 versions 1,100 lm; frames come in white, beige, grey and anthracite. 12 V AC, 2.5 m cable.
White · White frame · IP68, EU 2019/2015
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Mounting | AstralPool 230 mm niche |
|---|---|
| Light | White, warm white, RGB, RGB RC1100 |
| Frame colour | White, beige, grey, anthracite |
| Supply | 12 V AC |
| Cable | 2,5 m |
| Control (RGB) | 32458 · 64633 + 75773 · Connect 76290 |
Values by model
| Model | ||||
|---|---|---|---|---|
| Power (W) | 14.5 | 14.5 | 22 | 22 |
| Apparent power (VA) | 20 | 20 | 29 | 29 |
| Luminous flux (lm) | 1485 | 1485 | 1100 | 1100 |
| Energy class | E | E | G | G |
| Order code | Variant description | Certifications |
|---|---|---|
| 70870 | White · White frame | IP68, EU 2019/2015 |
| 70870CL090 | White · Beige frame | IP68, EU 2019/2015 |
| 70870CL129 | White · Grey frame | IP68, EU 2019/2015 |
| 70870CL144 | White · Anthracite frame | IP68, EU 2019/2015 |
| 70870WW | Warm white · White frame | IP68, EU 2019/2015 |
| 70870WWCL090 | Warm white · Beige frame | IP68, EU 2019/2015 |
| 70870WWCL129 | Warm white · Grey frame | IP68, EU 2019/2015 |
| 70870WWCL144 | Warm white · Anthracite frame | IP68, EU 2019/2015 |
| 75435 | RGB · White frame | IP68, EU 2019/2015 |
| 75778 | RGB RC1100 · White frame | IP68, EU 2019/2015 |
LumiPlus Essential PAR56 projectors are ready-to-install LED projectors with coloured frames, compatible with AstralPool 230 mm niches. White and warm white versions deliver 1,485 lm, RGB and RGB RC1100 versions 1,100 lm; frames come in white, beige, grey and anthracite. 12 V AC, 2.5 m cable.
Essential PAR56 projectors offer an easy, reliable and effective switch to LED. They are compatible with AstralPool 230 mm niches and run on 12 V AC. White and warm white projectors deliver 1,485 lm at 14.5 W (20 VA) and, with four frame colours (white, beige, grey, anthracite), blend with the pool finish; RGB and RGB RC1100 projectors with a white frame deliver 1,100 lm at 22 W (29 VA).
RGB versions are controlled with the 32458 push button, the LumiPlus range extender 64633 + RC1100 remote 75773, or LumiPlus Connect 76290; without the range extender they are not compatible with the RC1100 remote. RGB RC1100 versions work directly with the 75773 remote and optionally with the range extender or Connect.
