Pool Lighting
LumiPlus Design is a high-power underwater LED projector mounted in 180 mm niches. White (5700 K) and warm white (3000 K) versions deliver 4,320 lm at 32 W, RGB versions 2,500 lm. Pure white or stainless-steel-effect frame; 12 V AC, IP68, 2.5 m cable.
White frame · White · IP68, EU 2019/2015
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Niche diameter | Ø180 mm |
|---|---|
| Light | White 5700 K, warm white 3000 K, RGB |
| Luminous flux | 4,320 lm (white) / 2,500 lm (RGB) |
| Power | 32 W (35 – 42 VA) |
| Supply / protection | 12 V AC · IP68 |
| Niches | 59813 concrete · 59814 / 59815 concrete + liner |
| Cable | 2,5 m |
Values by order code
| Order code | ||||||
|---|---|---|---|---|---|---|
| Power (W) | 32 | 32 | 32 | 32 | 32 | 32 |
| Apparent power (VA) | 35 | 35 | 35 | 35 | 42 | 42 |
| Luminous flux (lm) | 4320 | 4320 | 4320 | 4320 | 2500 | 2500 |
| Energy class | D | D | D | D | F | F |
| Order code | Variant description | Certifications |
|---|---|---|
| 59807 | White frame · White | IP68, EU 2019/2015 |
| 59807WW | White frame · Warm white | IP68, EU 2019/2015 |
| 59805 | Stainless-steel-effect frame · White | IP68, EU 2019/2015 |
| 59805WW | Stainless-steel-effect frame · Warm white | IP68, EU 2019/2015 |
| 59803 | White frame · RGB | IP68, EU 2019/2015 |
| 59801 | Stainless-steel-effect frame · RGB | IP68, EU 2019/2015 |
LumiPlus Design is a high-power underwater LED projector mounted in 180 mm niches. White (5700 K) and warm white (3000 K) versions deliver 4,320 lm at 32 W, RGB versions 2,500 lm. Pure white or stainless-steel-effect frame; 12 V AC, IP68, 2.5 m cable.

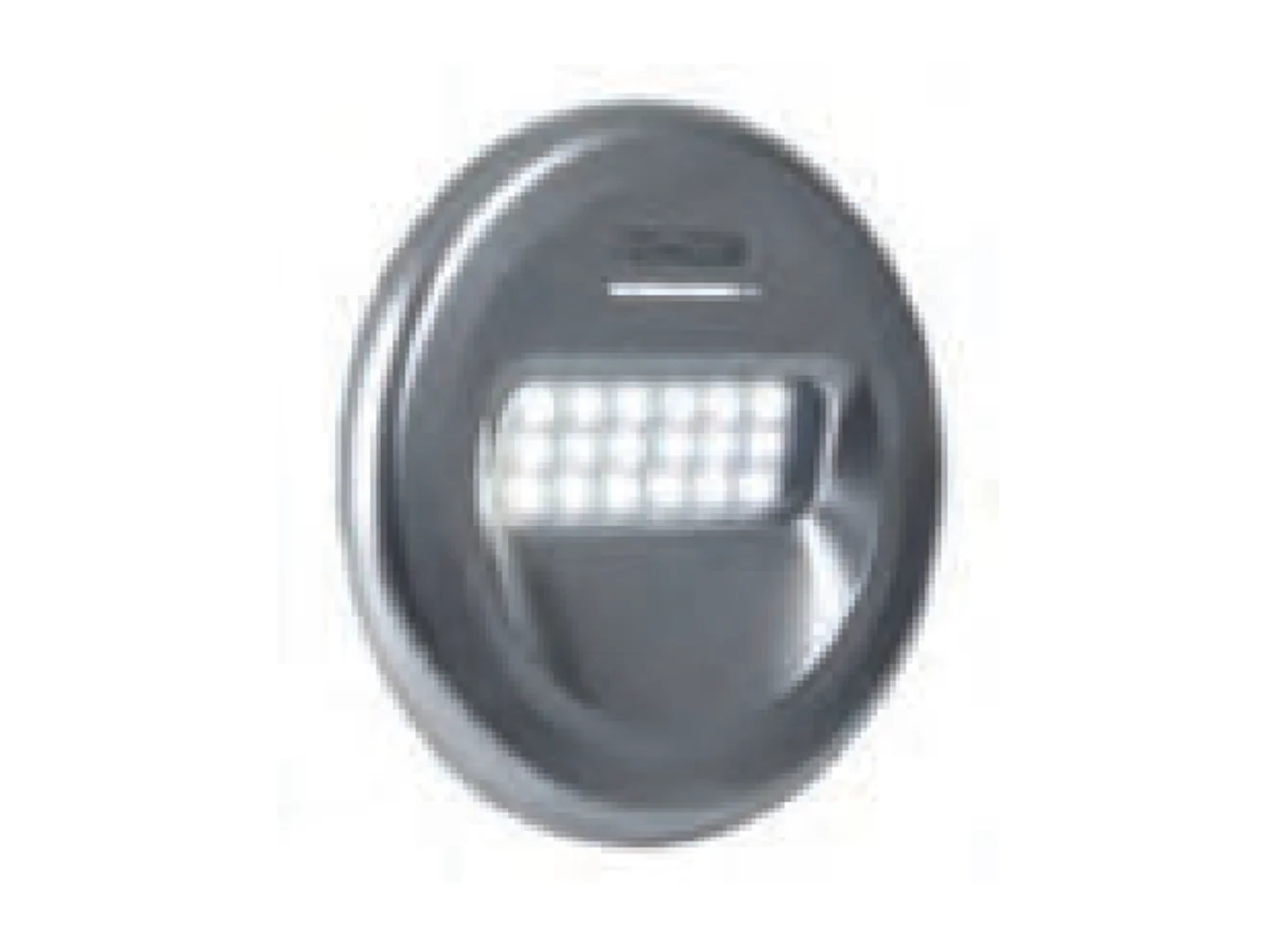

LumiPlus Design is a high-power projector with a distinctive look thanks to its visible LED array. The frame is available in stainless-steel effect and pure white. The projector comes in three light types: white 5700 K, warm white 3000 K and multicolour RGB. White versions deliver 4,320 lm at 32 W (35 VA) with energy class D; RGB versions deliver 2,500 lm at 32 W (42 VA).
The RGB versions are compatible with the LumiPlus Connect controller (76290) and the LumiPlus RGB ECO push button (32458). The 59813 niche is used in concrete pools, and the 59814 (with gasket) or 59815 (without gasket) niche in concrete + liner pools; a 59818 threaded fixing kit is available for existing Ø180 mm niches.
