Pool Lighting

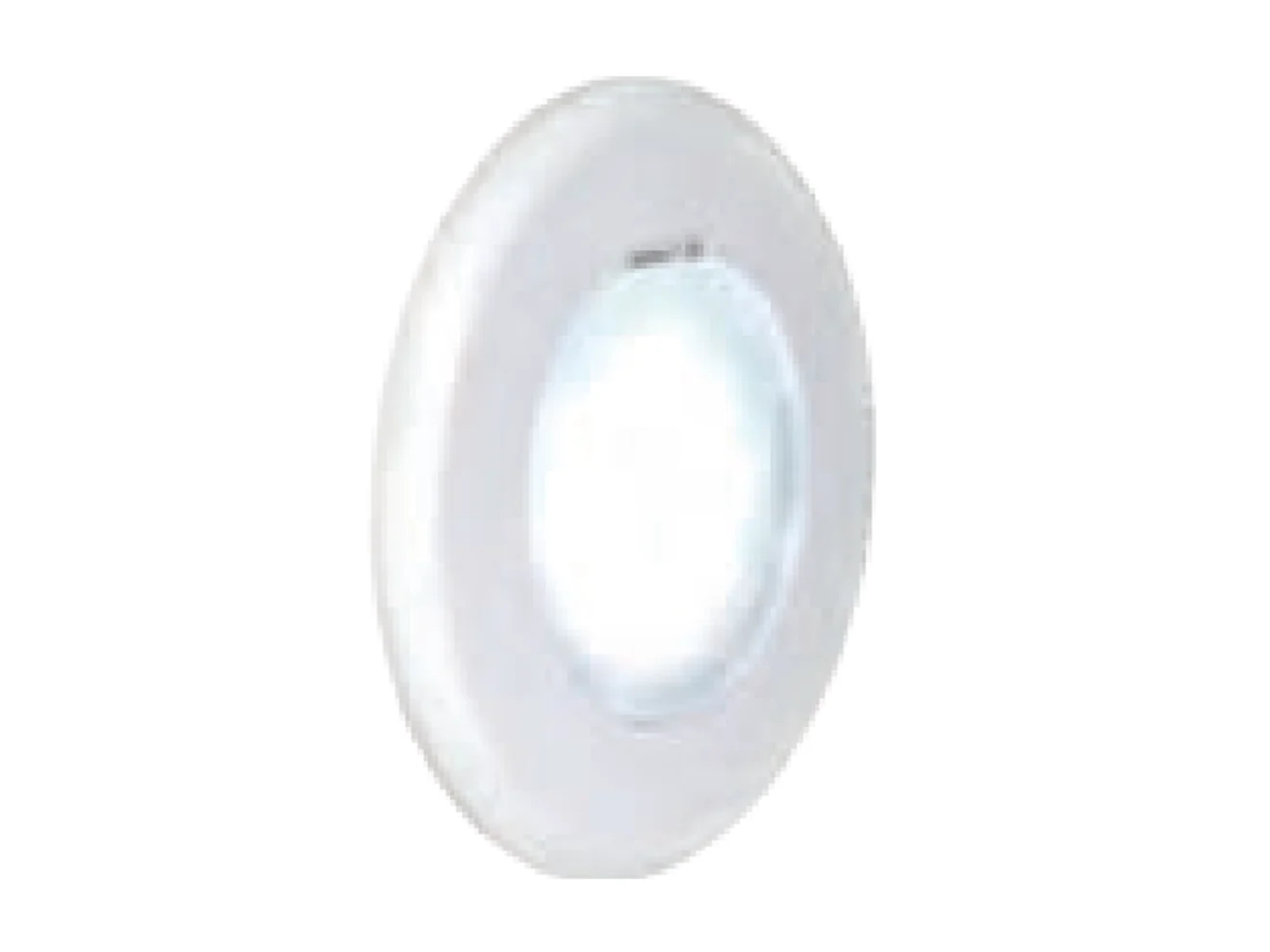

Complete LumiPlus Flexi projectors supplied with lamp and fixing system together, in FlexiNiche (Ø180–230 mm niche), FlexiSlim (surface mount) and FlexiRapid (1½" nozzle) types. Plug&Play RGB versions deliver 2,000 lm and On/Off white versions 2,750 lm; kits with remote are available.
FlexiNiche Plug&Play · RGB · IP68, EU 2019/2015
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Mounting types | FlexiNiche: Ø180–230 mm niche · FlexiSlim: surface · FlexiRapid: 1½" nozzle |
|---|---|
| Frame colour | White |
| Plug&Play | RGB, 34.5 W (45 VA), 2,000 lm |
| On/Off | White 5700 K, 28 W (40 VA), 2,750 lm |
| Supply | 12 V AC (On/Off: 24 V DC option) |
Values by order code
| Order code | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Power (W) | 34.5 | 34.5 | 34.5 | 34.5 | 34.5 | 34.5 | 28 | 28 | 28 |
| Apparent power (VA) | 45 | 45 | 45 | 45 | 45 | 45 | 40 | 40 | 40 |
| Luminous flux (lm) | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2750 | 2750 | 2750 |
| Energy class | G | G | G | G | G | G | F | F | F |
| Order code | Variant description | Certifications |
|---|---|---|
| 76582M | FlexiNiche Plug&Play · RGB | IP68, EU 2019/2015 |
| 76584M | FlexiSlim Plug&Play · RGB | IP68, EU 2019/2015 |
| 76586M | FlexiRapid Plug&Play · RGB | IP68, EU 2019/2015 |
| 76583M | FlexiNiche Plug&Play · + remote control | IP68, EU 2019/2015 |
| 76585M | FlexiSlim Plug&Play · + remote control | IP68, EU 2019/2015 |
| 76587M | FlexiRapid Plug&Play · + remote control | IP68, EU 2019/2015 |
| 76576 | FlexiNiche On/Off · White | IP68, EU 2019/2015 |
| 76577 | FlexiSlim On/Off · White | IP68, EU 2019/2015 |
| 76578 | FlexiRapid On/Off · White | IP68, EU 2019/2015 |
Complete LumiPlus Flexi projectors supplied with lamp and fixing system together, in FlexiNiche (Ø180–230 mm niche), FlexiSlim (surface mount) and FlexiRapid (1½" nozzle) types. Plug&Play RGB versions deliver 2,000 lm and On/Off white versions 2,750 lm; kits with remote are available.
There are three types of LumiPlus Flexi projector: FlexiNiche fits any niche with an internal diameter between 180 and 230 mm; FlexiSlim can be surface-mounted in new pools or fitted onto existing AstralPool surface fittings; FlexiRapid is compatible with any 1½" female-threaded nozzle. This lets the same lamp family be used in both new-build and renovation projects.
Plug&Play projectors work with an intuitive RGB control system that needs nothing added to the electrical panel and are compatible with the Plug&Play remote (74399); they can be chosen with or without the remote. On/Off projectors are 5700 K single-colour white projectors running on 12 V AC or 24 V DC; 24 V DC versions include a power pack.
