Pool Lighting

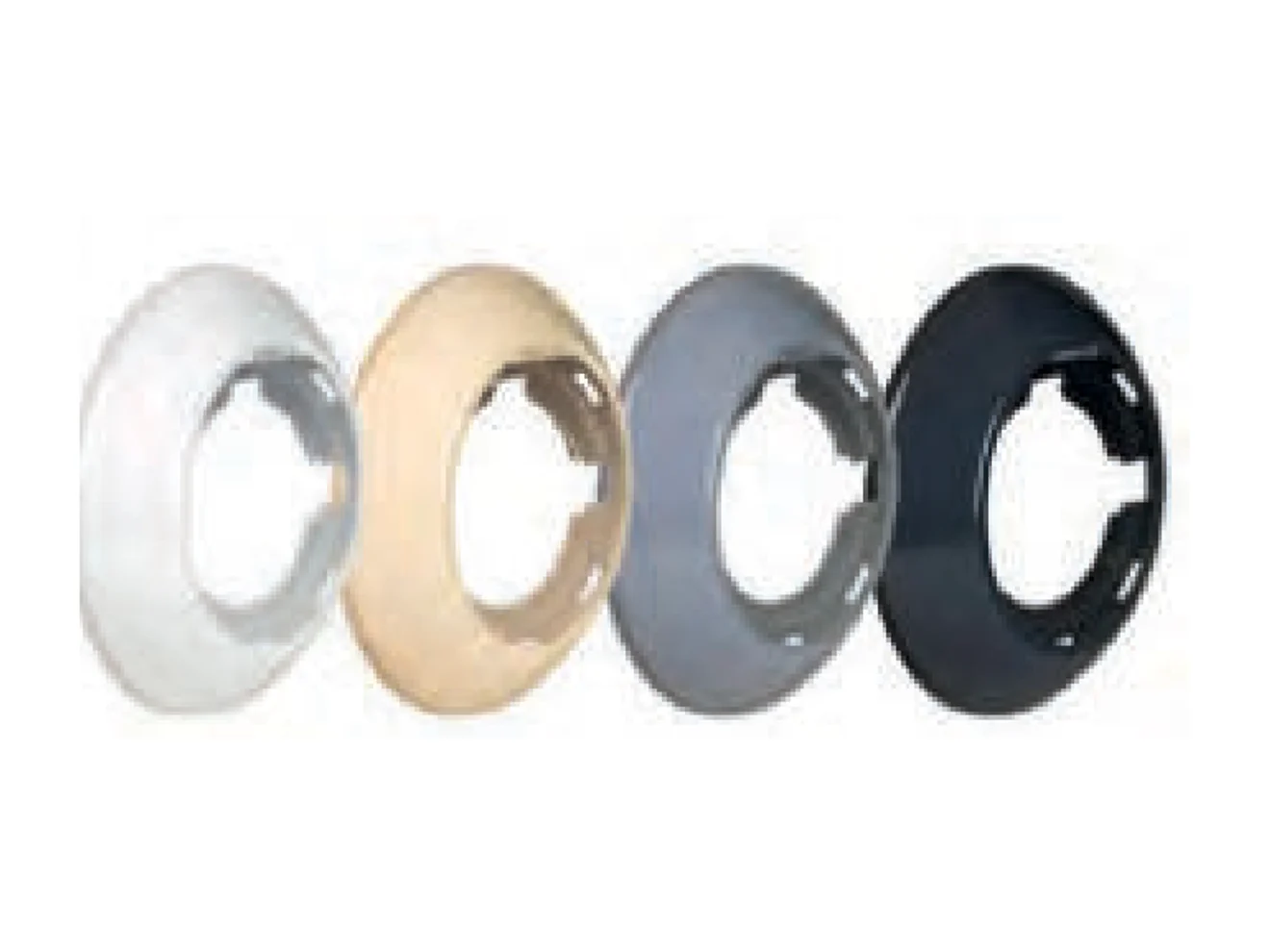

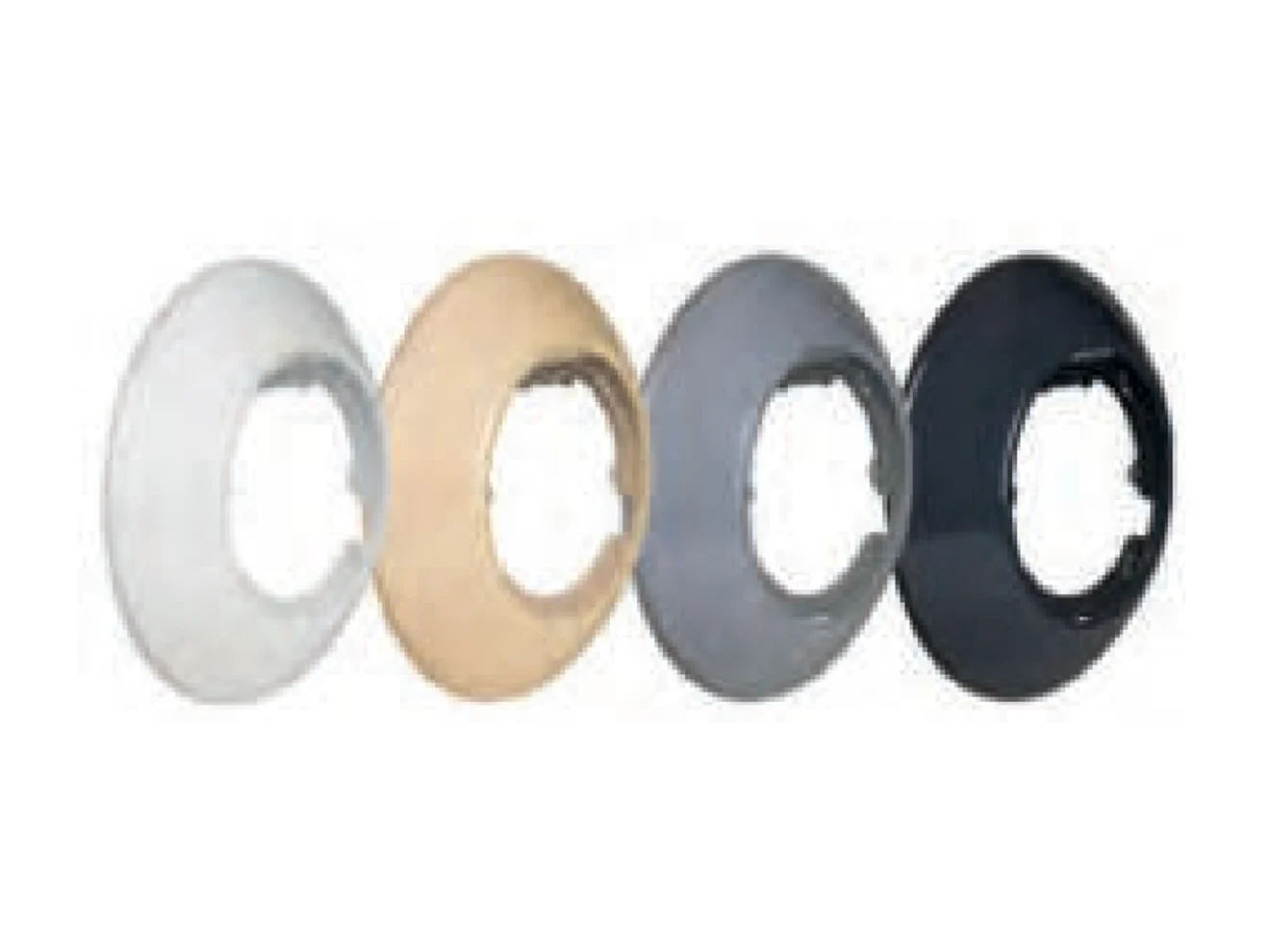

FlexiNiche, FlexiSlim, FlexiRapid and the minimalist FlexiPure fixing systems that define the mounting method and look of LumiPlus Flexi lamps. Frames are offered in white, beige, grey, anthracite and stainless steel, for Ø180–230 mm niche, surface or 1½" nozzle mounting.
FlexiNiche · White
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| FlexiNiche | Ø180–230 mm niche, frame Ø294 × 20 mm (stainless Ø310 × 20 mm) |
|---|---|
| FlexiSlim | Surface mount, frame Ø290 × 51 mm |
| FlexiRapid | 1½" female nozzle, frame Ø267 × 40 mm |
| FlexiPure | Concrete: niche 59813 · Liner: niche 77579 |
| Colours | White, beige, grey, anthracite, stainless steel |
Values by model
| Model | ||||
|---|---|---|---|---|
| Frame size (mm) | Ø294 × 20 | Ø290 × 51 | Ø267 × 40 | – |
| Connection | Ø180–230 | — | 1½" | Ø180 |
| Order code | Variant description | Certifications |
|---|---|---|
| 71209 | FlexiNiche · White | — |
| 71209CL090 | FlexiNiche · Beige | — |
| 71209CL129 | FlexiNiche · Grey | — |
| 71209CL144 | FlexiNiche · Anthracite | — |
| 71209CLSS | FlexiNiche · Stainless steel ring + ABS | — |
| 73440 | FlexiNiche · Fully stainless steel | — |
| 71210 | FlexiSlim · White | — |
| 71210CL090 | FlexiSlim · Beige | — |
| 71210CL129 | FlexiSlim · Grey | — |
| 71210CL144 | FlexiSlim · Anthracite | — |
| 71211 | FlexiRapid · White | — |
| 71211CL090 | FlexiRapid · Beige | — |
| 71211CL129 | FlexiRapid · Grey | — |
| 71211CL144 | FlexiRapid · Anthracite | — |
| 77572 | FlexiPure · Concrete pool · niche 59813 | — |
| 77573 | FlexiPure · Liner pool · niche 77579 | — |
FlexiNiche, FlexiSlim, FlexiRapid and the minimalist FlexiPure fixing systems that define the mounting method and look of LumiPlus Flexi lamps. Frames are offered in white, beige, grey, anthracite and stainless steel, for Ø180–230 mm niche, surface or 1½" nozzle mounting.
The FlexiNiche fixing system fits any niche from Ø180 mm to Ø230 mm; the frame measures Ø294 × 20 mm, or Ø310 × 20 mm in the fully stainless steel version. A stainless steel ring + ABS body option is also available. FlexiSlim is surface-mounted in new pools or clipped onto existing AstralPool surface fittings; its frame is Ø290 × 51 mm. FlexiRapid fits any 1½" female-threaded nozzle; its frame is Ø267 × 40 mm.
Introduced in 2026, FlexiPure is a minimalist frame for the Flexi lamp: in concrete pools the 77572 frame is used with the 59813 niche, and in liner pools the 77573 frame with the 77579 niche. Frame colours are chosen to match the pool finish; the lamp is always ordered separately.
