Pool Lighting

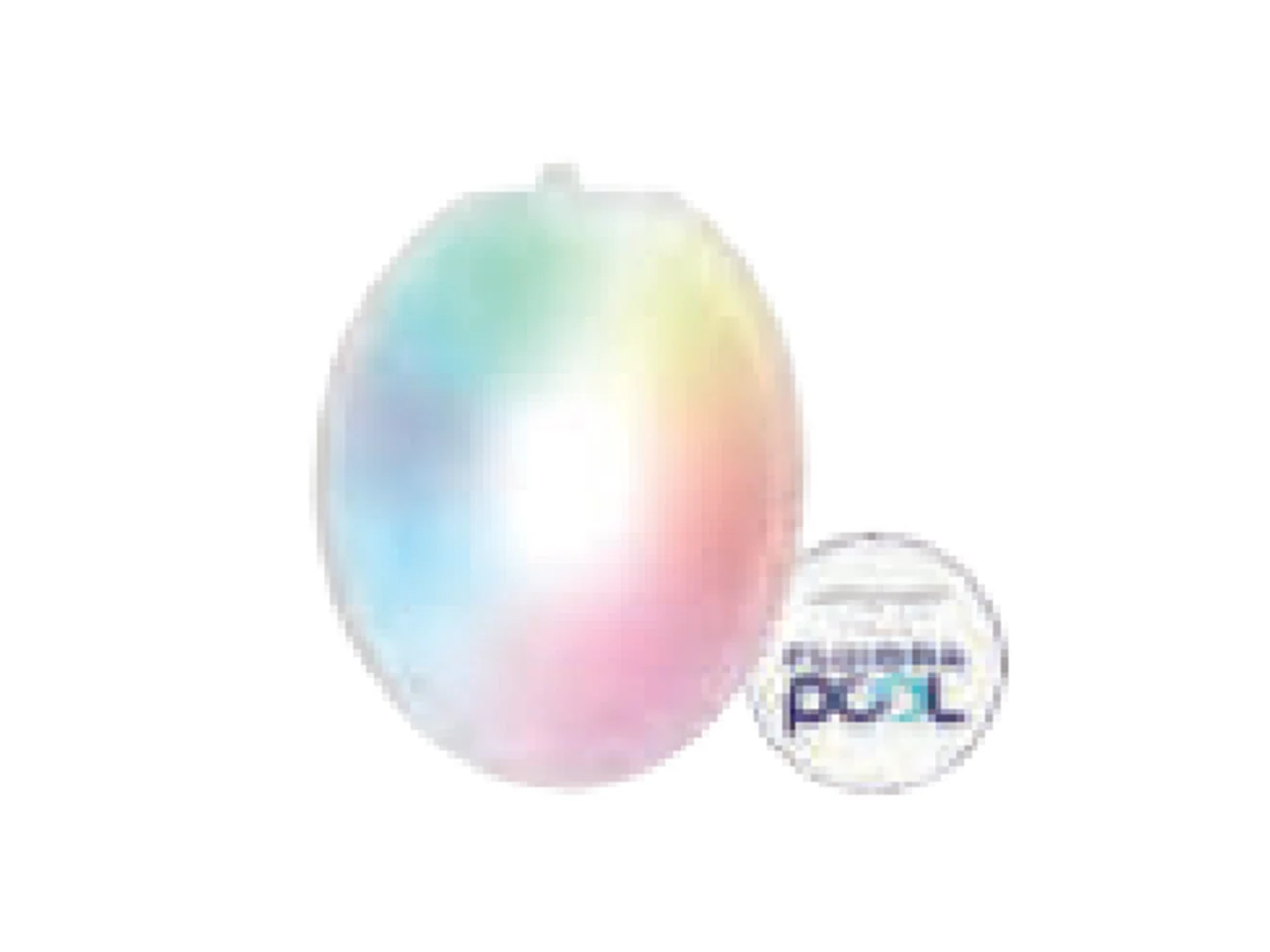

LumiPlus Flexi Connect are pool LED lamps in white, warm white, tunable white (2500–6000 K), RGB and RGBW versions with 2,000–4,300 lm luminous flux. They run on 12 V AC, come with a 2.5 m cable and are controlled through the LumiPlus Connect controller (76290) and the Fluidra Pool app.
White · 2.750 lm · IP68, EU 2019/2015
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Supply | 12 V AC |
|---|---|
| Light options | White, warm white, tunable white, RGB, RGBW |
| Colour temperature | 5700 K / 3000 K / 2500–6000 K |
| Luminous flux | 2.000 – 4.300 lm |
| Power | 27 – 56 W (38 – 72 VA) |
| Cable | 2,5 m |
| Control | LumiPlus Connect 76290 (required) |
Values by order code
| Order code | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Power (W) | 27 | 27 | 27 | 34.5 | 38 | 42 | 42 | 42 | 56 |
| Apparent power (VA) | 38 | 38 | 38 | 45 | 49 | 60 | 60 | 60 | 72 |
| Luminous flux (lm) | 2750 | 2750 | 2750 | 2000 | 2500 | 4300 | 4300 | 4300 | 3500 |
| Energy class | E | E | E | G | G | E | E | E | G |
| Order code | Variant description | Certifications |
|---|---|---|
| 76600 | White · 2.750 lm | IP68, EU 2019/2015 |
| 76600WW | Warm white · 2.750 lm | IP68, EU 2019/2015 |
| 76600TW | Tunable white · 2.750 lm | IP68, EU 2019/2015 |
| 76600M | RGB · 2.000 lm | IP68, EU 2019/2015 |
| 76600MW | RGBW · 2.500 lm | IP68, EU 2019/2015 |
| 76601 | White · 4.300 lm | IP68, EU 2019/2015 |
| 76601WW | Warm white · 4.300 lm | IP68, EU 2019/2015 |
| 76601TW | Tunable white · 4.300 lm | IP68, EU 2019/2015 |
| 76601MW | RGBW · 3.500 lm | IP68, EU 2019/2015 |
LumiPlus Flexi Connect are pool LED lamps in white, warm white, tunable white (2500–6000 K), RGB and RGBW versions with 2,000–4,300 lm luminous flux. They run on 12 V AC, come with a 2.5 m cable and are controlled through the LumiPlus Connect controller (76290) and the Fluidra Pool app.
LumiPlus Flexi projectors consist of two components: the LED lamp and a fixing system/frame chosen according to the mounting method. Flexi Connect lamps are the smart series of this system and give full control of the light. There are 2,750 lm (27 W, 38 VA) and 4,300 lm (42 W, 60 VA) white series, plus 2,000 lm RGB and 2,500 lm and 3,500 lm RGBW options. Colour temperatures: white 5700 K, warm white 3000 K, tunable white 2500–6000 K.
The lamps always operate with the LumiPlus Connect controller (76290); a Connect remote can be added optionally. With the FlexiNiche, FlexiSlim, FlexiRapid and FlexiPure fixing systems they are installed in a niche, on the surface or on a 1½" nozzle in concrete, liner and fibreglass pools. Made in Europe and compatible with salt-water pools.
