Pool Lighting
ABS Unik and Standard junction boxes and an AISI-316 stainless steel junction box for safely connecting underwater projector cables around the pool. They mount on Ø50 pipe or hose with M-25 threaded connections; ABS boxes come in white, beige, grey and anthracite.
Unik · White
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Material | ABS (Unik, Standard) · AISI-316 (stainless) |
|---|---|
| Mounting | Ø50 pipe or hose |
| Threaded connections | M-25 (stainless: 2 × PG16–M25, bottom 3/4" BSP) |
| Colours (ABS) | White, beige, grey, anthracite |
Values by model
| Model | |||
|---|---|---|---|
| Standard pack (pcs) | 12 | 12 | 20 |
| Pack weight (kg) | 6.692 | 5.3 | 12.3 |
| Order code | Variant description | Certifications |
|---|---|---|
| 75971 | Unik · White | — |
| 75971CL090 | Unik · Beige | — |
| 75971CL129 | Unik · Grey | — |
| 75971CL144 | Unik · Anthracite | — |
| 75972 | Standard · White | — |
| 75972CL090 | Standard · Beige | — |
| 75972CL129 | Standard · Grey | — |
| 75972CL144 | Standard · Anthracite | — |
| 00393 | Stainless steel · AISI-316 | — |
ABS Unik and Standard junction boxes and an AISI-316 stainless steel junction box for safely connecting underwater projector cables around the pool. They mount on Ø50 pipe or hose with M-25 threaded connections; ABS boxes come in white, beige, grey and anthracite.

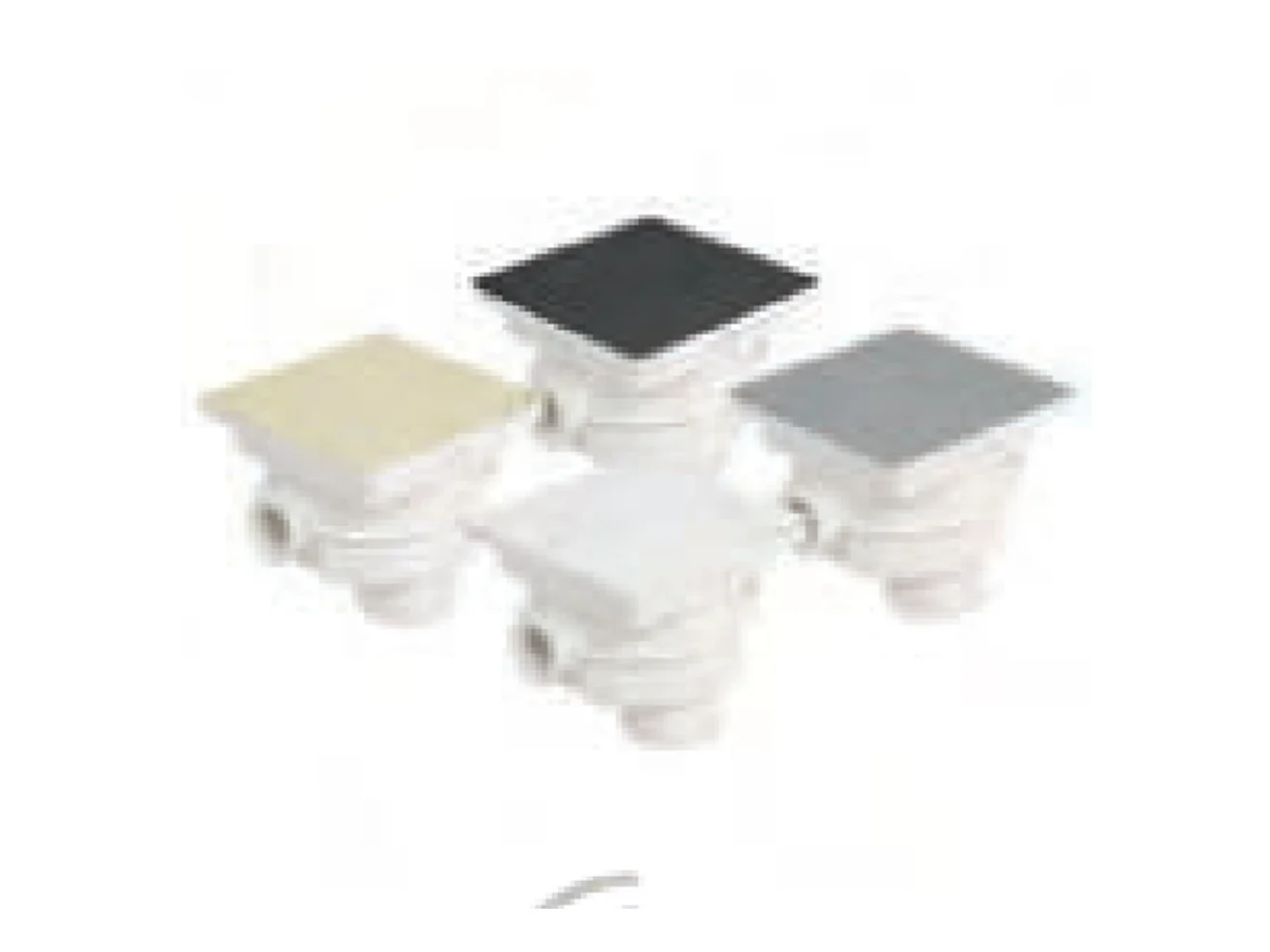

Unik junction boxes are made of ABS and have a lid that can be tiled, designed to blend into the pool surround. Standard junction boxes are also ABS and come in white, beige, grey and anthracite. Both types can be mounted on Ø50 pipe or hose; all threaded connections are M-25 and easy to handle after installation.

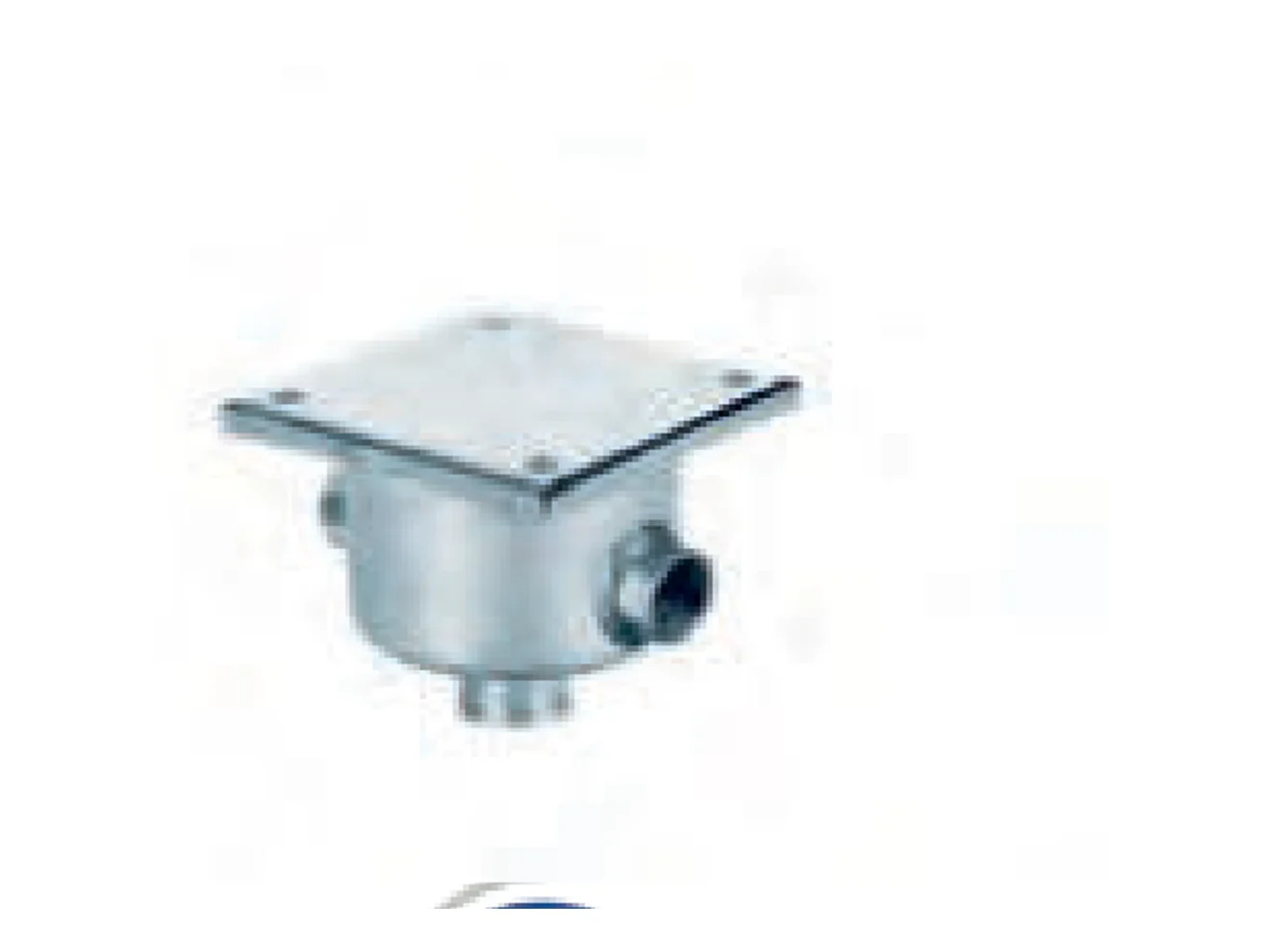

The stainless steel junction box is made of AISI-316 stainless steel, with two side outlets with PG16–M25 adapters and a 3/4" BSP threaded bottom connection. The junction box is the connection point above water level where the projector cable arrives from the niche through the cable hose, protecting the connection between the transformer line and the projector.
