Pool Lighting
Connection accessories for underwater lighting installations: H07RN-F lamp cables (2×1.5 and 2×2.5 mm², 30 m), polyester resin connection kits, an IP68 underwater connector kit, flexible cable hoses between niche and junction box, an M25 socket and a cable gland cap.
Lamp cable · 2 × 1,5 mm² · 30 m · H07RN-F, IP68
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Lamp cable | H07RN-F · 2×1,5 / 2×2,5 mm² · 30 m |
|---|---|
| Resin kit | Ø8–12 mm and Ø13–15 mm cables · immersion-ready in 2 h |
| Underwater connector | 4-pole, IP68, ≤ 2.5 mm² |
| Cable hose | 3/4" thread – M25 · 1 m / 1.5 m |
| Order code | Variant description | Certifications |
|---|---|---|
| 74673 | Lamp cable · 2 × 1,5 mm² · 30 m | H07RN-F, IP68 |
| 71649 | Lamp cable · 2 × 2,5 mm² · 30 m | H07RN-F, IP68 |
| 35661 | Resin connection kit · Ø8–12 mm | H07RN-F, IP68 |
| 32803 | Resin connection kit · Ø13–15 mm | H07RN-F, IP68 |
| 71318 | Underwater connection kit · 5 connectors + 2 keys | H07RN-F, IP68 |
| 28138 | Flexible cable hose · 3/4" – M25 · 100 cm | H07RN-F, IP68 |
| 28138-150 | Flexible cable hose · 3/4" – M25 · 150 cm | H07RN-F, IP68 |
| 10892-0404 | M25 socket connection · M25 | H07RN-F, IP68 |
| 65286 | Watertight cable gland cap · Ø50 mm | H07RN-F, IP68 |
| 59818 | LumiPlus Design threaded fixing kit · Ø180 mm niche | H07RN-F, IP68 |
Connection accessories for underwater lighting installations: H07RN-F lamp cables (2×1.5 and 2×2.5 mm², 30 m), polyester resin connection kits, an IP68 underwater connector kit, flexible cable hoses between niche and junction box, an M25 socket and a cable gland cap.

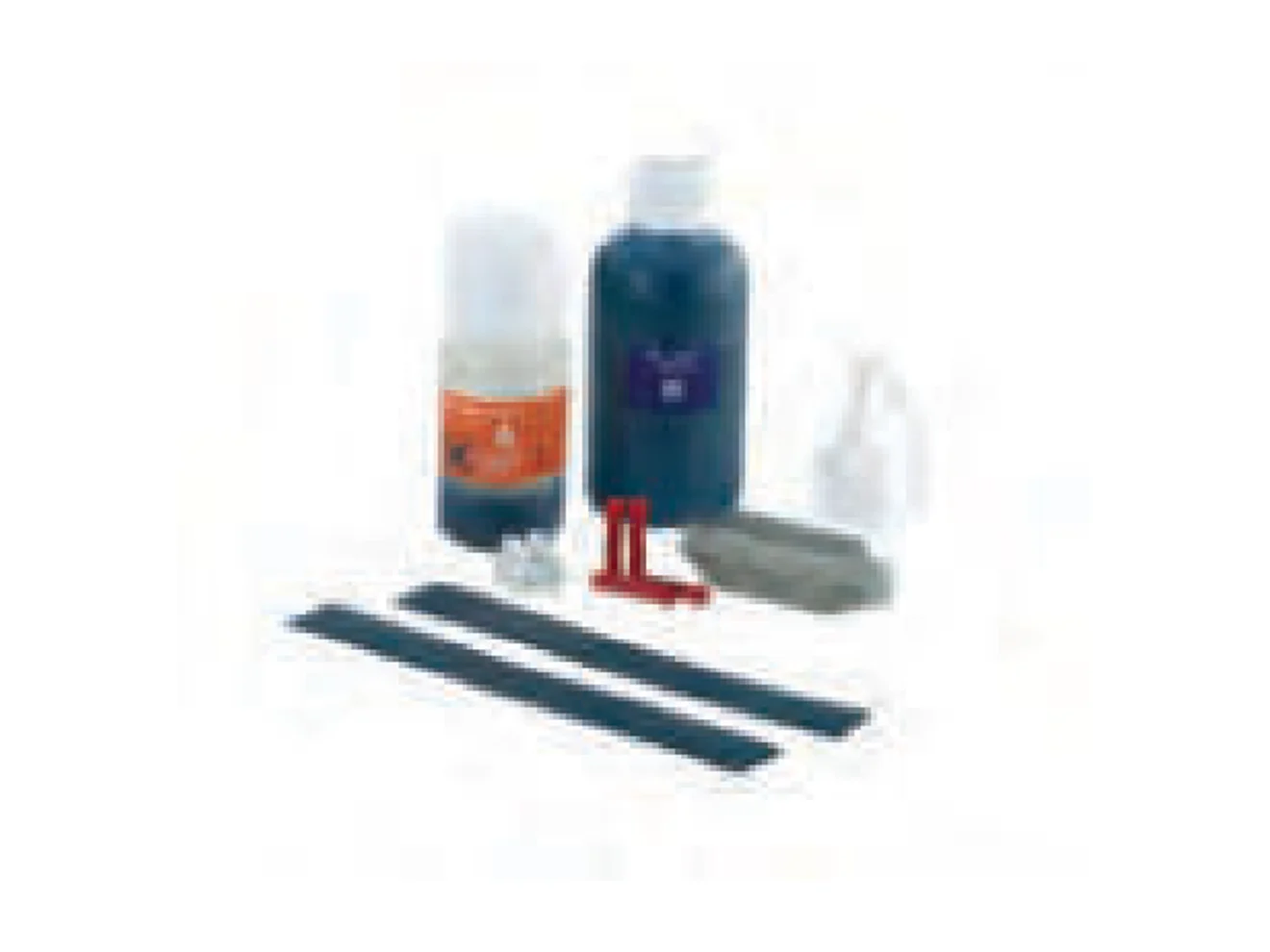

Lamp cables are H07RN-F cables designed in accordance with underwater lighting regulations; they are supplied on 30 m reels in 2×1.5 mm² and 2×2.5 mm² cross-sections. The polyester-based underwater connection kits contain all the components needed to make any watertight connection; owing to the product's properties the resin closes all voids, providing maximum safety and easy installation, and is ready for immersion within 2 hours (for Ø8–12 mm and Ø13–15 mm cables).

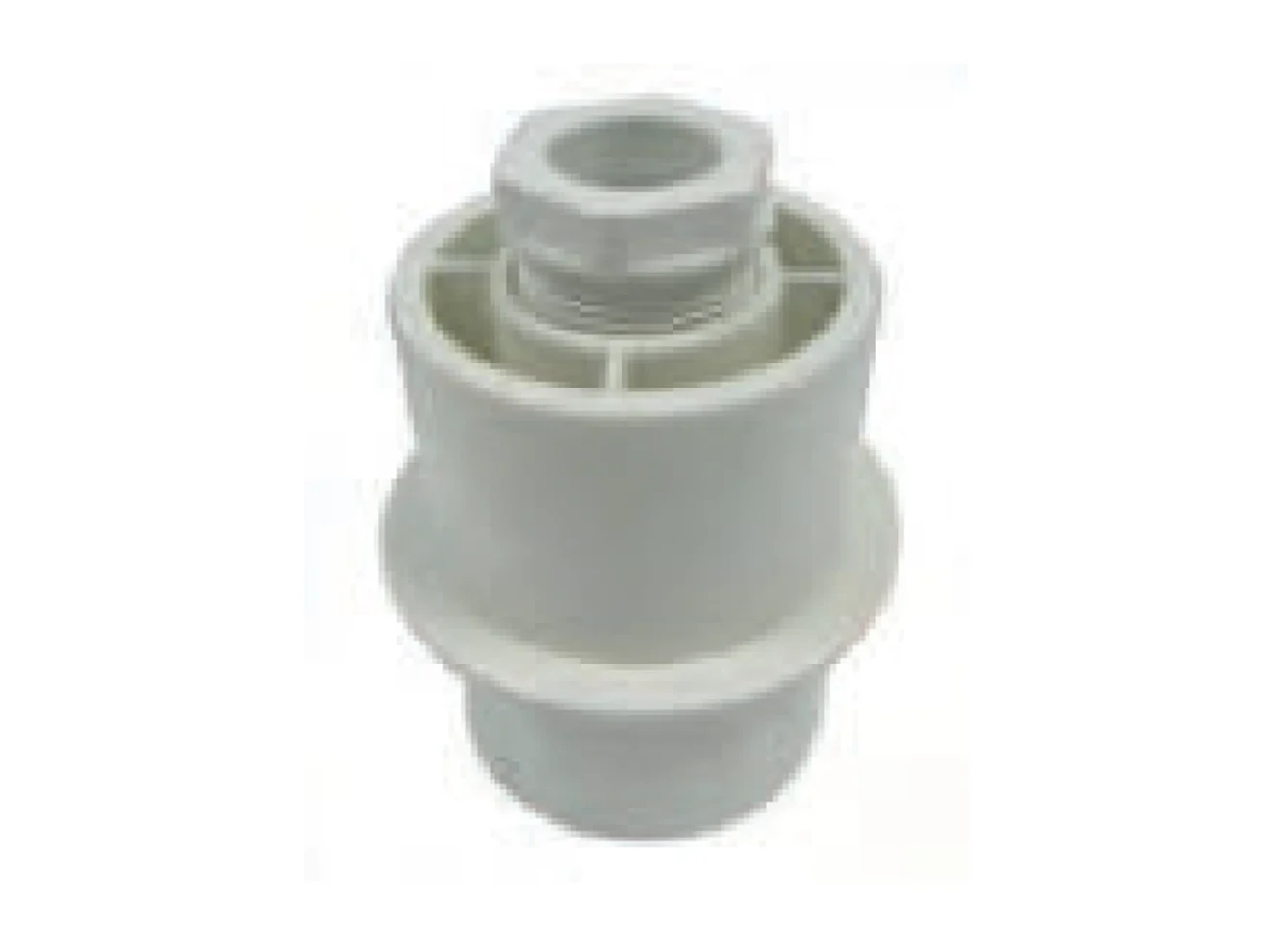

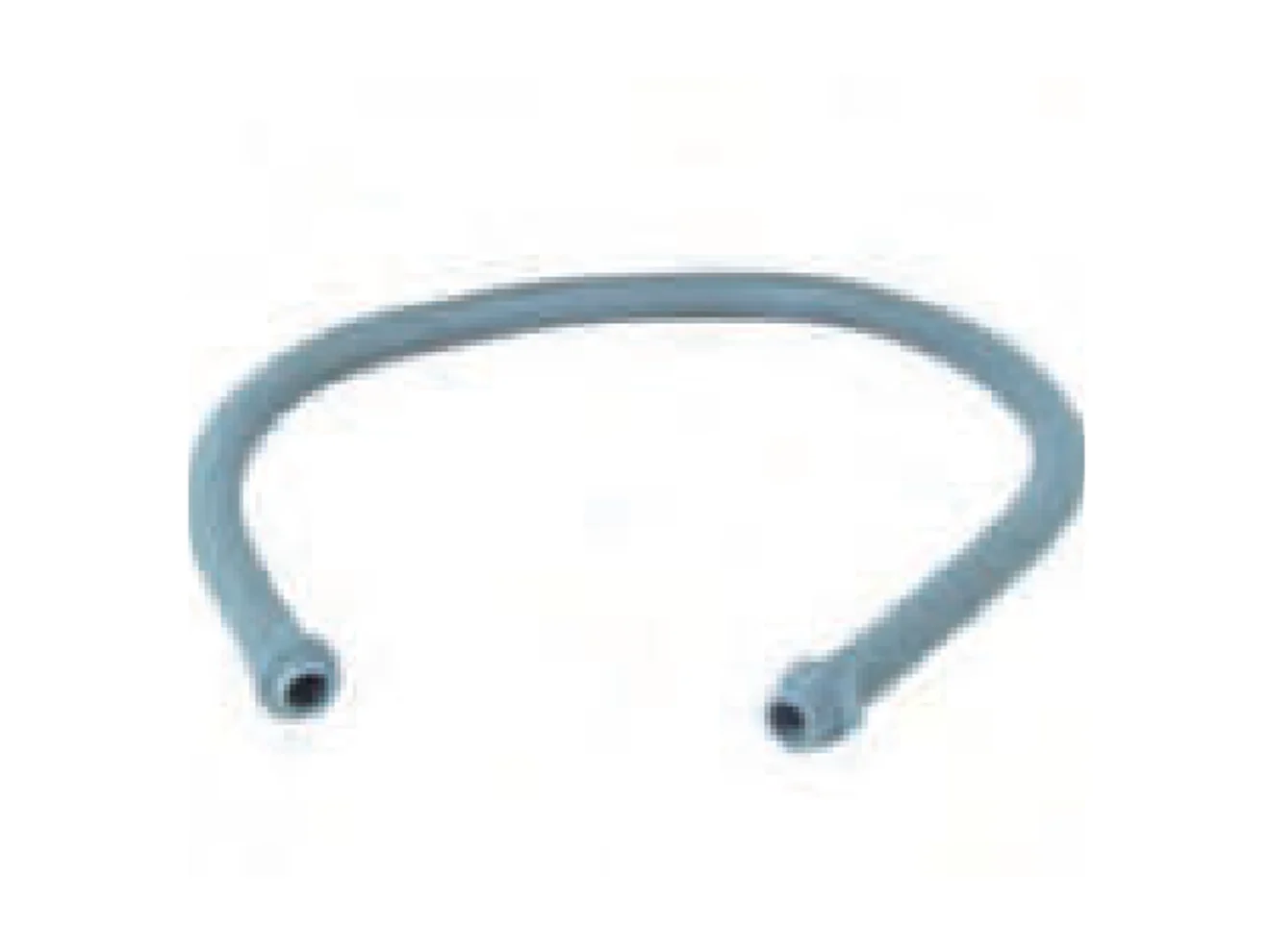

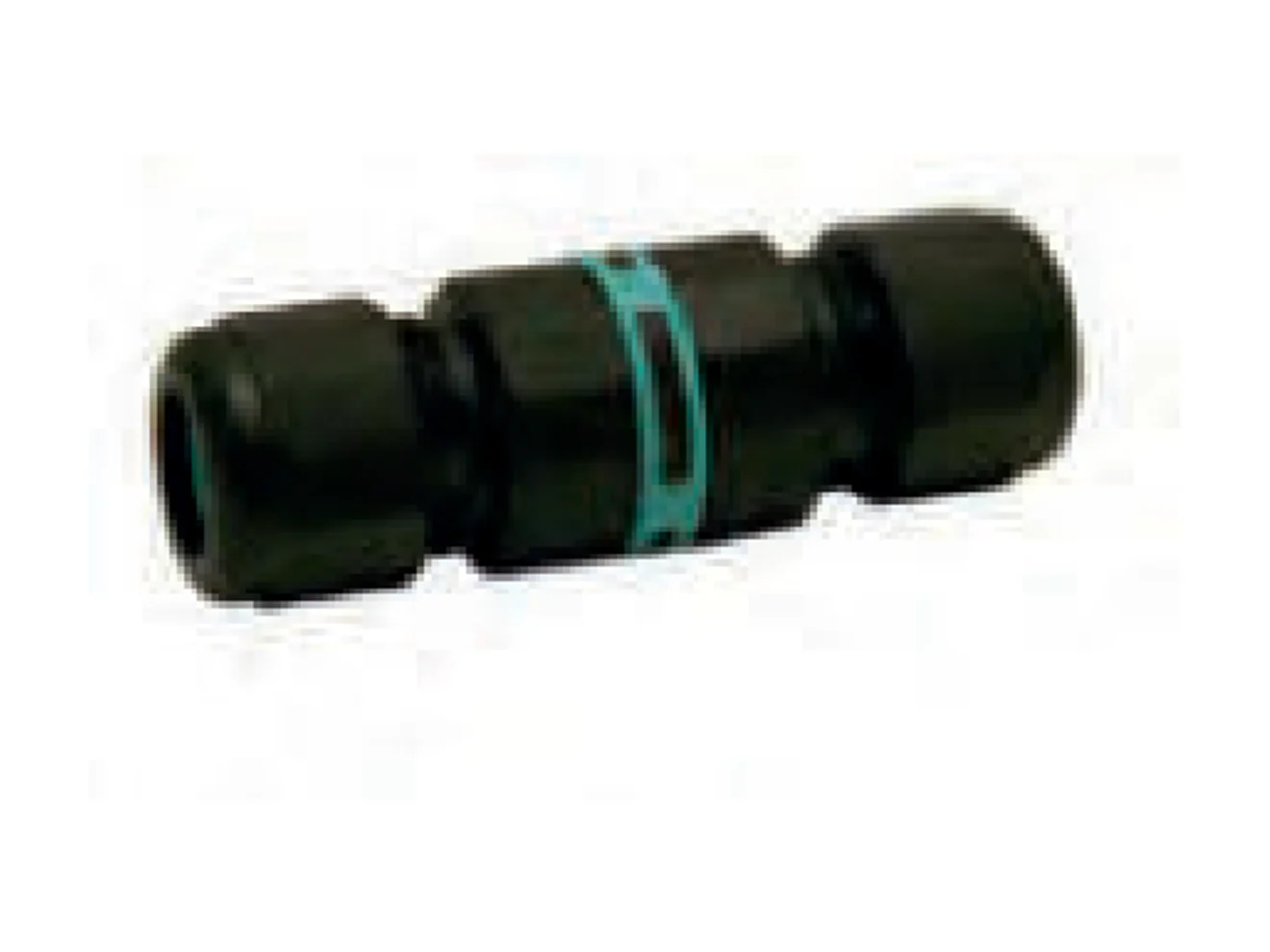

The underwater connection kit contains 5 underwater connectors and 2 keys; the connectors are 4-pole, rated IP68 and accept cable cross-sections up to 2.5 mm². The flexible cable hose is the cable conduit connecting the light niche to the junction box; its ends are 3/4" threaded and M25, and it comes in 1 m and 1.5 m lengths. There is also a watertight cable gland cap glued onto Ø50 mm pipe and a threaded fixing kit for adapting LumiPlus Design projectors to existing Ø180 mm niches.
