Pool Lighting
ABS and AISI-316 stainless steel niches for LumiPlus and halogen projectors: 230 mm for FlexiKovan and PAR56, 180 mm for Flexi and Design, plus FlexiPure, FlexiMini Pure and mini niches. Available with or without gasket for concrete, liner and fibreglass pools.
230 mm · Concrete pool · without gasket
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| 230 mm niche | FlexiKovan, PAR56 · ABS |
|---|---|
| 180 mm niche | FlexiKovan, Design, FlexiPure · ABS |
| Stainless niche | AISI-316 · fully stainless FlexiKovan |
| Mini niche | FlexiMini, Essential Mini · brass inserts |
| Pool type | Concrete, liner, fibreglass |
Values by model
| Model | ||||||
|---|---|---|---|---|---|---|
| Internal diameter (mm) | 230 | 180 | 180 | – | – | – |
| Material | ABS | ABS | ABS | AISI-316 | ABS | ABS |
| Order code | Variant description | Certifications |
|---|---|---|
| 00349 | 230 mm · Concrete pool · without gasket | — |
| 17805 | 230 mm · Liner pool · with gasket | — |
| 00364 | 230 mm · Fibreglass / liner pool · with gasket | — |
| 59814 | 180 mm · Fibreglass / liner pool · with gasket | — |
| 59813 | FlexiPure 180 mm · Concrete pool · without gasket | — |
| 77579 | FlexiPure 180 mm · Liner pool · with gasket | — |
| 54102 | AISI-316 · Concrete pool · with gasket | — |
| 54103 | AISI-316 · Liner pool · with gasket | — |
| 06967 | Mini niche · Concrete pool | — |
| 00369 | Mini niche · Liner pool | — |
| 77575 | FlexiMini Pure · Concrete pool · flangeless | — |
| 77578 | FlexiMini Pure · Liner pool · flanged | — |
ABS and AISI-316 stainless steel niches for LumiPlus and halogen projectors: 230 mm for FlexiKovan and PAR56, 180 mm for Flexi and Design, plus FlexiPure, FlexiMini Pure and mini niches. Available with or without gasket for concrete, liner and fibreglass pools.

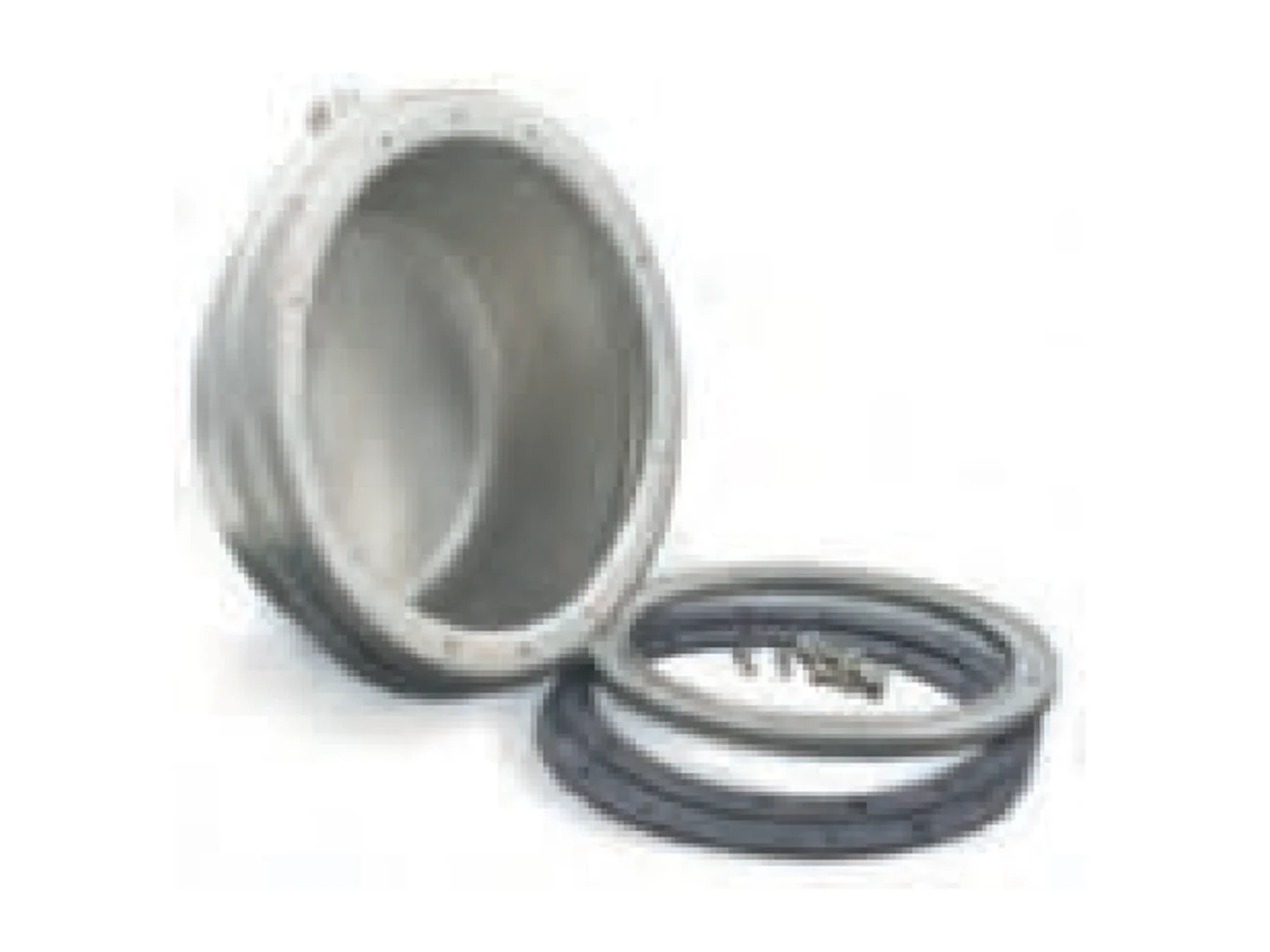

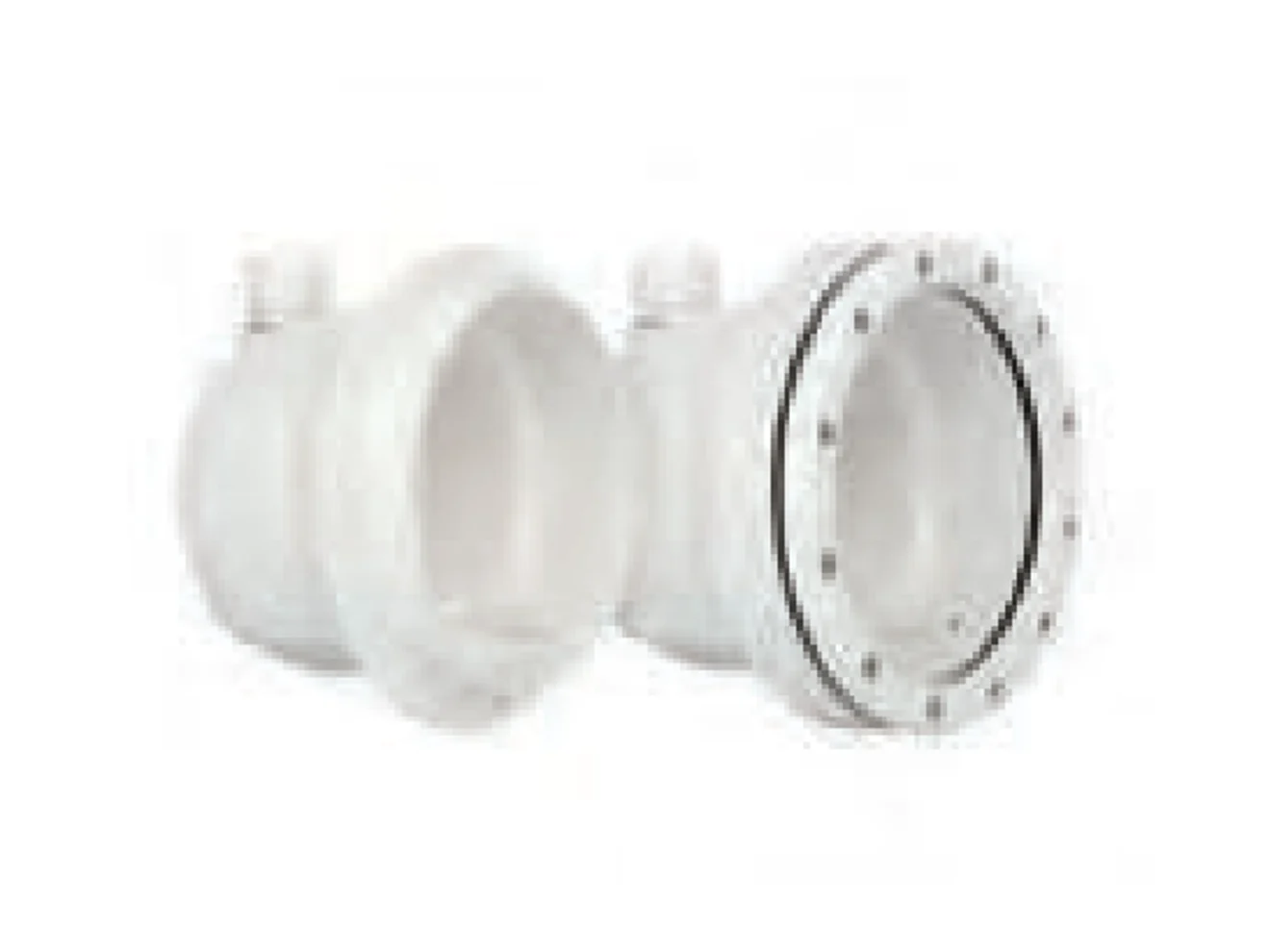

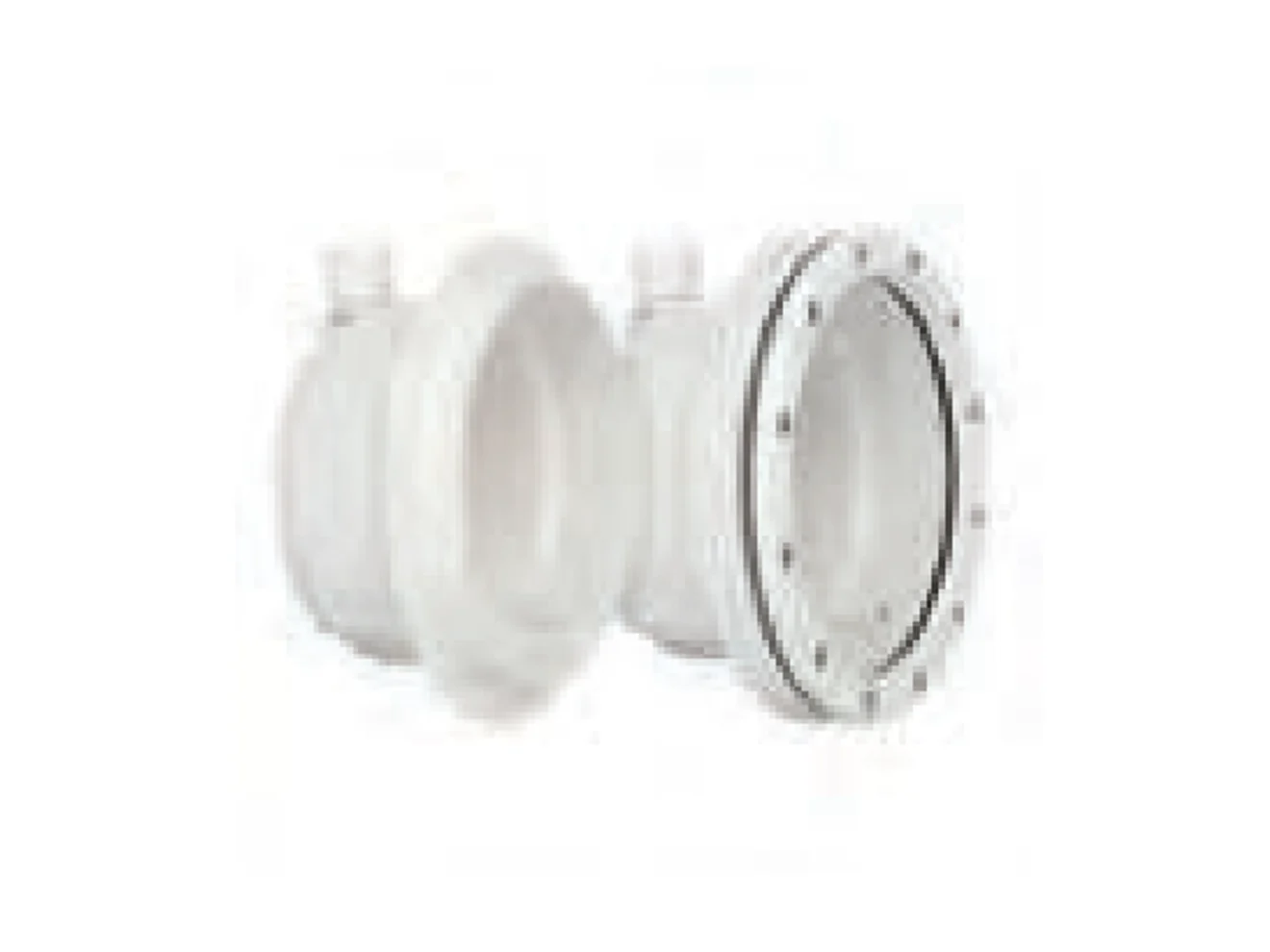

230 mm niches are ABS niches with a 230 mm internal diameter, compatible with FlexiKovan and PAR56 projectors; versions are available without gasket for concrete pools (00349), with gasket for liner pools (17805) and with gasket for fibreglass/liner (00364). The 180 mm niche (59814) is compatible with FlexiKovan and Design projectors and has a gasket for fibreglass and liner pools. Stainless steel niches are made of AISI-316 and match the fully stainless FlexiKovan projectors (73440).

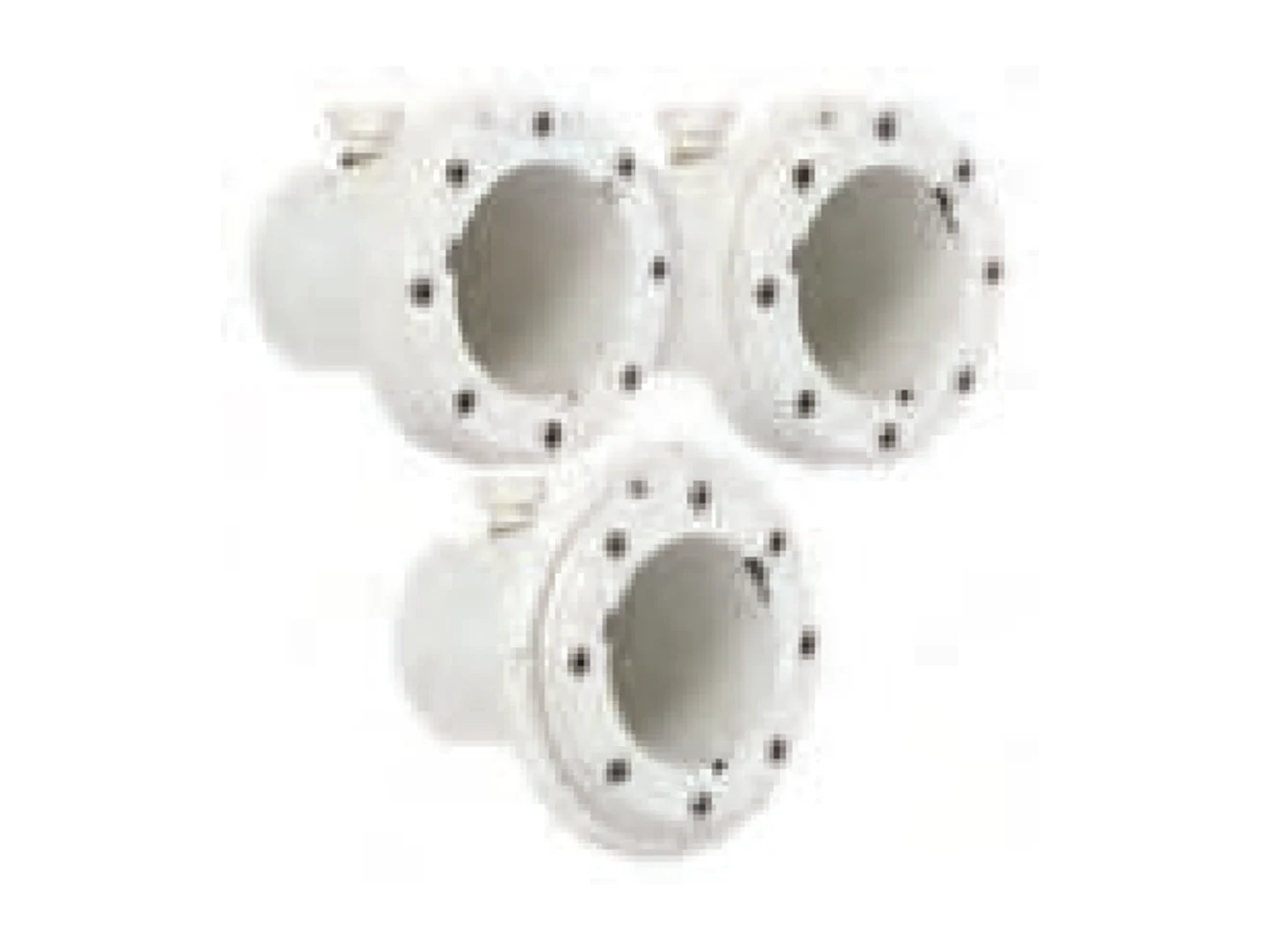

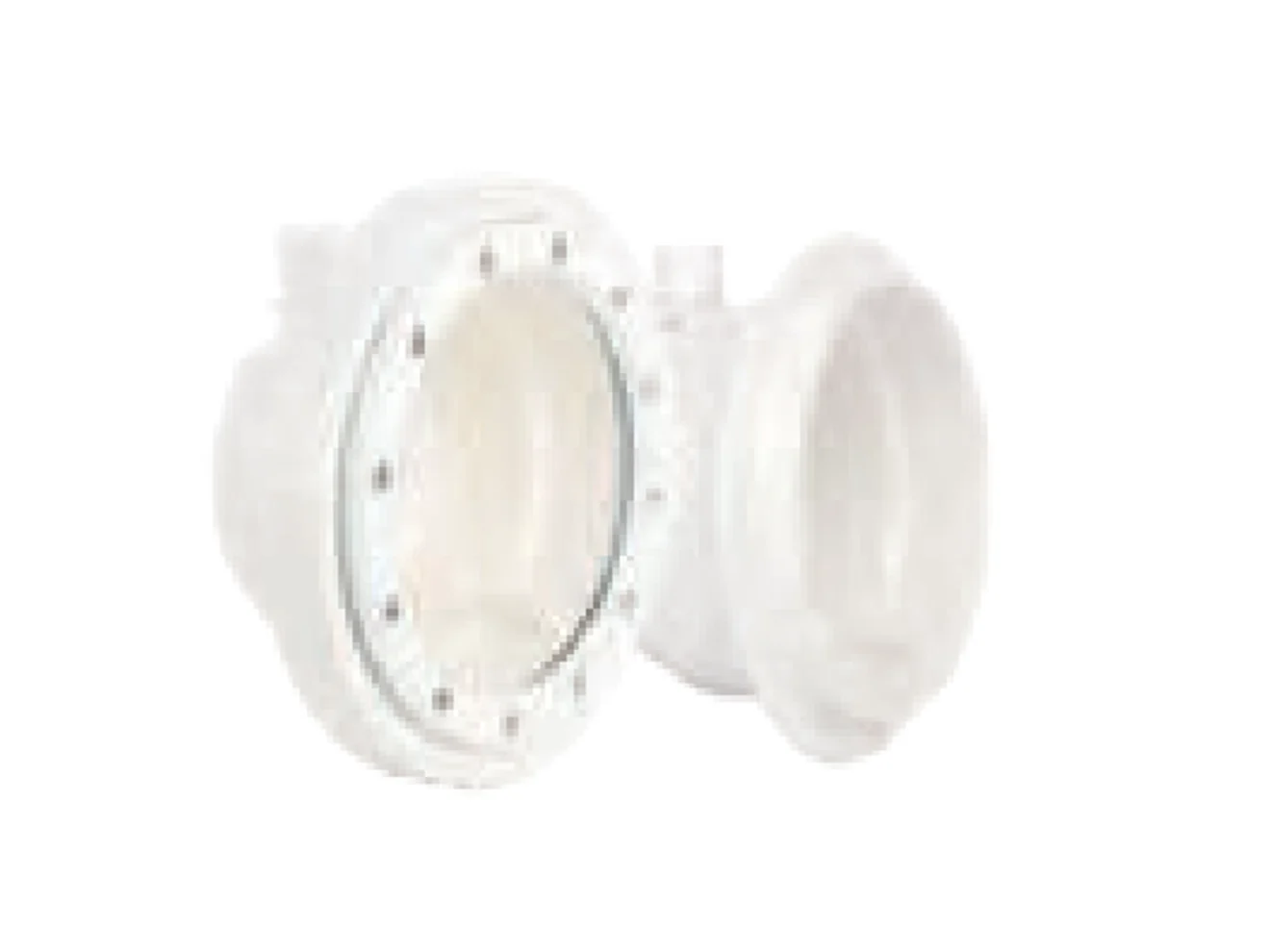

Mini niches are for FlexiMini Niche and Essential Mini projectors; the concrete pool (06967) and liner pool (00369) versions have brass inserts. FlexiPure niches have a 180 mm internal diameter: the 77572 frame fits the 59813 niche and the 77573 frame the 77579 niche. In FlexiMini Pure niches, the 77574 frame fits the 77575 niche (concrete, flangeless) and the 77576 polyester pool nozzle, while the 77577 frame fits the 77578 liner niche (flanged).
