Pool Lighting

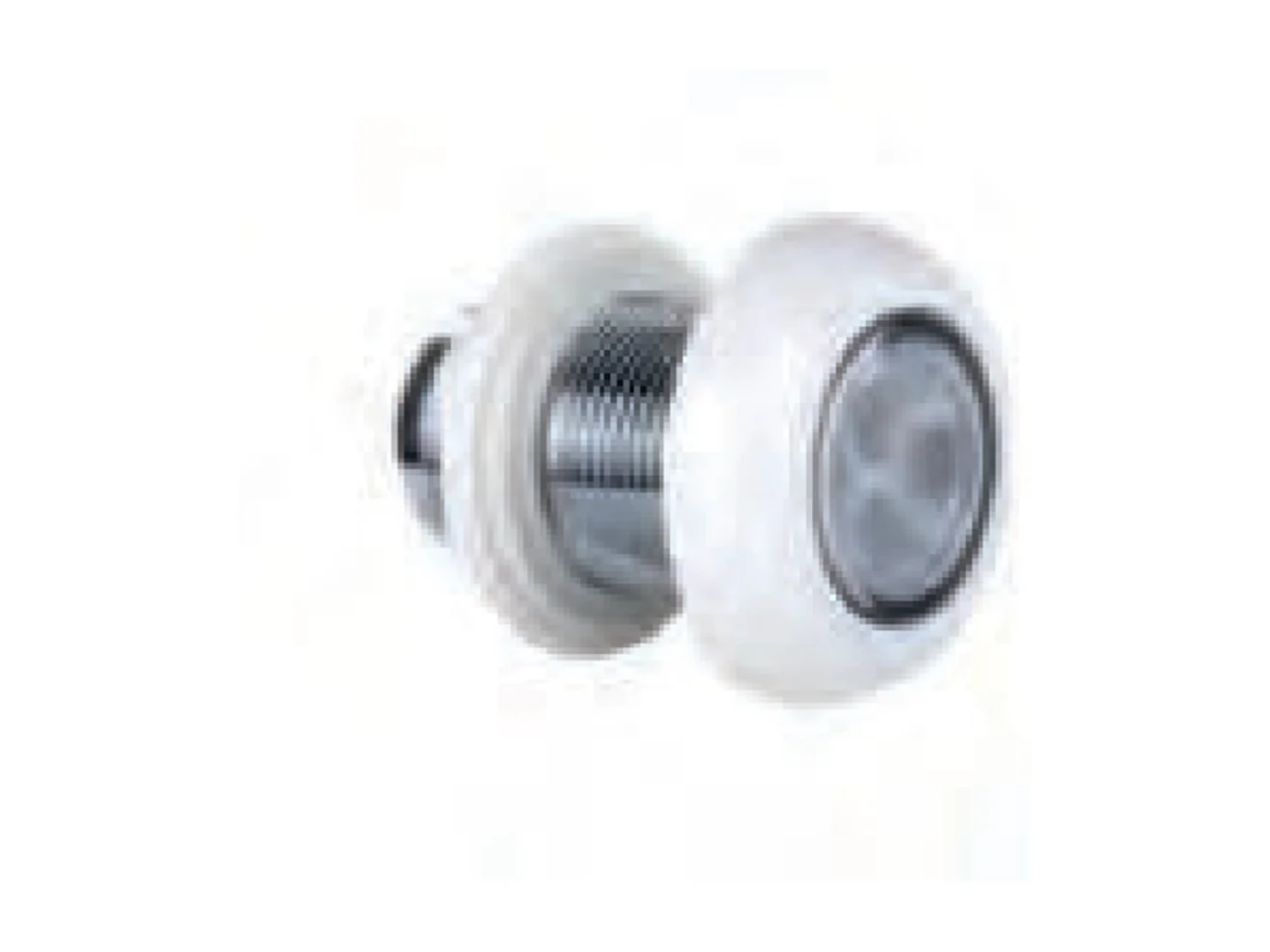

LumiPlus Mini SPA and Micro SPA are small and micro-sized underwater LED projectors designed for spas and hot tubs. White 5700 K and warm white 3000 K versions deliver 315 lm at 4 W, RGB versions 186 lm. Stainless steel or white ABS frame, 12 V AC, 2.5 m cable.
Mini SPA · White · White frame · IP68, EU 2019/2015
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Mini SPA fixing | Threaded bolt + 2" nut |
|---|---|
| Micro SPA fixing | 1¼" nuts |
| Light | White 5700 K, warm white 3000 K, RGB |
| Luminous flux | 315 lm (white) / 186 lm (RGB) |
| Frame | Stainless steel or white ABS |
| Supply / cable | 12 V AC · 2,5 m |
Values by model
| Model | ||||
|---|---|---|---|---|
| Power (W) | 4 | 4 | 4 | 4 |
| Apparent power (VA) | 6 | 7 | 6 | 7 |
| Luminous flux (lm) | 315 | 186 | 315 | 186 |
| Energy class | F | G | F | G |
| Nut | 2" | 2" | 1¼" | 1¼" |
| Order code | Variant description | Certifications |
|---|---|---|
| 52132 | Mini SPA · White · White frame | IP68, EU 2019/2015 |
| 52132WW | Mini SPA · Warm white · White frame | IP68, EU 2019/2015 |
| 52133 | Mini SPA · White · Stainless steel frame | IP68, EU 2019/2015 |
| 52126 | Mini SPA · RGB · White frame | IP68, EU 2019/2015 |
| 52127 | Mini SPA · RGB · Stainless steel frame | IP68, EU 2019/2015 |
| 40765 | Micro SPA · White · White frame | IP68, EU 2019/2015 |
| 40766 | Micro SPA · White · Stainless steel frame | IP68, EU 2019/2015 |
| 40766WW | Micro SPA · Warm white · Stainless steel frame | IP68, EU 2019/2015 |
| 64554 | Micro SPA · RGB · White frame | IP68, EU 2019/2015 |
| 64555 | Micro SPA · RGB · Stainless steel frame | IP68, EU 2019/2015 |
LumiPlus Mini SPA and Micro SPA are small and micro-sized underwater LED projectors designed for spas and hot tubs. White 5700 K and warm white 3000 K versions deliver 315 lm at 4 W, RGB versions 186 lm. Stainless steel or white ABS frame, 12 V AC, 2.5 m cable.
The Mini SPA projector is fixed between a threaded bolt and a 2" nut, while the Micro SPA, with its micro-sized body, is fixed with 1¼" nuts. On both models the frame can be chosen in stainless steel or (white) ABS. The projectors are made in three light types: white 5700 K, warm white 3000 K and multicolour RGB. White versions deliver 315 lm at 4 W (6 VA), energy class F; RGB versions 186 lm at 4 W (7 VA).
The RGB versions are compatible with the LumiPlus Connect controller (76290) and the LumiPlus RGB ECO push button (32458). Rated voltage is 12 V AC and all models come with a 2.5 m cable. Their compact size suits acrylic spa shells, concrete hot tubs and in-pool seating areas.
