Pool Lighting

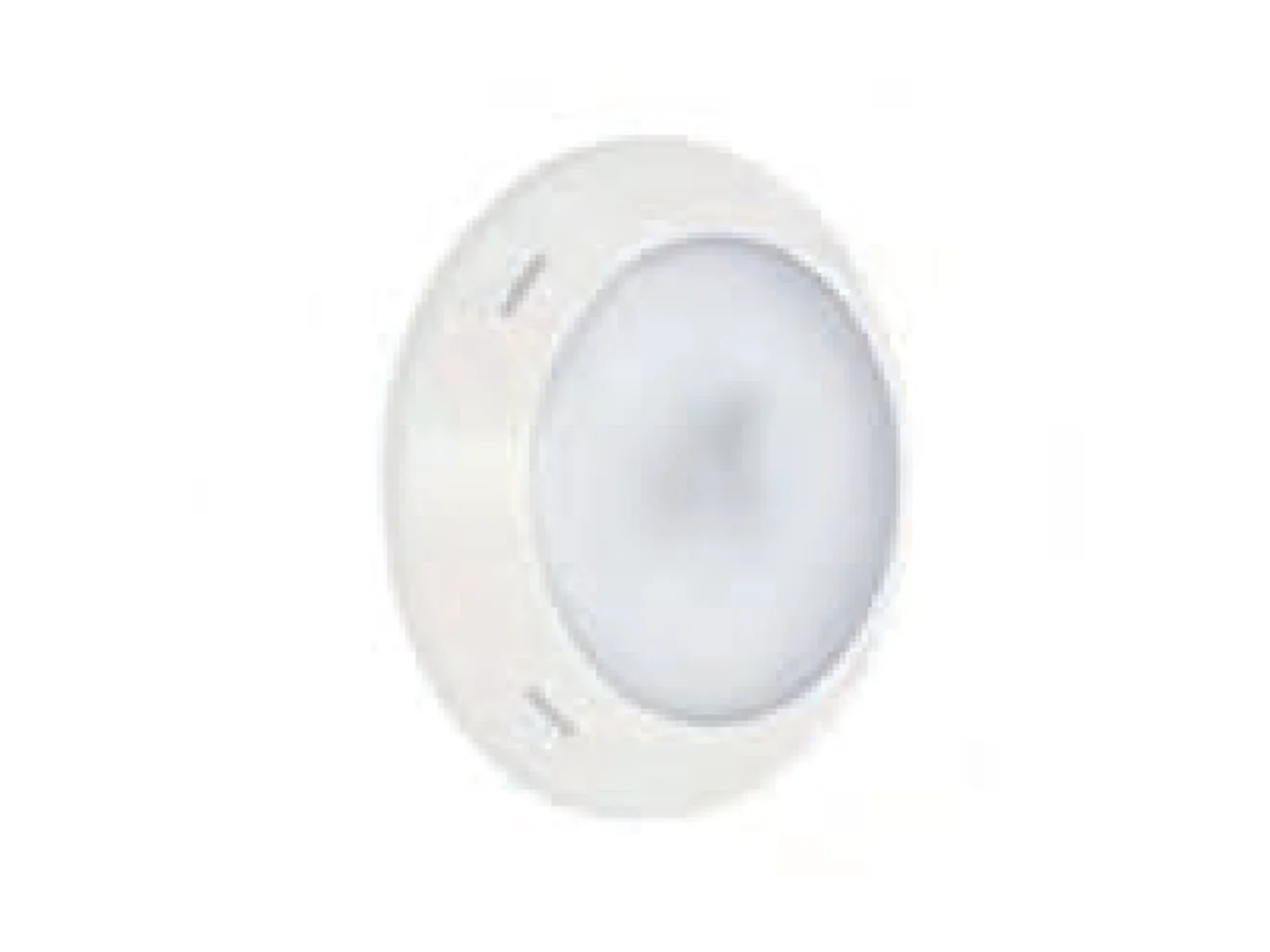

LumiPlus Essential Rapid is an LED projector that mounts on any nozzle with a 1½" female thread and needs no separate niche. White and warm white deliver 1,485 lm at 14.5 W, RGB and RGB RC1100 versions 1,100 lm at 22 W. 12 V AC, 2.5 m cable; compatible with coloured frames.
Rapid · White · IP68, EU 2019/2015
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Mounting | 1½" female-threaded nozzle |
|---|---|
| Light | White, warm white, RGB, RGB RC1100 |
| Luminous flux | 1,485 lm (white) / 1,100 lm (RGB) |
| Supply | 12 V AC |
| Cable | 2,5 m |
| Control (RGB) | 32458 · 64633 + 75773 · Connect 76290 |
Values by order code
| Order code | |||||
|---|---|---|---|---|---|
| Power (W) | 14.5 | 14.5 | 22 | 22 | 22 |
| Apparent power (VA) | 20 | 20 | 29 | 29 | 29 |
| Luminous flux (lm) | 1485 | 1485 | 1100 | 1100 | 1100 |
| Energy class | E | E | G | G | G |
| Order code | Variant description | Certifications |
|---|---|---|
| 62327 | Rapid · White | IP68, EU 2019/2015 |
| 62327WW | Rapid · Warm white | IP68, EU 2019/2015 |
| 62328 | Rapid · RGB | IP68, EU 2019/2015 |
| 62393 | Rapid · RGB RC1100 · + remote control | IP68, EU 2019/2015 |
| 64561 | Rapid · RGB RC1100 | IP68, EU 2019/2015 |
LumiPlus Essential Rapid is an LED projector that mounts on any nozzle with a 1½" female thread and needs no separate niche. White and warm white deliver 1,485 lm at 14.5 W, RGB and RGB RC1100 versions 1,100 lm at 22 W. 12 V AC, 2.5 m cable; compatible with coloured frames.
Essential Rapid projectors are installed quickly in concrete pools by screwing them onto any nozzle with a 1½" female thread; since return-inlet sockets or standard wall passages can be used, the cost of a niche is eliminated. In liner and fibreglass pools they are used with suitable nozzle adapters (e.g. 59983, 17382, 06544, 74179). They come in white, warm white, RGB and RGB RC1100 light types.
RGB versions are controlled with the 32458 push button, the LumiPlus range extender 64633 + RC1100 remote 75773, or LumiPlus Connect 76290; without the range extender they are not compatible with the RC1100 remote. RGB RC1100 versions work directly with the 75773 remote and optionally with the range extender or Connect.
