Pool Lighting

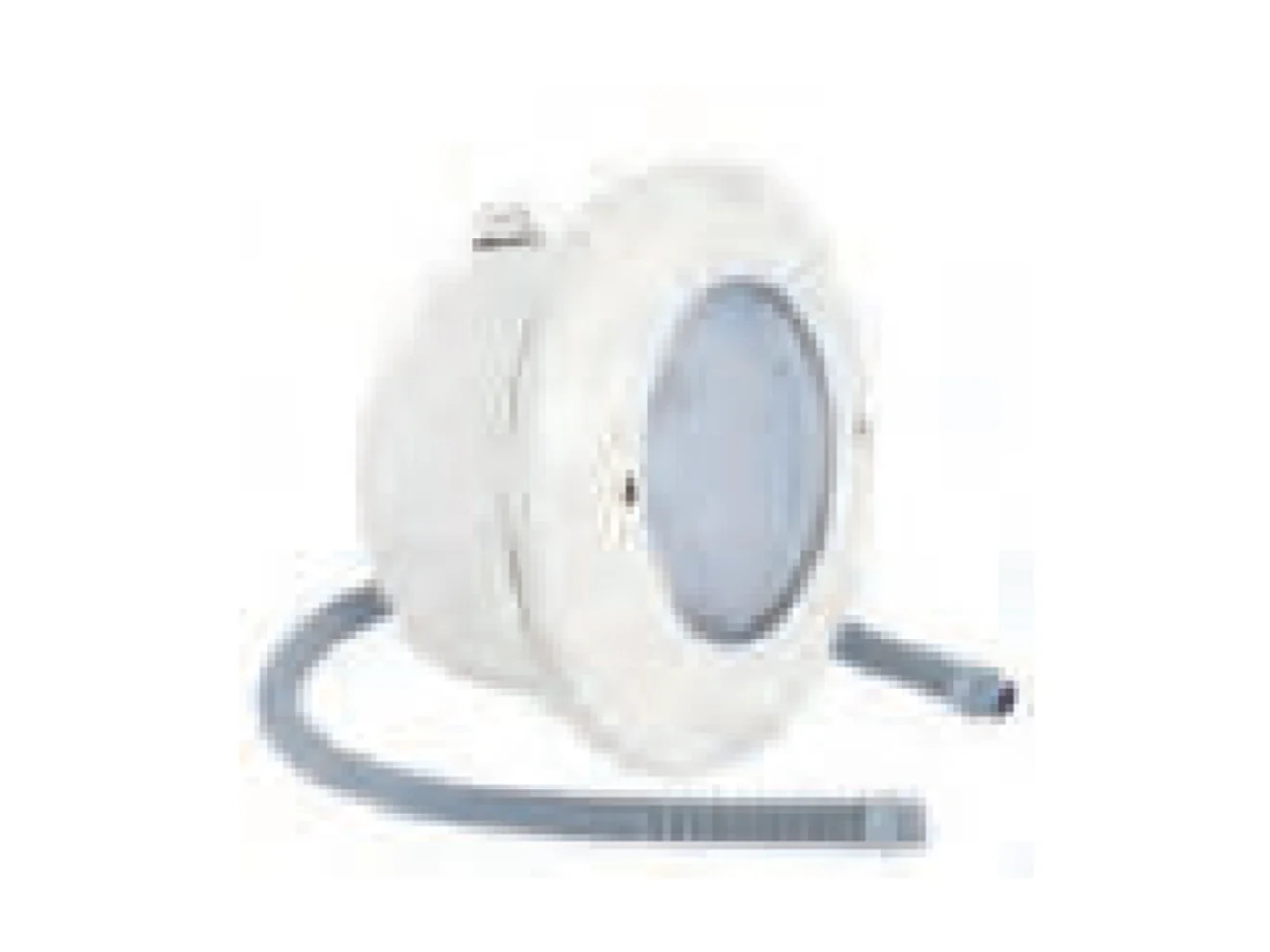

LumiPlus Essential PAR56 kits supply the PAR56 LED projector, niche, fixing system and white frame in a single pack. There are concrete pool kits and liner pool kits with cable hose; with white, warm white (1,485 lm), RGB and RGB RC1100 (1,100 lm) light options, they run on 12 V AC.
Concrete pool · White · IP68, EU 2019/2015
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Mounting | Concrete or liner pool (niche included) |
|---|---|
| Light | White, warm white, RGB, RGB RC1100 |
| Kit contents | PAR56 projector + niche + fixing + white frame (liner: + cable hose) |
| Supply | 12 V AC |
| Cable | 2,5 m |
| Control (RGB) | 32458 · 64633 + 75773 · Connect 76290 |
Values by order code
| Order code | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Power (W) | 14.5 | 14.5 | 22 | 22 | 22 | 14.5 | 22 | 22 | 22 |
| Apparent power (VA) | 20 | 20 | 29 | 29 | 29 | 20 | 29 | 29 | 29 |
| Luminous flux (lm) | 1485 | 1485 | 1100 | 1100 | 1100 | 1485 | 1100 | 1100 | 1100 |
| Energy class | E | E | G | G | G | E | G | G | G |
| Order code | Variant description | Certifications |
|---|---|---|
| 66828 | Concrete pool · White | IP68, EU 2019/2015 |
| 66828WW | Concrete pool · Warm white | IP68, EU 2019/2015 |
| 75437 | Concrete pool · RGB | IP68, EU 2019/2015 |
| 75781 | Concrete pool · RGB RC1100 · + remote control | IP68, EU 2019/2015 |
| 75782 | Concrete pool · RGB RC1100 | IP68, EU 2019/2015 |
| 77065P | Liner pool · White | IP68, EU 2019/2015 |
| 77066P | Liner pool · RGB | IP68, EU 2019/2015 |
| 77068P | Liner pool · RGB RC1100 · + remote control | IP68, EU 2019/2015 |
| 77067P | Liner pool · RGB RC1100 | IP68, EU 2019/2015 |
LumiPlus Essential PAR56 kits supply the PAR56 LED projector, niche, fixing system and white frame in a single pack. There are concrete pool kits and liner pool kits with cable hose; with white, warm white (1,485 lm), RGB and RGB RC1100 (1,100 lm) light options, they run on 12 V AC.
The kits follow the Flexi kit concept: lamp, fixing system and white frame come together, so no separate parts need matching on site. Concrete pool kits consist of a PAR56 projector and concrete pool niche; liner pool kits include a cable hose along with the PAR56 projector set. All kits run on 12 V AC and include a 2.5 m cable.
RGB versions are controlled with the 32458 push button, the LumiPlus range extender 64633 + RC1100 remote 75773, or LumiPlus Connect 76290; without the range extender they are not compatible with the RC1100 remote. RGB RC1100 versions work directly with the 75773 remote and optionally with the range extender or Connect.
