Pool Lighting
LumiPlus Essential Mini is a compact LED projector running on 12 V AC, fitted either into a mini niche (niche mount) or a small wall sleeve (nozzle mount). White and warm white deliver 315 lm at 4 W, RGB 186 lm at 4 W; it includes a 2.5 m cable and coloured frames match the finish.

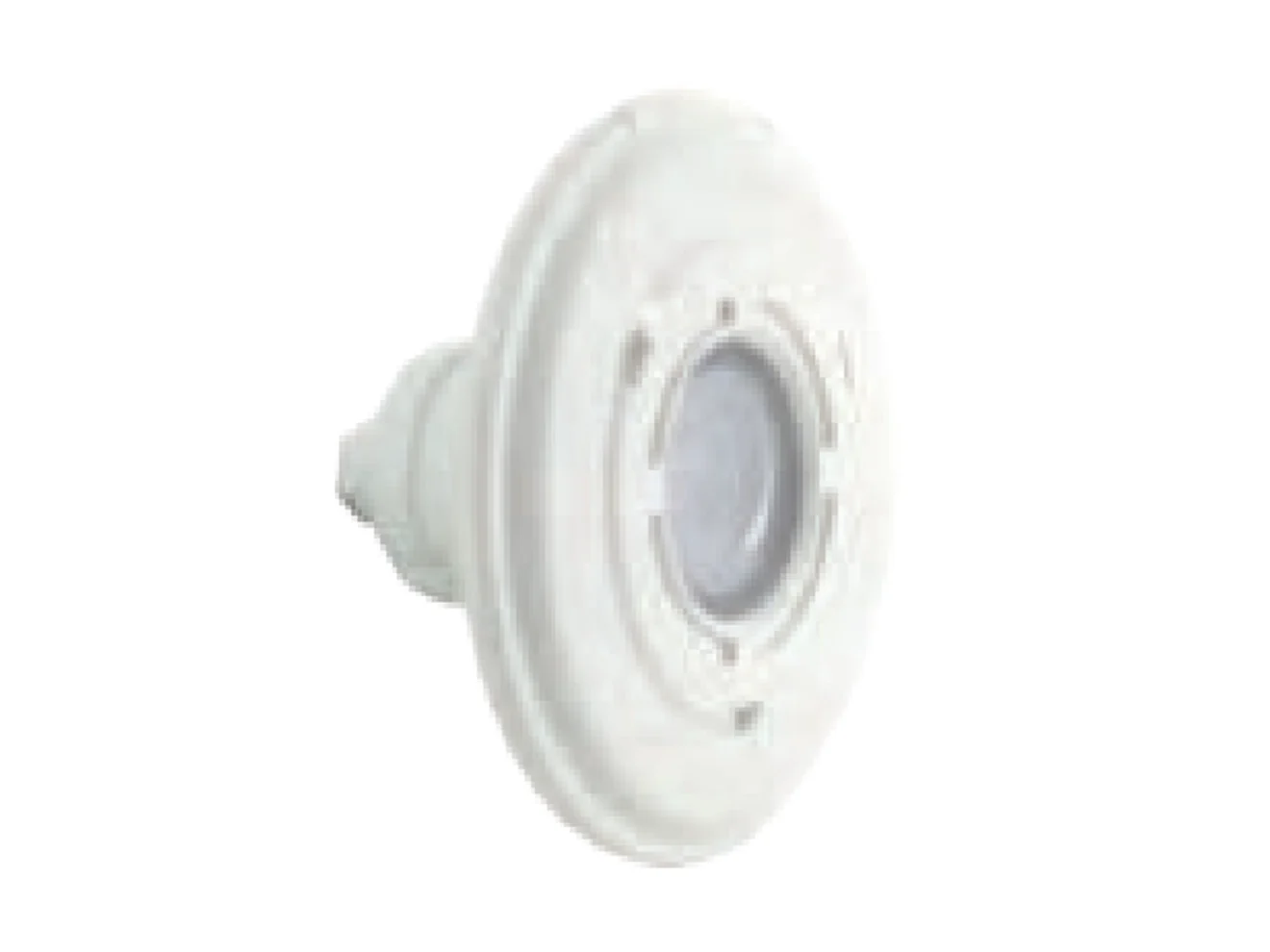

Niche mount · White · IP68, EU 2019/2015
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Mounting | Mini niche 06967 / 00369 or wall sleeve 15661 |
|---|---|
| Light | White, warm white, RGB |
| Luminous flux | 315 lm (white) / 186 lm (RGB) |
| Power | 4 W (6 – 7 VA) |
| Supply | 12 V AC |
| Cable | 2,5 m |
Values by order code
| Order code | ||||||
|---|---|---|---|---|---|---|
| Power (W) | 4 | 4 | 4 | 4 | 4 | 4 |
| Apparent power (VA) | 6 | 6 | 7 | 6 | 6 | 7 |
| Luminous flux (lm) | 315 | 315 | 186 | 315 | 315 | 186 |
| Energy class | F | F | G | F | F | G |
| Order code | Variant description | Certifications |
|---|---|---|
| 76680 | Niche mount · White | IP68, EU 2019/2015 |
| 76680WW | Niche mount · Warm white | IP68, EU 2019/2015 |
| 76682 | Niche mount · RGB | IP68, EU 2019/2015 |

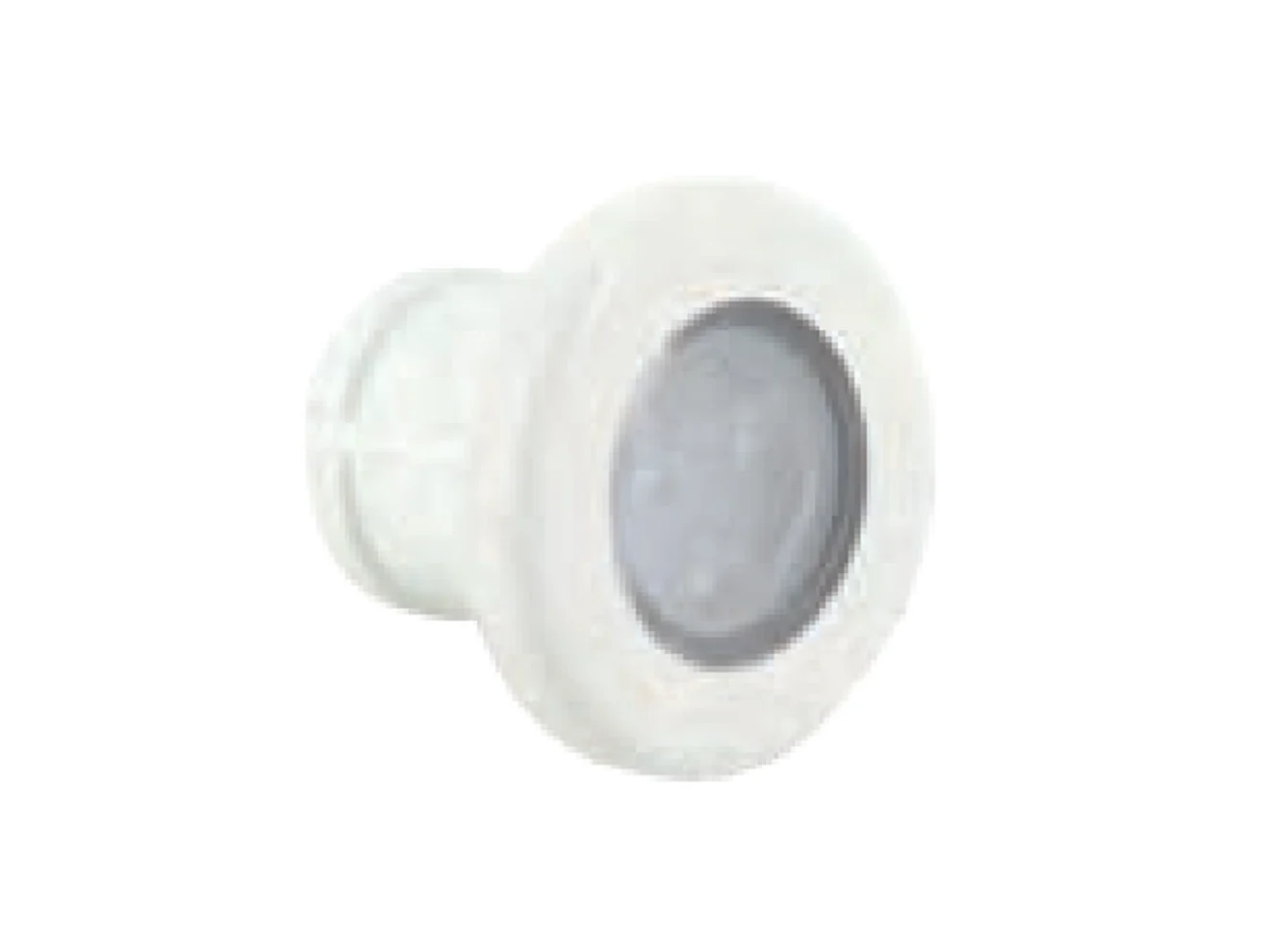

| 76681 | Nozzle mount · White | IP68, EU 2019/2015 |
| 76681WW | Nozzle mount · Warm white | IP68, EU 2019/2015 |
| 76683 | Nozzle mount · RGB | IP68, EU 2019/2015 |
LumiPlus Essential Mini is a compact LED projector running on 12 V AC, fitted either into a mini niche (niche mount) or a small wall sleeve (nozzle mount). White and warm white deliver 315 lm at 4 W, RGB 186 lm at 4 W; it includes a 2.5 m cable and coloured frames match the finish.
Essential Mini projectors come in two mounting types: the niche-mount version fits (push-fit) into the 06967 and 00369 mini niches, while the nozzle-mount version is a compact wall projector fitted into a small wall sleeve (e.g. 15661). White (5700 K) and warm white (3000 K) versions deliver 315 lm at 4 W (6 VA), energy class F; RGB versions 186 lm at 4 W (7 VA).
They are ideal for steps, seating benches and spa lighting. Beige, grey and anthracite frames allow easy colour differentiation. RGB versions are controlled with the 32458 push button, the LumiPlus range extender 64633 + RC1100 remote 75773, or LumiPlus Connect 76290; without the range extender they are not compatible with the RC1100 remote.
