Pool Lighting

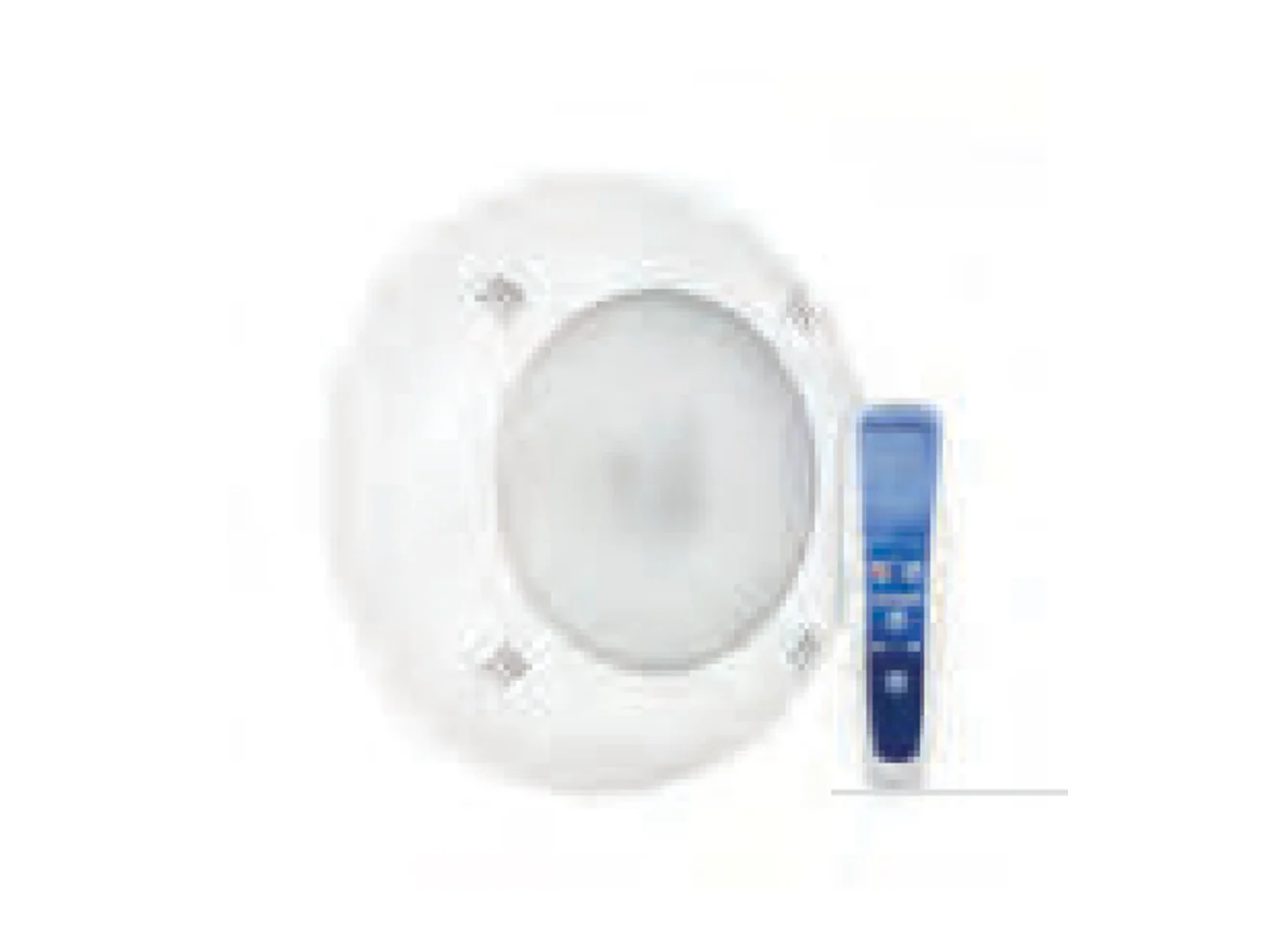

LumiPlus Essential Flat is a slim surface-mounted LED projector that needs no niche. The white version delivers 1,485 lm at 14.5 W, RGB and RGB RC1100 versions 1,100 lm at 22 W. It runs on 12 V AC, includes a 2.5 m cable and frames can be white, beige, grey or anthracite.
Flat · White · IP68, EU 2019/2015
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Mounting | Surface mount (fittings included) |
|---|---|
| Light | White, warm white, RGB, RGB RC1100 |
| Frame colour | White, beige, grey, anthracite |
| Supply | 12 V AC |
| Cable | 2,5 m |
| Control (RGB) | 32458 · 64633 + 75773 · Connect 76290 |
Values by order code
| Order code | |||
|---|---|---|---|
| Power (W) | 14.5 | 22 | 22 |
| Apparent power (VA) | 20 | 29 | 29 |
| Luminous flux (lm) | 1485 | 1100 | 1100 |
| Energy class | E | G | G |
| Order code | Variant description | Certifications |
|---|---|---|
| 75821 | Flat · White | IP68, EU 2019/2015 |
| 75824 | Flat · RGB | IP68, EU 2019/2015 |
| 75825 | Flat · RGB RC1100 · + remote control | IP68, EU 2019/2015 |
LumiPlus Essential Flat is a slim surface-mounted LED projector that needs no niche. The white version delivers 1,485 lm at 14.5 W, RGB and RGB RC1100 versions 1,100 lm at 22 W. It runs on 12 V AC, includes a 2.5 m cable and frames can be white, beige, grey or anthracite.
Essential Flat projectors are surface-mounted; because the mounting fittings are supplied with the projector, no separate niche is needed in concrete, liner and fibreglass pools. The flat, slim body protrudes minimally from the pool wall. They come in white, warm white, RGB and, for remote compatibility, RGB RC1100 light types.
RGB versions are controlled with the 32458 push button, the LumiPlus range extender 64633 + RC1100 remote 75773, or LumiPlus Connect 76290; without the range extender they are not compatible with the RC1100 remote. RGB RC1100 versions work directly with the 75773 remote and optionally with the range extender or Connect.
