Heat Pumps and Heating
Zodiac Red Line is an in-line electric pool heater with low pressure loss, rated 3–12 kW for pools up to 95 m³. It offers full digital regulation, a ±0.5 °C precision thermostat and titanium heating elements; the 3, 6 and 9 kW models can be configured on site for single-phase or three-phase supply.
Red Line 3 · 3 kW · single / three-phase
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Type | Electric pool heater, in-line |
|---|---|
| Output | 3 / 6 / 9 / 12 kW |
| Pool volume | Up to 95 m³ |
| Recommended flow | 5 – 30 m³/h |
| Power supply | Single 230 V / three-phase 400 V set on site (12 kW: three-phase only) |
| Heating element | Titanium, EPDM-sleeved |
| Thermostat | Digital, ±0.5 °C · timer |
| Connection | 2 × Ø63 PVC unions, Ø63-50 reducers |
| Warranty / origin | 2 years · France |
Values by order code
| Order code | ||||
|---|---|---|---|---|
| Heating output (kW) | 3 | 6 | 9 | 12 |
| Recommended water flow (m³/h) | 5 – 30 | 5 – 30 | 5 – 30 | 5 – 30 |
| Power supply | 220-240 V / 1 / 50-60 Hz · 380-400 V / 3 / 50-60 Hz | 220-240 V / 1 / 50-60 Hz · 380-400 V / 3 / 50-60 Hz | 220-240 V / 1 / 50-60 Hz · 380-400 V / 3 / 50-60 Hz | 380-400 V / 3 / 50-60 Hz |
| Max. operating current single / three-phase (A) | 14 / 5 | 27 / 9 | 40 / 13 | — / 18 |
| Recommended cable section single / three-phase (mm²) | 3 × 4 / 5 × 2.5 | 3 × 6 / 5 × 2.5 | 3 × 10 / 5 × 4 | — / 5 × 4 |

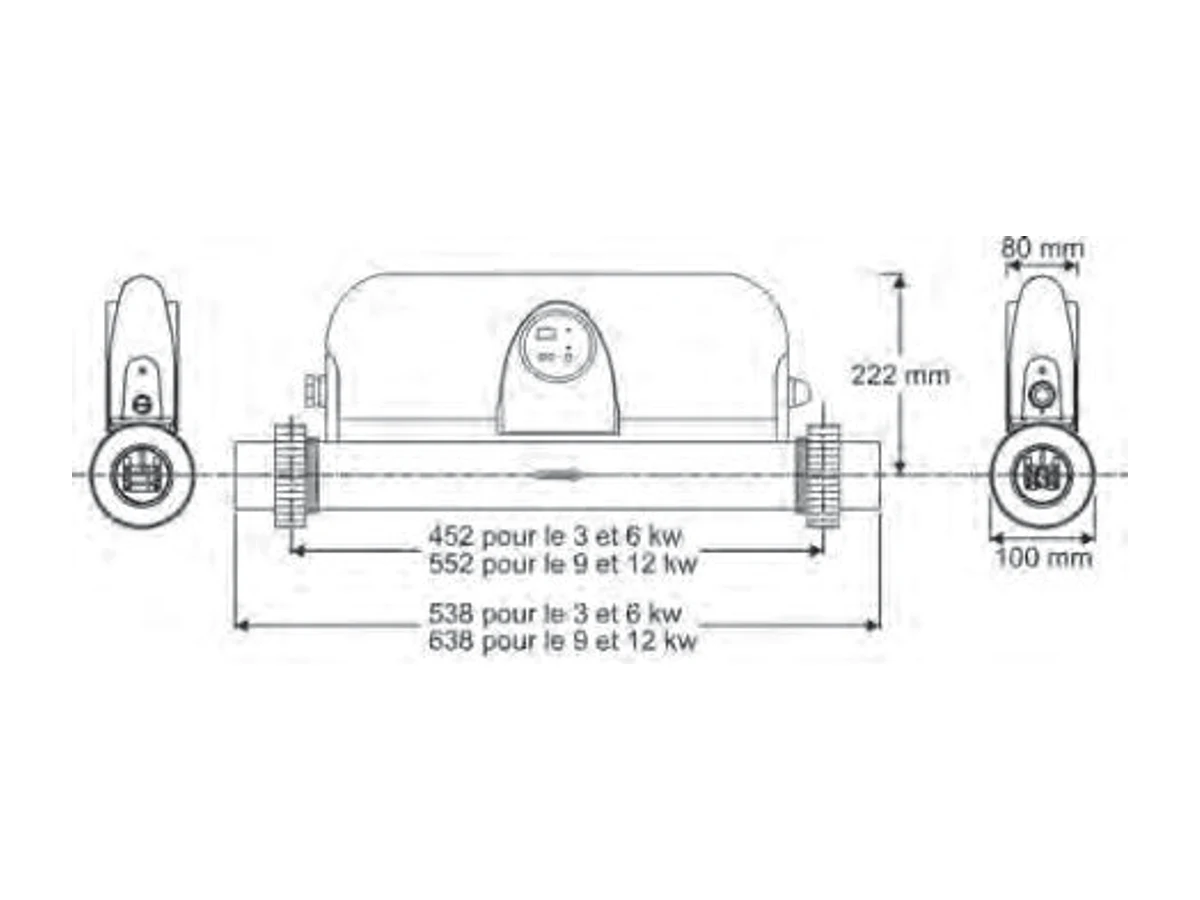

| Dimensions L × H × D (mm) | 538 × 222 × 100 | 538 × 222 × 100 | 638 × 222 × 100 | 638 × 222 × 100 |
| Weight (kg) | 4 | 4 | 4 | 4 |
| Order code | Variant description | Certifications |
|---|---|---|
| W40RDE3 | Red Line 3 · 3 kW · single / three-phase | — |
| W40RDE6 | Red Line 6 · 6 kW · single / three-phase | — |
| W40RDE9 | Red Line 9 · 9 kW · single / three-phase | — |
| W40RDE12 | Red Line 12 · 12 kW · 400 V three-phase | — |
Zodiac Red Line is an in-line electric pool heater with low pressure loss, rated 3–12 kW for pools up to 95 m³. It offers full digital regulation, a ±0.5 °C precision thermostat and titanium heating elements; the 3, 6 and 9 kW models can be configured on site for single-phase or three-phase supply.
Red Line is a compact electric heater fitted directly into the filtration line with low pressure loss. It is easy to install, heats water quickly and keeps it at the desired temperature. It suits residential pools up to 95 m³, spas and small plant rooms.
A control panel with ±0.5 °C precision thermostat, digital display and timer, LCD screen, on/off switch and warning lights, power contactor and flow sensor are standard. A positive-safety high-temperature cut-out, watertight EPDM-sleeved heating elements and moulded Hypalon electrical connections ensure safety.
Red Line 3, 6 and 9 are configured on site as simplified single-phase 230 V or three-phase 400 V (three-phase 230 V on request); Red Line 12 is three-phase 400 V only. It connects in-line with 2 × Ø63 PVC unions and Ø63-50 reducers and supports either flow direction — simply turn the unit to match the water flow. Made in France with a 2-year warranty.
