Zodiac RE/L is a wall-mounted electric pool heater rated 3–12 kW for pools up to 95 m³, whose L-shaped body saves floor space. It has a 16–40 °C mechanical rotary thermostat, titanium heating elements, a flow sensor and a safety cut-out, and is configured on site for single-phase or three-phase supply.
RE/L 3 · 3 kW · single / three-phase
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Type | Electric pool heater, L-type, wall-mounted |
|---|---|
| Output | 3 / 6 / 9 / 12 kW |
| Pool volume | Up to 95 m³ |
| Recommended flow | 5 – 22 m³/h |
| Thermostat | Mechanical rotary, 16 – 40 °C |
| Power supply | Single 230 V / three-phase 400 V set on site (12 kW: three-phase only) |
| Heating element | Titanium, EPDM-sleeved |
| Connection | Ø50 or Ø63 PVC, in-line |
| Warranty / origin | 2 years · France |
Values by order code
| Order code | ||||
|---|---|---|---|---|
| Heating output (kW) | 3 | 6 | 9 | 12 |
| Recommended water flow (m³/h) | 5 – 22 | 5 – 22 | 5 – 22 | 5 – 22 |
| Power supply | 220-240 V / 1 / 50-60 Hz · 380-400 V / 3 / 50-60 Hz | 220-240 V / 1 / 50-60 Hz · 380-400 V / 3 / 50-60 Hz | 220-240 V / 1 / 50-60 Hz · 380-400 V / 3 / 50-60 Hz | 380-400 V / 3 / 50-60 Hz |
| Max. operating current single / three-phase (A) | 14 / 5 | 27 / 9 | 40 / 13 | — / 18 |
| Recommended cable section single / three-phase (mm²) | 3 × 4 / 5 × 2.5 | 3 × 6 / 5 × 2.5 | 3 × 10 / 5 × 4 | — / 5 × 4 |

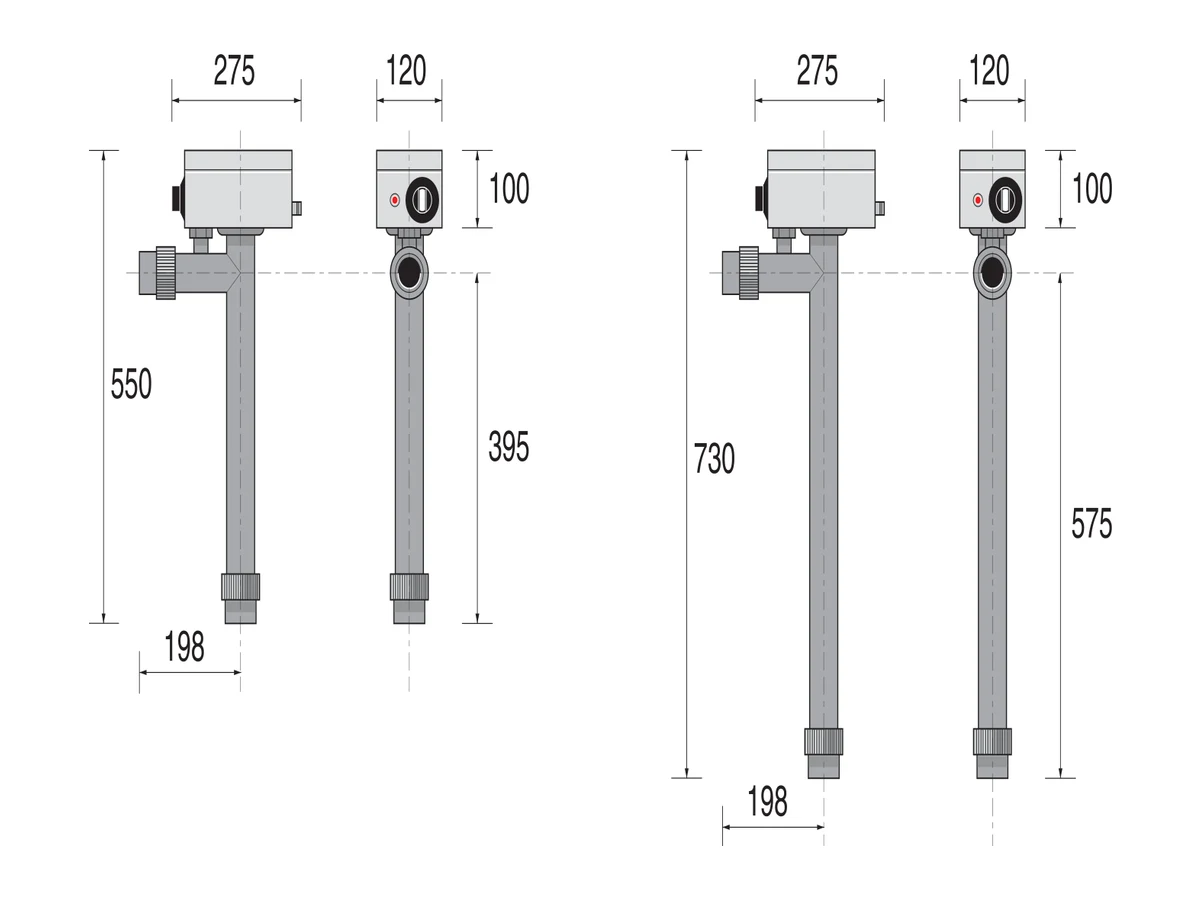

| Dimensions L × H × D (mm) | 275 × 550 × 120 | 275 × 550 × 120 | 275 × 730 × 120 | 275 × 730 × 120 |
| Weight (kg) | 4 | 4 | 5 | 5 |
| Order code | Variant description | Certifications |
|---|---|---|
| W40LE03 | RE/L 3 · 3 kW · single / three-phase | — |
| W40LE06 | RE/L 6 · 6 kW · single / three-phase | — |
| W40LE09 | RE/L 9 · 9 kW · single / three-phase | — |
| W40LE12 | RE/L 12 · 12 kW · 400 V three-phase | — |
Zodiac RE/L is a wall-mounted electric pool heater rated 3–12 kW for pools up to 95 m³, whose L-shaped body saves floor space. It has a 16–40 °C mechanical rotary thermostat, titanium heating elements, a flow sensor and a safety cut-out, and is configured on site for single-phase or three-phase supply.
RE/L is an electric pool heater designed for small plant rooms, whose L-shaped vertical body saves floor space. It is fixed with a wall-mounting bracket and connected in-line to Ø50 or Ø63 PVC pipework; the L configuration limits pressure drops compared with in-line installation.
A control panel, a mechanical rotary thermostat adjustable from 16 to 40 °C, a power contactor and a flow sensor are standard. A positive-safety high-temperature cut-out, watertight EPDM-sleeved heating elements and Hypalon electrical connections ensure safe operation, and titanium heating elements make it highly durable.
RE/L 3, 6 and 9 are configured on site as simplified single-phase 230 V or three-phase 400 V (three-phase 230 V on request); RE/L 12 is three-phase 400 V only. It supports either flow direction — simply turn the unit to match the water flow. Made in France with a 2-year warranty.
