Robotic Pool Cleaners

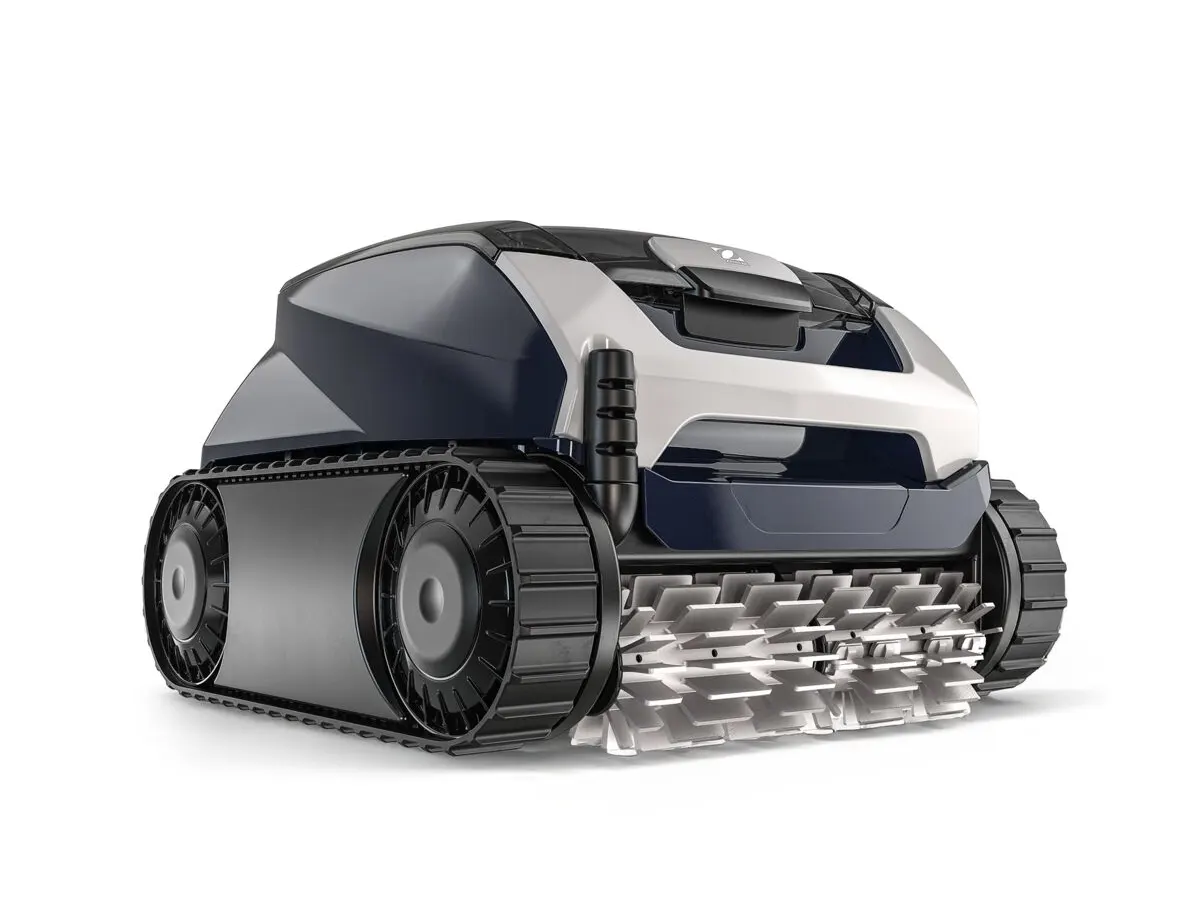

The Zodiac Voyager™ RE series are tracked corded pool robots that clean the floor, walls and waterline with patented cyclonic suction and helical brushes. The RE 4200 suits 10 × 5 m pools and the iQ models 12 × 6 m pools, offering 150/60 µ dual-stage filtration, the iAquaLink™ app and, on the RE 4600/4700 iQ, Lift System.
RE 4200 · 10 × 5 m · 100 µ · 15 m cable
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Product type | Corded pool robot |
|---|---|
| Power supply | 220–240 V AC / 50–60 Hz, mains-connected via transformer, autonomous |
| Power | 150 W · 3 motors |
| Drive | Tracks, 2 motors, geared transmission, accelerometer + gyroscope |
| Cleaning cycle | 2 cycles · floor only 1 h 30 min · floor / walls / waterline 2 h 30 min |
| Filtration | Cyclonic suction · 4 L top-access rigid chamber · transparent lid |
| Suction inlet | 23 cm |
| Pool type | In-ground and rigid-wall above-ground private pools |
| Pool shape and floor | Rectangular, oval, freeform · flat, gentle, composite and steep slope floors |
| Pool surface | Tiles, liner, polyester, PVC, concrete |
| Dimensions | 43 × 40 × 30 cm |
| Weight | 8 kg |
| Safety | Out-of-water safety, diagnostics, electronic motor protection |
| Optional accessories | R0897500 (100 µ filter), R0897700 (200 µ filter), R0897600 / R0898100 (150 / 60 µ dual stage), R0568100 (robot cover), R0639500 (caddy cart) |
| Warranty | RE 4200: 2 years · iQ models: 2 + 1 years (with iAquaLink™ pairing) |
Values by order code
| Order code | ||||
|---|---|---|---|---|
| Max. pool size (m) | 10 × 5 | 12 × 6 | 12 × 6 | 12 × 6 |
| Cable length (m) | 15 | 18 | 18 | 18 |
| Filtration fineness (µ) | 100 | 150 / 60 | 150 / 60 | 150 / 60 |
| Filtration area (cm²) | 526 | 1066 | 1066 | 1066 |
| iAquaLink™ app | – | ✓ | ✓ | ✓ |
| Remote control (app) | – | – | ✓ | ✓ |
| Lift System | – | – | ✓ | ✓ |
| Filter lighting | – | – | ✓ | ✓ |
| Caddy cart included | – | – | ✓ | ✓ |
| Swivel cable | – | – | – | ✓ |
| Packed weight (kg) | 14 | 15 | 15 | 15 |
| Order code | Variant description | Certifications |
|---|---|---|
| WR000331 | RE 4200 · 10 × 5 m · 100 µ · 15 m cable | — |
| WR000327 | RE 4400 iQ · 12 × 6 m · 150/60 µ · iAquaLink™ | — |
| WR000323 | RE 4600 iQ · 12 × 6 m · Lift System · caddy cart | — |
| WR000499 | RE 4700 iQ · 12 × 6 m · swivel cable · Lift System | — |
The Zodiac Voyager™ RE series are tracked corded pool robots that clean the floor, walls and waterline with patented cyclonic suction and helical brushes. The RE 4200 suits 10 × 5 m pools and the iQ models 12 × 6 m pools, offering 150/60 µ dual-stage filtration, the iAquaLink™ app and, on the RE 4600/4700 iQ, Lift System.
Voyager is designed to be "skilful and agile": accelerometer and gyroscope sensors let the robot find its way in every pool shape and surface, and the twin-motor tracked drive with geared transmission grips even steep slopes. Patented cyclonic suction creates a vortex inside the filter that keeps dirt in suspension, so the filter clogs later and suction power stays constant throughout the cycle. Helical brushes create a constant flow of debris and the wide 23 cm suction inlet also takes in large leaves.
Two cleaning cycles are offered: floor only (1 h 30 min) and floor / walls / waterline (2 h 30 min). The 4-litre top-access rigid filter chamber shows its fill level through the transparent lid; the RE 4200 comes with a 100 µ fine-particle filter and the iQ models with a 150 µ + 60 µ dual-stage filter as standard.

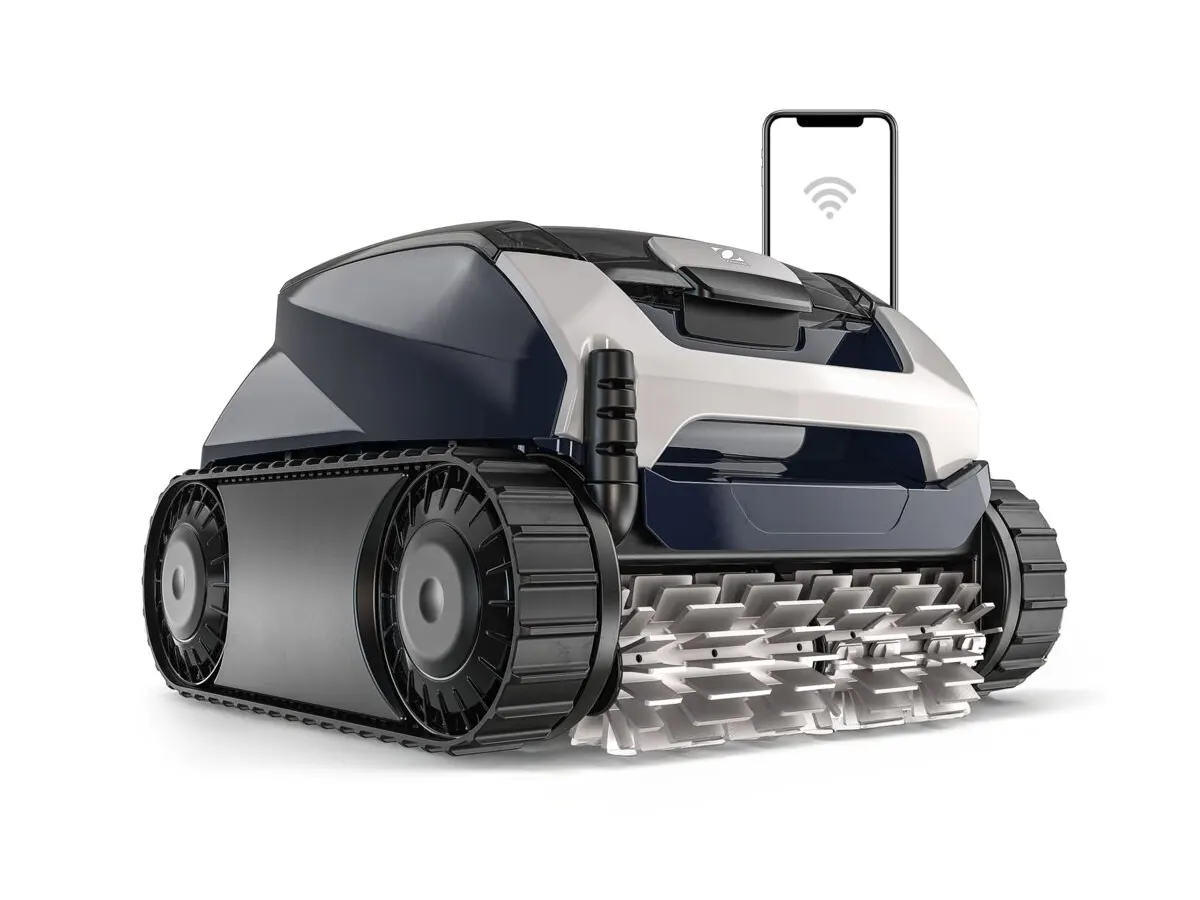

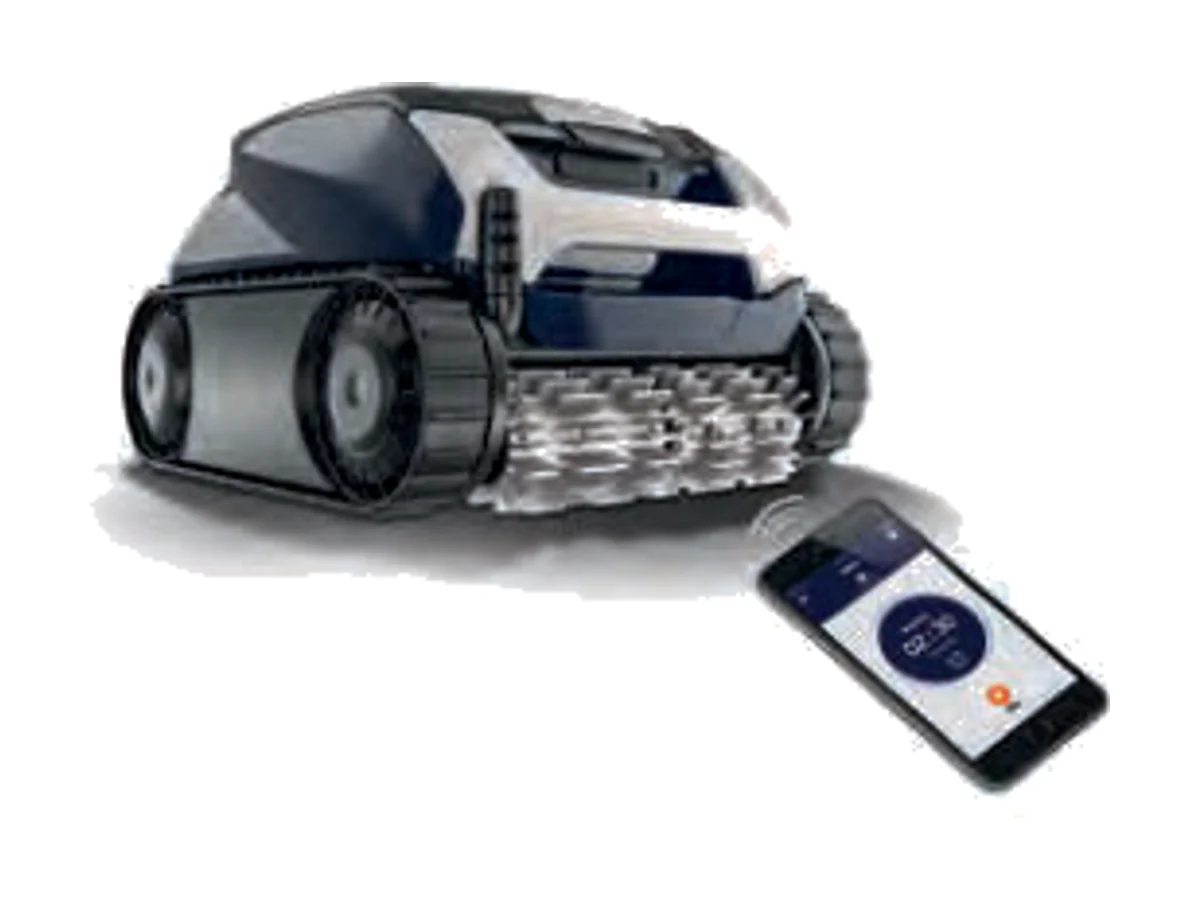

The iQ models are started and monitored over Wi-Fi with the iAquaLink™ app; the RE 4600 iQ and RE 4700 iQ also feature remote control in the app, filter lighting, Lift System (the robot comes to the waterline for easy retrieval) and a caddy cart. The swivel cable of the RE 4700 iQ prevents cable tangling.
