Robotic Pool Cleaners

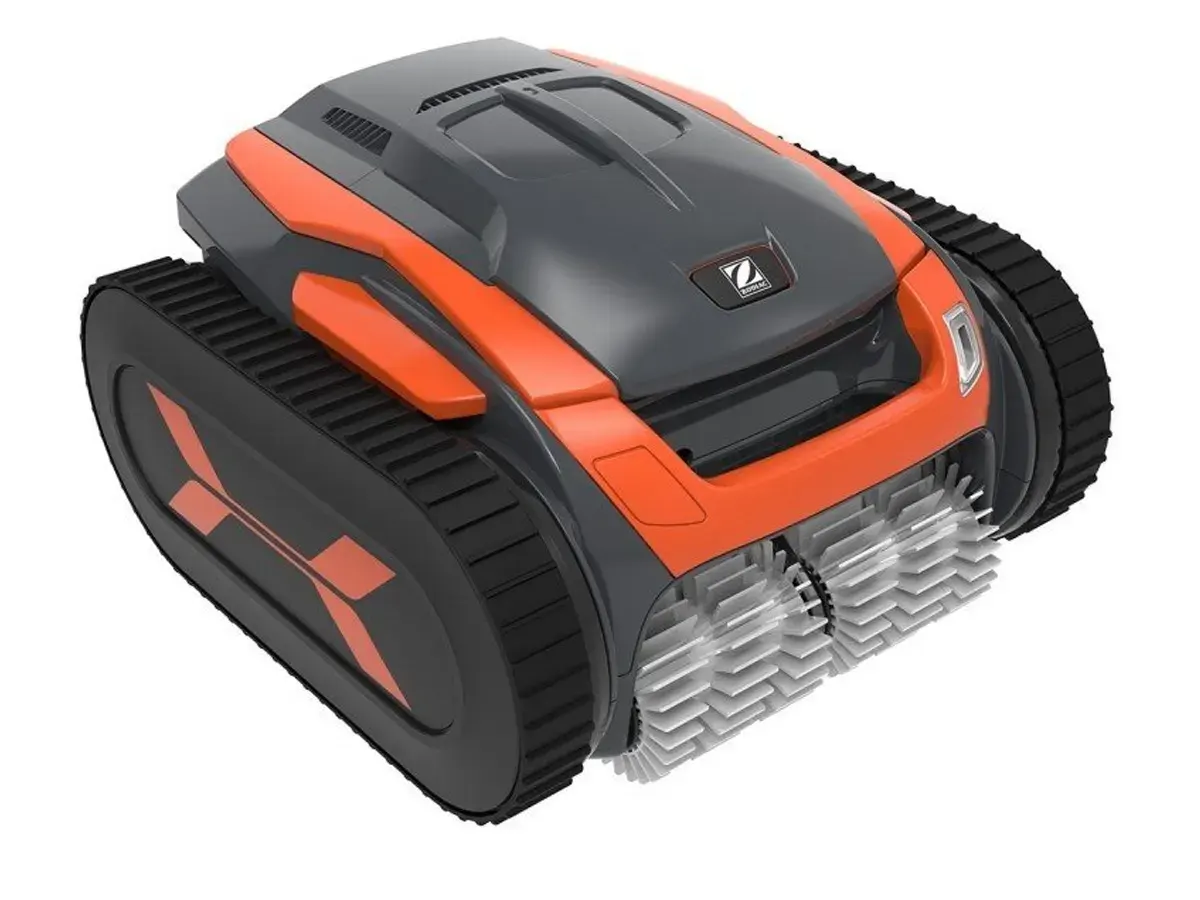

The Zodiac TRX Vortrax series are tracked corded robots designed for intensive use in medium-sized public pools of hotels, residential complexes, campsites and sports centres. The TRX 8500 iQ cleans pools up to 20 m long and the TRX 8700 iQ, with ultrasonic sensors and a 150/60 µ filter, pools up to 25 m long using Sensor Nav System™.
TRX 8500 iQ · up to 20 m · 25 m cable
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Product type | Corded robot for public pools |
|---|---|
| Power supply | 200–240 V AC / 50–60 Hz · robot supply 30 V DC |
| Power | 150 W · 3 motors |
| Drive | Tracks, 2 motors, reinforced gearbox, Sensor Nav System™ |
| Cleaning cycle | Multiple cycles 0 h 30 min – 6 h · quick 1 h 15 min · smart · ultra 2 h 45 min |
| Timer | 7 days · start delay up to 3 hours |
| Filtration | 5 L top-access rigid chamber · filter-full indicator |
| Suction inlet | 24.5 cm |
| Brushes | Contact+ and ZZ brushes |
| Control | Remote control via mobile app, water temperature monitoring |
| Pool type | In-ground and rigid-wall above-ground public pools |
| Pool surface | Tiles, liner, polyester, PVC, concrete |
| Dimensions | 47 × 51 × 29 cm |
| Safety | Out-of-water safety, diagnostics, electronic motor protection |
| Optional accessories | R0863600 (100 µ fine-debris filter canister), R0863700 (200 µ large-debris filter canister) |
| Warranty | 3 years |
Values by order code
| Order code | ||
|---|---|---|
| Max. pool length (m) | 20 | 25 |
| Cable length (m) | 25 | 30 |
| Filtration area (cm²) | 1180 | 1827 |
| Filtration fineness (µ) | – | 150 / 60 |
| Ultrasonic obstacle sensor | – | ✓ |
| Robot weight (kg) | 11 | 13 |
| Packed weight (kg) | 21 | 24 |
| Order code | Variant description | Certifications |
|---|---|---|
| WR000597 | TRX 8500 iQ · up to 20 m · 25 m cable | — |
| WR000598 | TRX 8700 iQ · up to 25 m · ultrasonic sensors · 30 m cable | — |
The Zodiac TRX Vortrax series are tracked corded robots designed for intensive use in medium-sized public pools of hotels, residential complexes, campsites and sports centres. The TRX 8500 iQ cleans pools up to 20 m long and the TRX 8700 iQ, with ultrasonic sensors and a 150/60 µ filter, pools up to 25 m long using Sensor Nav System™.
Vortrax is fitted with heavy-duty equipment for professional use and a twin-motor tracked drive with a reinforced gearbox. Sensor Nav System™ builds a pool-specific cleaning route; on the TRX 8700 iQ, ultrasonic sensors detect walls and obstacles so the robot turns safely around ladders, steps and in-pool equipment. Ultra-powerful, long-lasting vacuum and Contact+ and ZZ brushes provide uninterrupted cleaning under heavy soiling.
Multiple cycles adjustable from 0 h 30 min to 6 h cover quick (floor only, 1 h 15 min), smart (floor / walls / waterline, calculated time) and ultra (2 h 45 min) modes. With a 7-day timer and start delay of up to 3 hours, the robot is scheduled to work while the pool is closed; the mobile app offers remote control and pool water temperature monitoring.
The 5-litre top-access rigid filter chamber, filter-full indicator and Lift System shorten maintenance time. Powered at a low voltage of 30 VDC, the robot is used safely in public facilities with poolside and out-of-water safety, diagnostics and electronic motor protection.
