Robotic Pool Cleaners

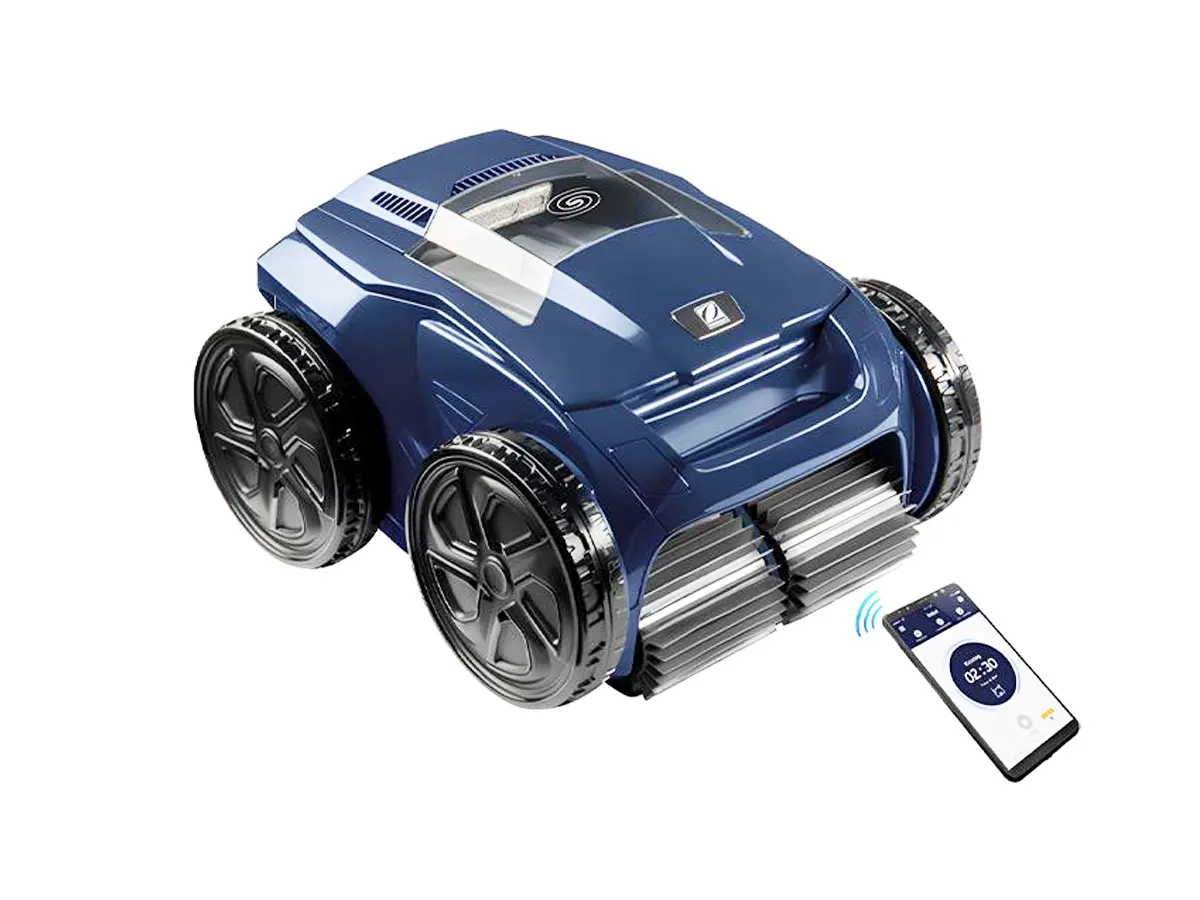

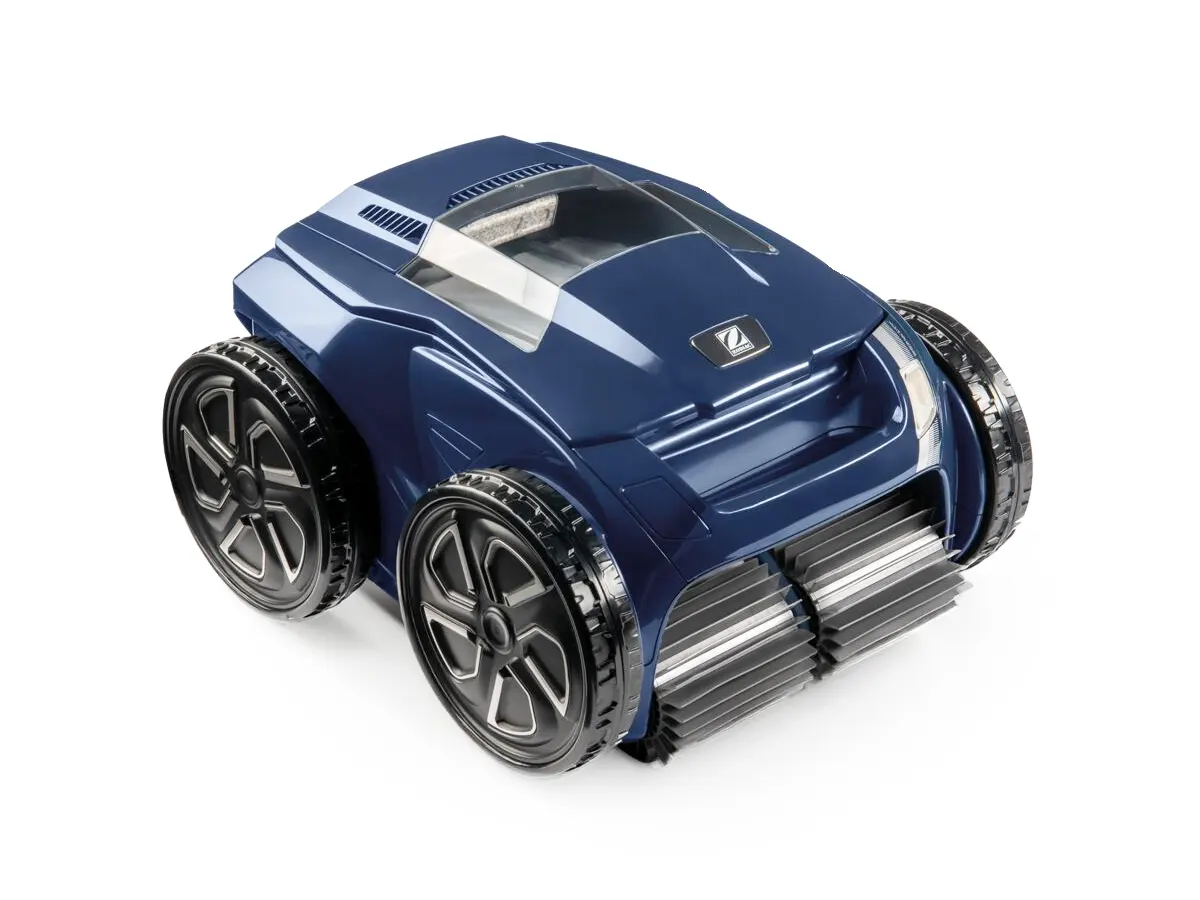

The Zodiac Alpha iQ™ Pro RA series are premium corded pool robots with four-wheel drive and Wi-Fi that map the pool with Sensor Nav System™. For pools from 12 × 6 m up to 20 × 10 m they offer a 5-litre filter, 60 µ or 150/60 µ filtration, Lift System and, with iAquaLink™, a 4-year warranty.
RA 6300 iQ · 12 × 6 m · 60 µ · 18 m cable
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Product type | Smart corded pool robot (Wi-Fi) |
|---|---|
| Power supply | 220–240 V AC / 50–60 Hz, mains-connected via transformer, autonomous |
| Power | 150 W · 3 motors |
| Drive | Four-wheel drive, 2 motors, geared transmission, Sensor Nav System™ |
| Cleaning cycle | Quick: floor only 1 h 15 min · Smart: floor / walls / waterline (calculated time) · Ultra: 2 h 45 min (RA 6500 iQ and above) |
| Filtration | Cyclonic suction · 5 L top-access rigid chamber · filter-full indicator |
| Suction inlet | 24.5 cm |
| Control | iAquaLink™ app (Wi-Fi) |
| Pool type | In-ground and rigid-wall above-ground private pools |
| Pool shape and floor | Rectangular, oval, freeform · flat, gentle, composite and steep slope floors |
| Pool surface | Tiles, liner, polyester, PVC, concrete |
| Dimensions | 43 × 48 × 27 cm |
| Weight | 10 kg |
| Included | Caddy cart, control box, swivel cable, Contact+ brushes, filter |
| Optional accessories | R0863500 (60 µ ultra-fine filter), R0863600 (100 µ fine filter), R0863700 (200 µ large-debris filter), R0568100 (robot cover) |
| Warranty | 3 + 1 years (4 years with iAquaLink™ pairing) |
Values by order code
| Order code | |||||
|---|---|---|---|---|---|
| Max. pool size (m) | 12 × 6 | 12 × 6 | 15 × 7 | 15 × 7 | 20 × 10 |
| Cable length (m) | 18 | 18 | 21 | 21 | 25 |
| Filtration fineness (µ) | 60 | 60 | 60 | 150 / 60 | 150 / 60 |
| Filtration area (cm²) | 1180 | 1180 | 1180 | 1827 | 1827 |
| Adjustable multiple cycles | – | 0:30–3:30 | 0:30–3:30 | 0:30–3:30 | 0:30–6:00 |
| 7-day timer | – | ✓ | ✓ | ✓ | ✓ |
| Pressure sensor | – | ✓ | ✓ | ✓ | ✓ |
| Remote control (app) | – | ✓ | ✓ | ✓ | ✓ |
| Quick clean / waterline-only mode | – | – | ✓ | ✓ | ✓ |
| Water temperature monitoring (app) | – | – | ✓ | ✓ | ✓ |
| Packed weight (kg) | 19.7 | 19.9 | 20.2 | 20.5 | 20.9 |
| Order code | Variant description | Certifications |
|---|---|---|
| WR000199 | RA 6300 iQ · 12 × 6 m · 60 µ · 18 m cable | — |
| WR000198 | RA 6500 iQ · 12 × 6 m · 60 µ · multiple cycles | — |
| WR000197 | RA 6700 iQ · 15 × 7 m · 60 µ · 21 m cable | — |
| WR000295 | RA 6800 iQ · 15 × 7 m · 150/60 µ dual stage | — |
| WR000296 | RA 6900 iQ · 20 × 10 m · 150/60 µ · 25 m cable | — |
The Zodiac Alpha iQ™ Pro RA series are premium corded pool robots with four-wheel drive and Wi-Fi that map the pool with Sensor Nav System™. For pools from 12 × 6 m up to 20 × 10 m they offer a 5-litre filter, 60 µ or 150/60 µ filtration, Lift System and, with iAquaLink™, a 4-year warranty.
"Ultra efficiency with a smart system": Sensor Nav System™ learns the shape and dimensions of the pool and builds a cleaning route tailored to it, covering the whole floor, walls and waterline without going over the same area again and again. Patented cyclonic suction creates a vortex inside the filter that keeps dirt in suspension, so the filter clogs later and suction power stays constant throughout the cycle. Contact+ brushes and four-wheel drive (2 motors, geared transmission) grip every surface.
The RA 6300 iQ offers quick (floor only, 1 h 15 min) and smart (floor / walls / waterline, calculated time) cycles. The RA 6500 iQ and above add multiple cycles adjustable from 0 h 30 min to 3 h 30 min, Ultra mode (2 h 45 min), a 7-day timer, a pressure sensor and remote control from the app; the RA 6700 iQ and above add a waterline-only mode (0 h 45 min) and pool water temperature monitoring. On the RA 6900 iQ the cycle time is adjustable from 30 minutes to 6 hours.
Lift System brings the robot to the waterline and reduces the effort of lifting it out of the water by 20%; the filter-full indicator, transparent filter lid and filter lighting show when maintenance is due. The 5-litre rigid filter chamber is accessed from the top; a swivel cable and caddy cart are standard on all models. The RA 6800 iQ and RA 6900 iQ offer 150 + 60 µ dual-stage filtration with a 1827 cm² area.
