Robotic Pool Cleaners

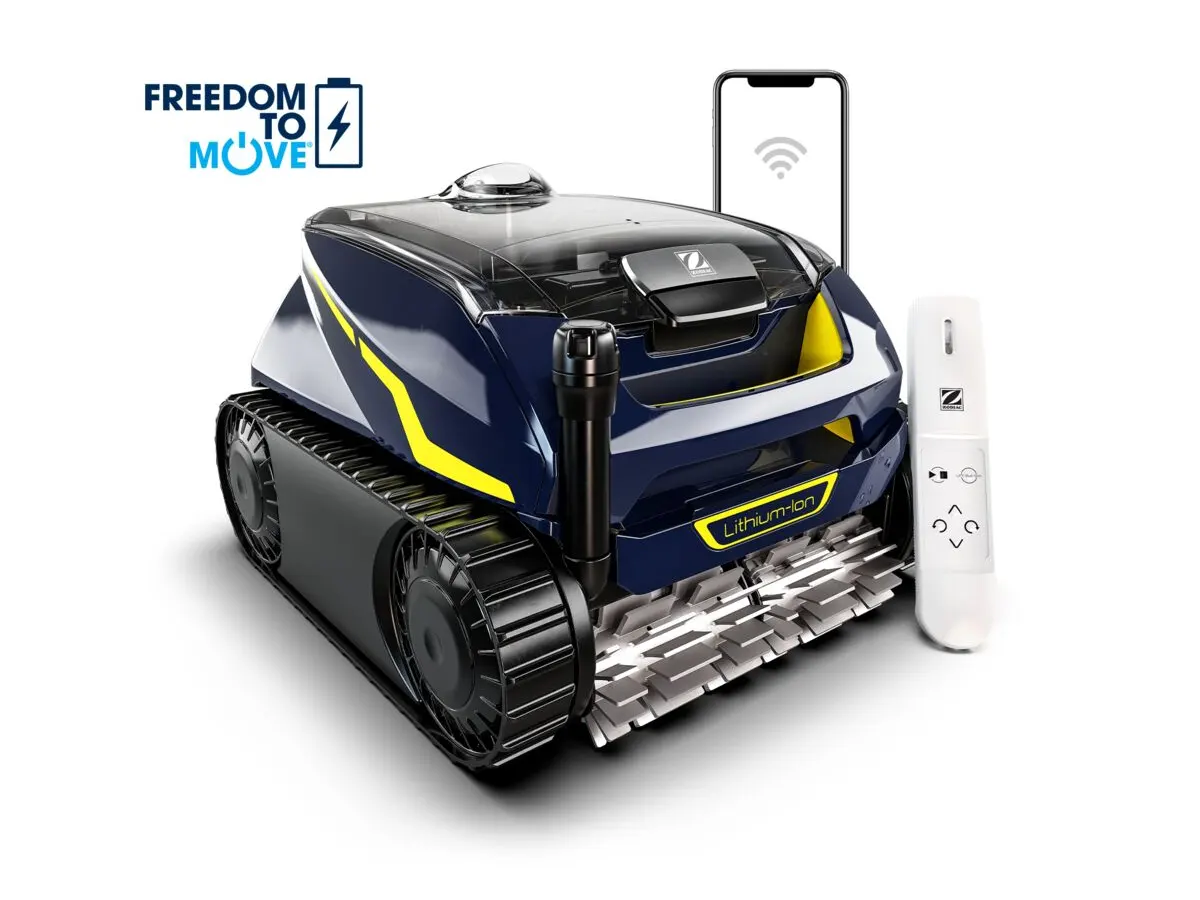

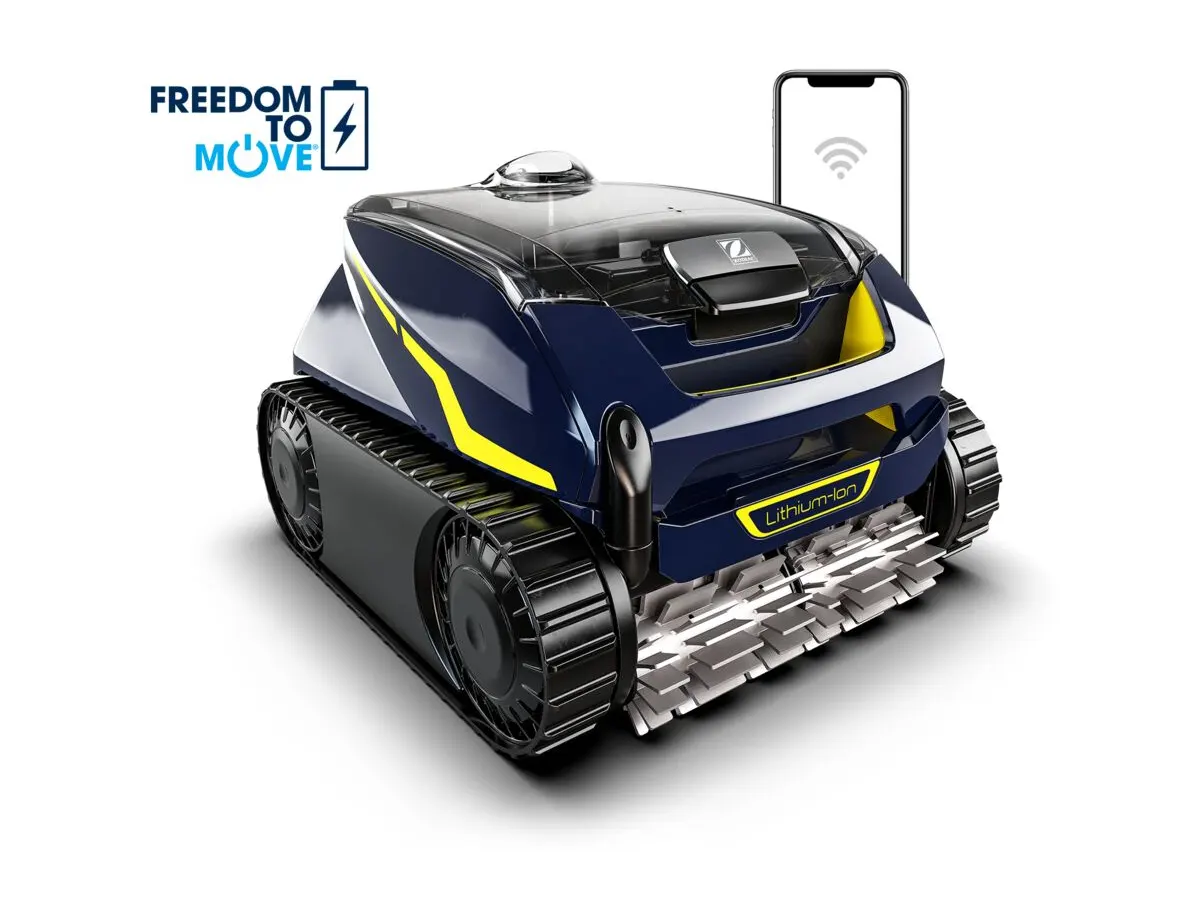

The Zodiac Freerider™ RF series are cordless pool robots that combine patented cyclonic suction with a lithium-ion battery and are controlled with the iAquaLink™ app. The RF 5200 iQ runs in 10 × 5 m pools and the RF 5400 iQ and RF 5600 iQ in 12 × 6 m pools for 120–150 minutes, with an outdoor charging station, Tap & Lift and, on the RF 5600 iQ, a LiFi remote control.
RF 5200 iQ · 10 × 5 m · 100 µ · 2 cycles
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Product type | Cordless (battery) pool robot |
|---|---|
| Battery | Lithium-ion, fast charging |
| Charging | Outdoor charging station, < 5 h |
| Control | iAquaLink™ app; RF 5600 iQ: LiFi remote control |
| Cleaning areas | Floor, walls, waterline |
| Drive | Tracks, 2 motors, geared transmission |
| Number of motors | 3 |
| Filter capacity | 4 L, top-access rigid chamber, transparent lid |
| Suction inlet | 23 cm |
| Pool type | In-ground and rigid-wall above-ground private pools |
| Pool surface | Tiles, liner, polyester, PVC, concrete |
| Dimensions | 43 × 40 × 30 cm |
| Weight | 9.2 kg (packed 14.5 kg) |
| Optional filters | R0897500 (100 µ), R0897700 (200 µ), R0897600 / R0898100 (150 / 60 µ dual stage) |
| Warranty | 3 years |
Values by order code
| Order code | |||
|---|---|---|---|
| Max. pool size (m) | 10 × 5 | 12 × 6 | 12 × 6 |
| Filtration fineness (µ) | 100 | 150 / 60 | 150 / 60 |
| Filtration area (cm²) | 526 | 1066 | 1066 |
| Battery run time (min) | 120 | 150 | 150 |
| Number of cleaning cycles | 2 | 4 | 4 |
| Multi-day cycle | – | ✓ | ✓ |
| Filter lighting | – | ✓ | ✓ |
| Lift System | – | – | ✓ |
| LiFi remote control | – | – | ✓ |
| Order code | Variant description | Certifications |
|---|---|---|
| WR000576 | RF 5200 iQ · 10 × 5 m · 100 µ · 2 cycles | — |
| WR000411 | RF 5400 iQ · 12 × 6 m · 150/60 µ · 4 cycles | — |
| WR000507 | RF 5600 iQ · 12 × 6 m · 150/60 µ · LiFi remote | — |
The Zodiac Freerider™ RF series are cordless pool robots that combine patented cyclonic suction with a lithium-ion battery and are controlled with the iAquaLink™ app. The RF 5200 iQ runs in 10 × 5 m pools and the RF 5400 iQ and RF 5600 iQ in 12 × 6 m pools for 120–150 minutes, with an outdoor charging station, Tap & Lift and, on the RF 5600 iQ, a LiFi remote control.
Freerider is designed for "performance with total freedom": no cable, no clutter. Patented cyclonic suction keeps debris in suspension inside the filter to prevent clogging; helical brushes create a constant flow of debris and capture fine, light particles instead of pushing them. S-Pattern smart navigation moves back and forth across rectangular pool floors for full coverage.
The smart battery management system ensures safe, long-life charging at the outdoor charging station while also providing convenient storage for the robot (charging < 5 h). With Tap & Lift™ technology, the robot, which goes into sleep mode after its cycle, is tapped on the lid with a pool pole; it climbs the nearest wall and waits at the waterline.
The RF 5400 iQ and RF 5600 iQ offer 150/60 µ dual-stage filtration, filter lighting and a multi-day cycle via iAquaLink (2 or 3 cycles at 24/48/72-hour intervals). The RF 5600 iQ also adds Lift System and a LiFi remote control that keeps a stable link even underwater for manual guidance and recall to the waterline.
Get a quote for Zodiac Freerider™ RF 5200 / 5400 / 5600 iQ Cordless Pool Robot
We select equipment together based on pool volume, turnover time and plant-room conditions.
We bring filters, pumps, chemicals and accessories together in a single quote.
Our engineering team answers your questions on model selection, capacity and compatibility.
We support you through installation, commissioning and periodic maintenance.
