Robotic Pool Cleaners

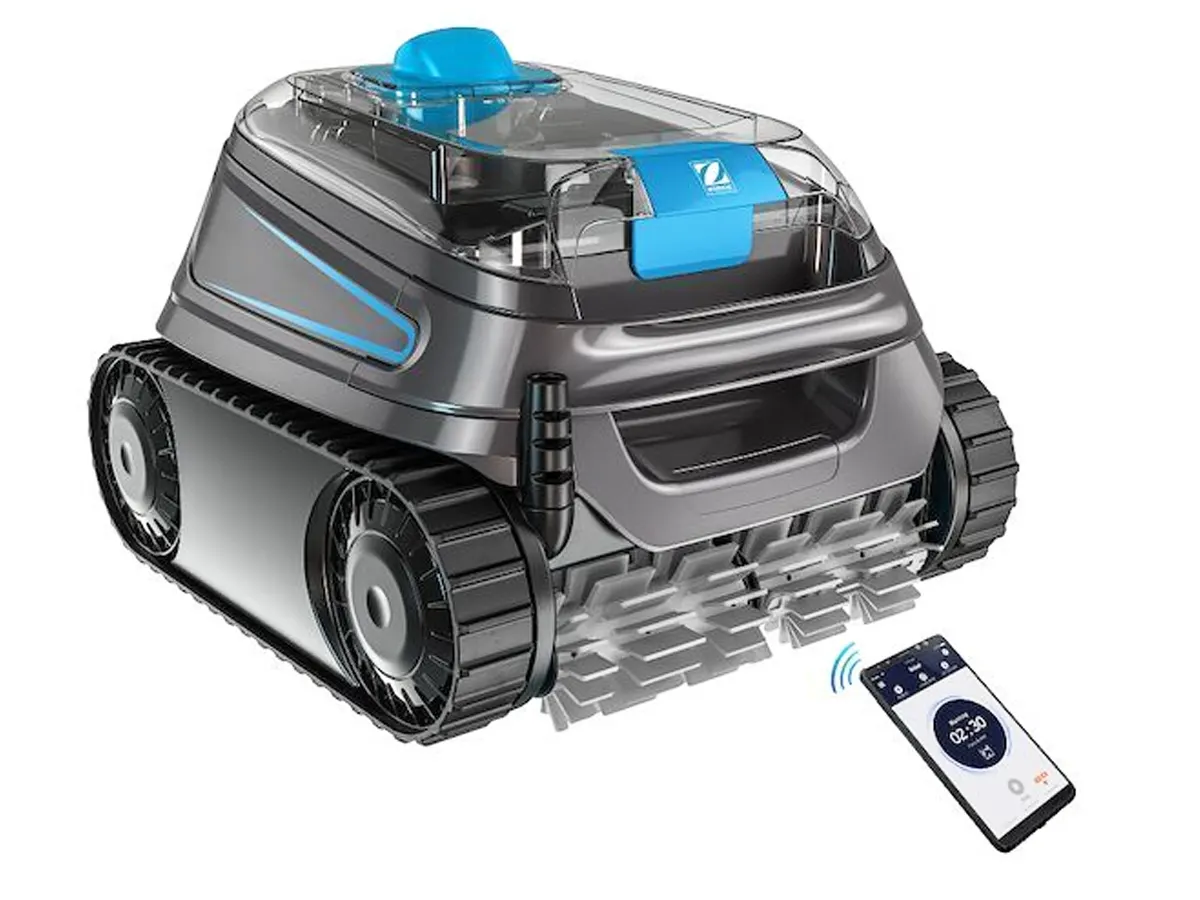

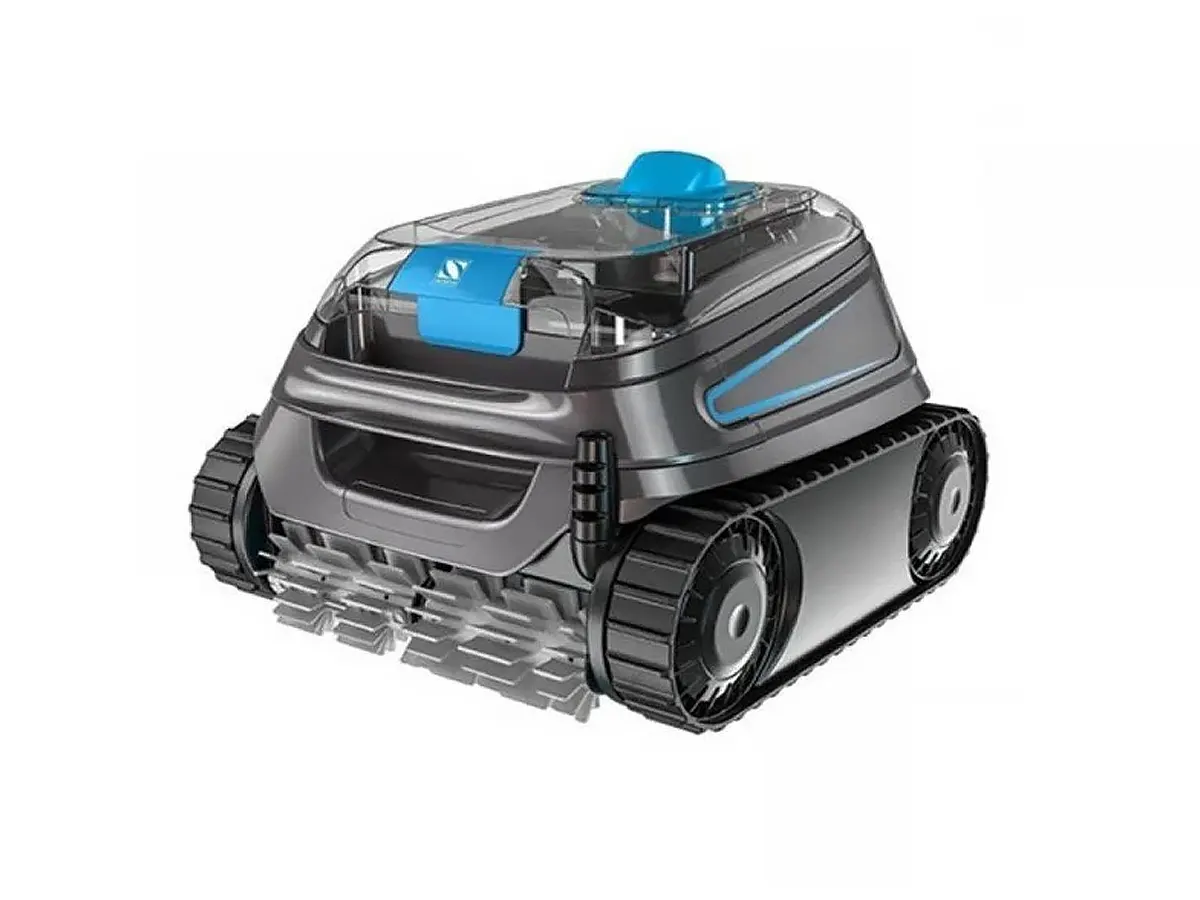

The Zodiac CNX™ series are corded pool robots that clean the floor, walls and waterline with cyclonic suction, helical brushes and tracked drive. The CNX 20 is for 10 × 5 m pools and the CNX 30/40/50 iQ for 12 × 6 m pools; the iQ models offer a 150/60 µ dual filter and iAquaLink™ control, and the CNX 50 iQ adds a swivel cable and adjustable cycle time.
CNX 20 · 10 × 5 m · 100 µ · 15 m cable
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Product type | Corded pool robot |
|---|---|
| Power supply | 220–240 V AC / 50–60 Hz, mains-connected via transformer, autonomous |
| Power | 150 W · 3 motors |
| Drive | Tracks, 2 motors, geared transmission, accelerometer + gyroscope |
| Cleaning cycle | 2 cycles · floor only 1 h 30 min · floor / walls / waterline 2 h 30 min |
| Filtration | Cyclonic suction · 4 L top-access rigid chamber · transparent lid |
| Suction inlet | 23 cm |
| Pool type | In-ground and rigid-wall above-ground private pools |
| Pool shape and floor | Rectangular, oval, freeform · flat, gentle, composite and steep slope floors |
| Pool surface | Tiles, liner, polyester, PVC, concrete |
| Dimensions | 43 × 40 × 30 cm |
| Weight | 8 kg |
| Safety | Out-of-water safety, diagnostics, electronic motor protection |
| Optional accessories | R0897500 (100 µ filter), R0897700 (200 µ filter), R0897600 / R0898100 (150 / 60 µ dual stage), R0568100 (robot cover), R0639500 (caddy cart) |
| Warranty | CNX 20: 2 years · iQ models: 3 years |
Values by order code
| Order code | ||||
|---|---|---|---|---|
| Max. pool size (m) | 10 × 5 | 12 × 6 | 12 × 6 | 12 × 6 |
| Cable length (m) | 15 | 18 | 18 | 18 |
| Filtration fineness (µ) | 100 | 150 / 60 | 150 / 60 | 150 / 60 |
| Filtration area (cm²) | 526 | 1066 | 1066 | 1066 |
| iAquaLink™ app | – | ✓ | ✓ | ✓ |
| Remote control (app) | – | – | ✓ | ✓ |
| Lift System | – | – | ✓ | ✓ |
| Filter lighting | – | ✓ | ✓ | ✓ |
| Caddy cart included | – | – | ✓ | ✓ |
| Swivel cable | – | – | – | ✓ |
| Manual cycle-time adjustment | – | – | – | ✓ |
| Packed weight (kg) | 14 | 14 | 15 | 15 |
| Order code | Variant description | Certifications |
|---|---|---|
| WR000335 | CNX 20 · 10 × 5 m · 100 µ · 15 m cable | — |
| WR000357 | CNX 30 iQ · 12 × 6 m · 150/60 µ · iAquaLink™ | — |
| WR000415 | CNX 40 iQ · 12 × 6 m · Lift System · caddy cart | — |
| WR000500 | CNX 50 iQ · 12 × 6 m · swivel cable · Lift System | — |
The Zodiac CNX™ series are corded pool robots that clean the floor, walls and waterline with cyclonic suction, helical brushes and tracked drive. The CNX 20 is for 10 × 5 m pools and the CNX 30/40/50 iQ for 12 × 6 m pools; the iQ models offer a 150/60 µ dual filter and iAquaLink™ control, and the CNX 50 iQ adds a swivel cable and adjustable cycle time.
CNX offers the same engineering platform as Voyager in a compact body: accelerometer and gyroscope sensors find their way in every pool shape and surface, and the twin-motor tracked drive climbs steep slopes. Patented cyclonic suction creates a vortex inside the filter that keeps dirt in suspension, so the filter clogs later and suction power stays constant throughout the cycle.
The floor-only (1 h 30 min) and floor / walls / waterline (2 h 30 min) cycles work with a 4-litre, top-access rigid filter chamber. The CNX 20 has a front brush and 100 µ filter, while the iQ models have front and rear helical brushes and a 150 µ + 60 µ dual-stage filter.
The CNX 30 iQ offers basic and the CNX 40 iQ and CNX 50 iQ advanced iAquaLink™ features: remote control from the app, Lift System, filter lighting and a caddy cart. The CNX 50 iQ also has a swivel cable and manual cycle-time adjustment.
