Robotic Pool Cleaners

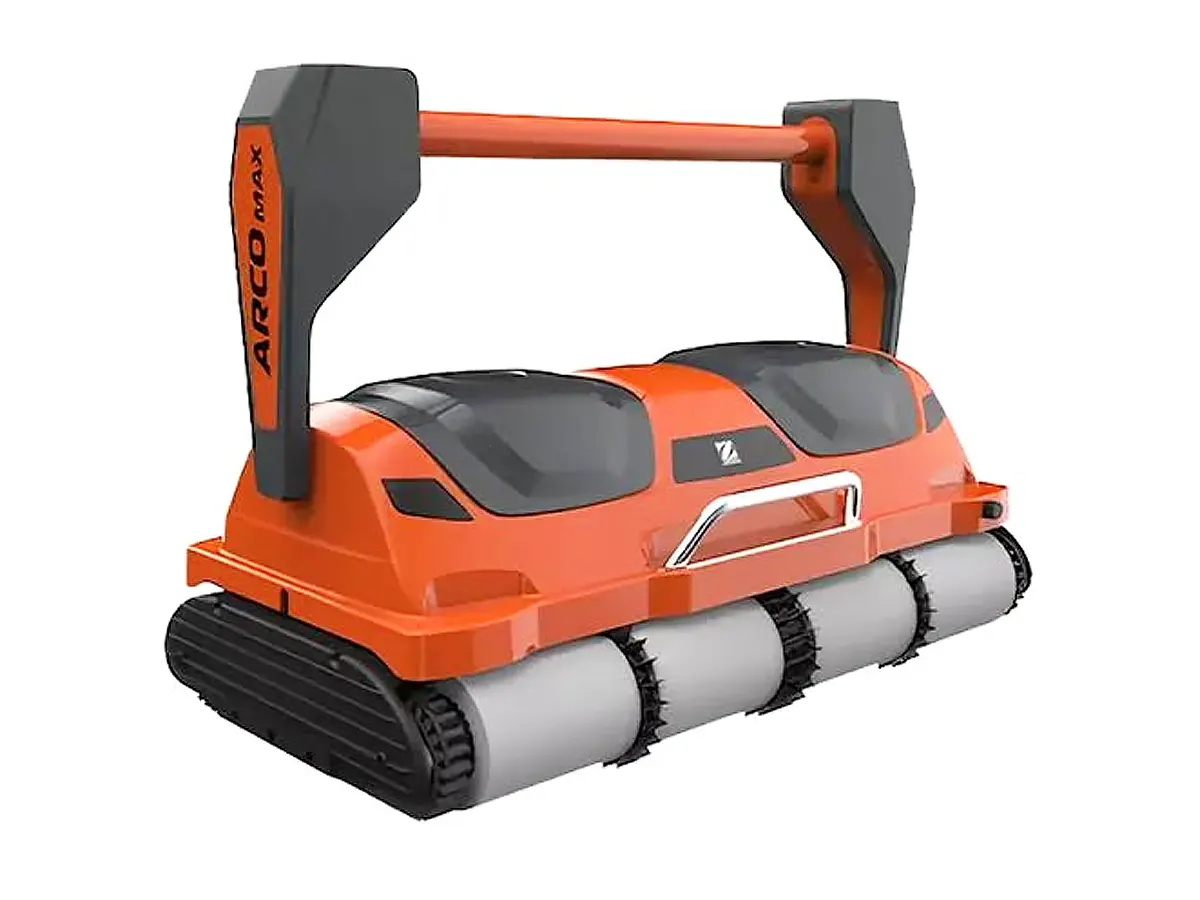

Zodiac Arco and ArcoMax are heavy-duty corded robots with infrared sensors and gyroscope + compass navigation, developed for intensive use in public pools. For pools up to 30 m (Arco) and 50 m (ArcoMax) long they offer a 40 cm / 80 cm cleaning width, a bottom-access double bag filter and Bluetooth® remote control.
Arco · up to 30 m · 40 cm width · 30 m cable
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Product type | Heavy-duty corded robot for public pools |
|---|---|
| Power supply | 110–240 V AC / 50–60 Hz · robot supply 24 V DC |
| Power | 150 W · 3 motors |
| Drive | Tracks, 2 motors, reinforced belt-driven transmission |
| Navigation | Infrared sensors, gyroscope + compass |
| Cleaning cycle | Multiple cycles · floor only · floor / walls / waterline · staggered start over 2 cycles (3 h) |
| Filtration | Bottom-access double bag filter · filter-full indicator |
| Brushes | PVA |
| Control | Bluetooth® remote control and free app |
| Max. operating depth | 5 m |
| Pool type | In-ground and rigid-wall above-ground public pools |
| Pool shape and floor | Rectangular, oval, freeform · flat, gentle, composite and steep slope floors |
| Pool surface | Tiles, liner, polyester, PVC, concrete |
| Included | Caddy cart, capacitive power supply, double bag filter, remote control |
| Warranty | 2 years |
Values by order code
| Order code | ||
|---|---|---|
| Max. pool length (m) | 30 | 50 |
| Cleaning width (cm) | 40 | 80 |
| Cable length (m) | 30 | 40 |
| Filter capacity (kg) | 3.1 | 5.1 |
| Robot dimensions (cm) | 43 × 43 × 54 | 80 × 43 × 54 |
| Robot weight (kg) | 9 | 18 |
| Turbo mode | – | ✓ |
| Order code | Variant description | Certifications |
|---|---|---|
| WR000396 | Arco · up to 30 m · 40 cm width · 30 m cable | — |
| WR000397 | ArcoMax · up to 50 m · 80 cm width · 40 m cable · turbo mode | — |
Zodiac Arco and ArcoMax are heavy-duty corded robots with infrared sensors and gyroscope + compass navigation, developed for intensive use in public pools. For pools up to 30 m (Arco) and 50 m (ArcoMax) long they offer a 40 cm / 80 cm cleaning width, a bottom-access double bag filter and Bluetooth® remote control.
The Arco family is designed for professional use in public swimming pools of hotels, residential complexes and sports centres. Infrared sensors detect walls and obstacles, and a smart navigation system assisted by gyroscope and compass moves the robot along the pool in straight lanes. Belt-driven transmission with reinforced components and twin-motor tracked drive provide durability under heavy-duty conditions.
In multi-cycle mode, floor only or floor / walls / waterline is selected; with a staggered start of 2 cleaning cycles (3 h) and start delay of up to 3 hours, the robot runs while the facility is closed. PVA brushes grip tiled and slippery surfaces, and the Bluetooth® remote and free app allow manual steering. The bottom-access double bag filter and filter-full indicator ensure quick maintenance; the ArcoMax also has a turbo mode.
Get a quote for Zodiac Arco / ArcoMax Commercial Pool Robot
We select equipment together based on pool volume, turnover time and plant-room conditions.
We bring filters, pumps, chemicals and accessories together in a single quote.
Our engineering team answers your questions on model selection, capacity and compatibility.
We support you through installation, commissioning and periodic maintenance.
