Pool Pumps

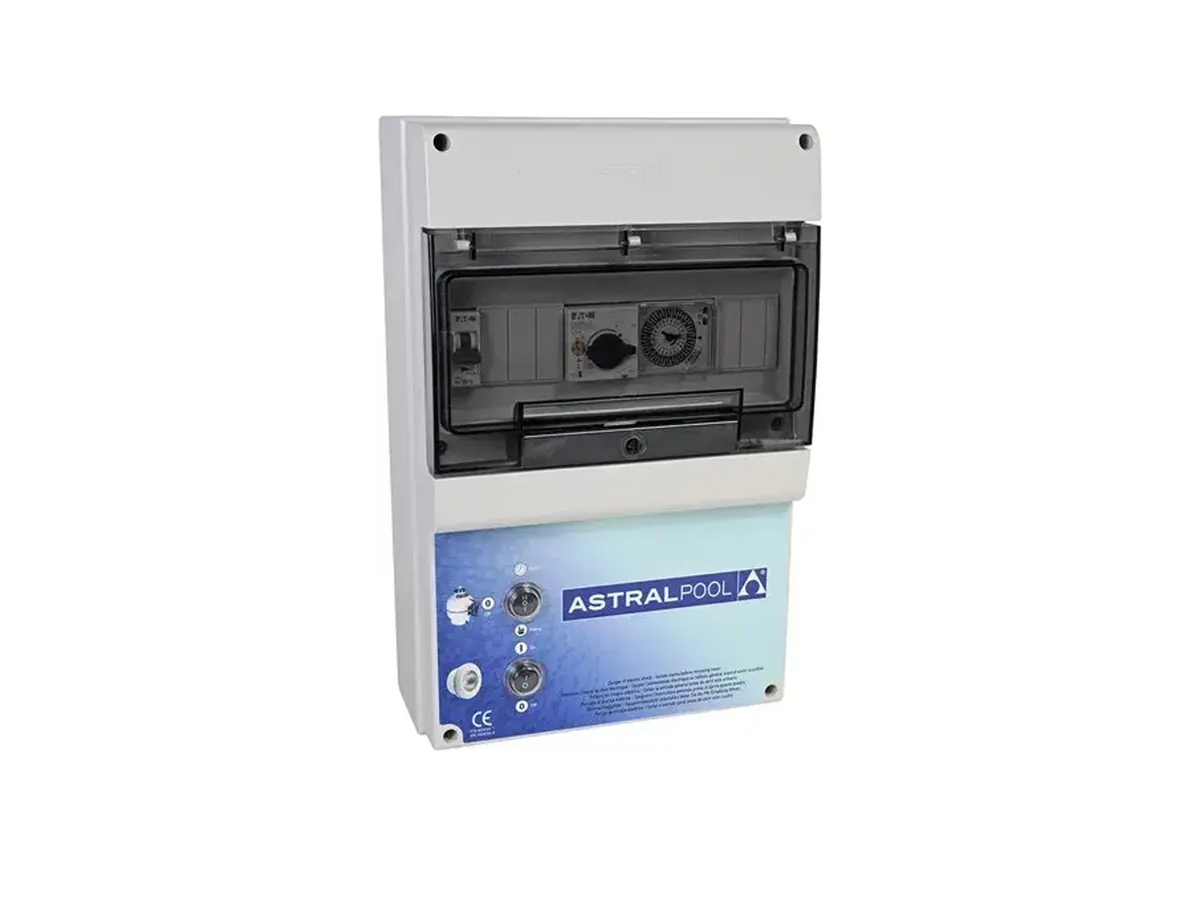

AstralPool control panels are IP-65 electrical panels with a lockable transparent door that manage the pool pump with thermal overload protection (1.6–10 A), a contactor and a 24-hour programmable timer. Types A–D are chosen by pump power; 8 series and 30 codes cover underwater lights, LEDs and twin-pump control.
Pump (overload protected) · Type A · CE, EN 16582-1
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Protection class | IP-65, lockable transparent door with key |
|---|---|
| Supply compatibility | 220/240 V 1-ph · 380/415 V 3-ph · 220/230 V 3-ph, 50/60 Hz |
| Overload protection | Thermal, 1.6 – 10 A |
| Programming | 24-hour programmable timer |
| Operating mode | 3-position switch: Auto / 0 / Manual |
| Type A (1.6–2.5 A) | ¼ HP 1-ph 230 V · ¾–1 HP 3-ph 400 V · ½ HP 3-ph 230 V |
| Type B (2.5–4 A) | ½ HP 1-ph 230 V · 1.5–2 HP 3-ph 400 V · ¾–1 HP 3-ph 230 V |
| Type C (4–6.3 A) | ¾–1 HP 1-ph 230 V · 3 HP 3-ph 400 V · 1.5 HP 3-ph 230 V |
| Type D (6–10 A) | 1.5 HP 1-ph 230 V · 4 HP 3-ph 400 V · 2–3 HP 3-ph 230 V |
| Standard | EN 16582-1:2015 |
Values by model
| Model | ||||||||
|---|---|---|---|---|---|---|---|---|
| Number of pumps | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 1 |
| Lighting output | – | ✓ | 230 V 10 A | 230 V 10 A | 12 V LED × 1 | 12 V 315 VA × 1 | 2 × 300 W | 3 × 300 W |
| Transformer | – | – | – | – | 12 V 100 VA | 12 V 315 VA | 230/12 V 600 VA | 230/12 V 600 + 300 VA |
| Supply | 1~ / 3~ | 1~ / 3~ | 1~ | 3~ | 1~ / 3~ | 1~ / 3~ | 1~ / 3~ | 1~ / 3~ |
| Weight (kg) | 1.9 | 2.3 | 2.1 | 2.4 | 4.6 | 6 | 9.5 | 10.4 |
| Order code | Variant description | Certifications |
|---|---|---|
| 25717 | Pump (overload protected) · Type A | CE, EN 16582-1 |
| 25718 | Pump (overload protected) · Type B | CE, EN 16582-1 |
| 25719 | Pump (overload protected) · Type C | CE, EN 16582-1 |
| 25720 | Pump (overload protected) · Type D | CE, EN 16582-1 |
| 25721 | Pump + lighting · Type A | CE, EN 16582-1 |
| 25722 | Pump + lighting · Type B | CE, EN 16582-1 |
| 25723 | Pump + lighting · Type C | CE, EN 16582-1 |
| 25724 | Pump + lighting · Type D | CE, EN 16582-1 |
| 25725 | Pump + RCD-protected projectors, single-phase · Type A | CE, EN 16582-1 |
| 25726 | Pump + RCD-protected projectors, single-phase · Type B | CE, EN 16582-1 |
| 25727 | Pump + RCD-protected projectors, single-phase · Type C | CE, EN 16582-1 |
| 25728 | Pump + RCD-protected projectors, single-phase · Type D | CE, EN 16582-1 |
| 25729 | Pump + RCD-protected projectors, three-phase · Type A | CE, EN 16582-1 |
| 25730 | Pump + RCD-protected projectors, three-phase · Type B | CE, EN 16582-1 |
| 25731 | Pump + RCD-protected projectors, three-phase · Type C | CE, EN 16582-1 |
| 25732 | Pump + RCD-protected projectors, three-phase · Type D | CE, EN 16582-1 |
| 74991 | Pump + 1 set of LED underwater lights · Type A | CE, EN 16582-1 |
| 74992 | Pump + 1 set of LED underwater lights · Type B | CE, EN 16582-1 |
| 74993 | Pump + 1 set of LED underwater lights · Type C | CE, EN 16582-1 |
| 74994 | Pump + 1 set of LED underwater lights · Type D | CE, EN 16582-1 |
| 69916 | Pump + 1 underwater light (12 V 315 VA) · Type A | CE, EN 16582-1 |
| 69917 | Pump + 1 underwater light (12 V 315 VA) · Type B | CE, EN 16582-1 |
| 69918 | Pump + 1 underwater light (12 V 315 VA) · Type C | CE, EN 16582-1 |
| 69919 | Pump + 1 underwater light (12 V 315 VA) · Type D | CE, EN 16582-1 |
| 70423 | 2 pumps + 2 underwater lights · Type C + D | CE, EN 16582-1 |
| 70424 | 2 pumps + 2 underwater lights · Type D + D | CE, EN 16582-1 |
| 70425 | 1 pump + 3 underwater lights · Type A | CE, EN 16582-1 |
| 70426 | 1 pump + 3 underwater lights · Type B | CE, EN 16582-1 |
| 70427 | 1 pump + 3 underwater lights · Type C | CE, EN 16582-1 |
| 70428 | 1 pump + 3 underwater lights · Type D | CE, EN 16582-1 |
AstralPool control panels are IP-65 electrical panels with a lockable transparent door that manage the pool pump with thermal overload protection (1.6–10 A), a contactor and a 24-hour programmable timer. Types A–D are chosen by pump power; 8 series and 30 codes cover underwater lights, LEDs and twin-pump control.
The control panels are IP-65 rated and have a lockable transparent door with key. All units are compatible with 220/240 V single-phase (P+N+E), 380/415 V three-phase (3P+N+E) and 220/230 V three-phase (3P+E) 50/60 Hz supplies. They include a 24-hour timer with hourly programming, a connection for remote pump control (on/off) and inputs for auxiliary equipment such as water temperature and level control.
Thermal overload protection (1.6–10 A), a contactor and a 3-position modular switch (Auto / 0 / Manual) are standard on every series. Lighting series offer a protected 230 V 10 A projector output, a single LED set output with a 12 V 100 VA transformer, a 12 V 315 VA single-light output, and control of 2 or 3 300 W underwater lights via a 230/12 V 600 VA (+300 VA) transformer; the twin-pump panel protects two pumps separately.
Products are supplied with a wiring diagram, connection diagram, installation instructions, CE declaration of conformity, ready cable entries and 4 screws and plugs for wall fixing. The panel model must be selected as type A, B, C or D according to the pump's rated voltage and current.
