Pool Pumps
AstralPool Kivu (3–5.5 HP) is a high-efficiency plastic centrifugal pump running at 1500 rpm for public pools. It offers 78 % hydraulic efficiency without pre-filter (ISO 9906), noise as low as 59 dBA, a seawater-rated mechanical seal and an IE3 motor, and is supplied with its pre-filter.
3 HP · three-phase 230/400 V · with pre-filter · GS, IE3, ISO 9906
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Pump type | Centrifugal, plastic body, with pre-filter |
|---|---|
| Speed | 1500 rpm |
| Power | 3 / 4 / 5.5 HP |
| Power supply | 230/400 V or 400/690 V three-phase, 50 Hz |
| Hydraulic efficiency | 78 % (without pre-filter, ISO 9906) |
| Noise level | As low as 59 dBA |
| Mechanical seal | Seawater-rated |
| Motor efficiency | IE3 |
| Discharge connection (DNi) | 100 – 4" |
| Quality mark | GS |

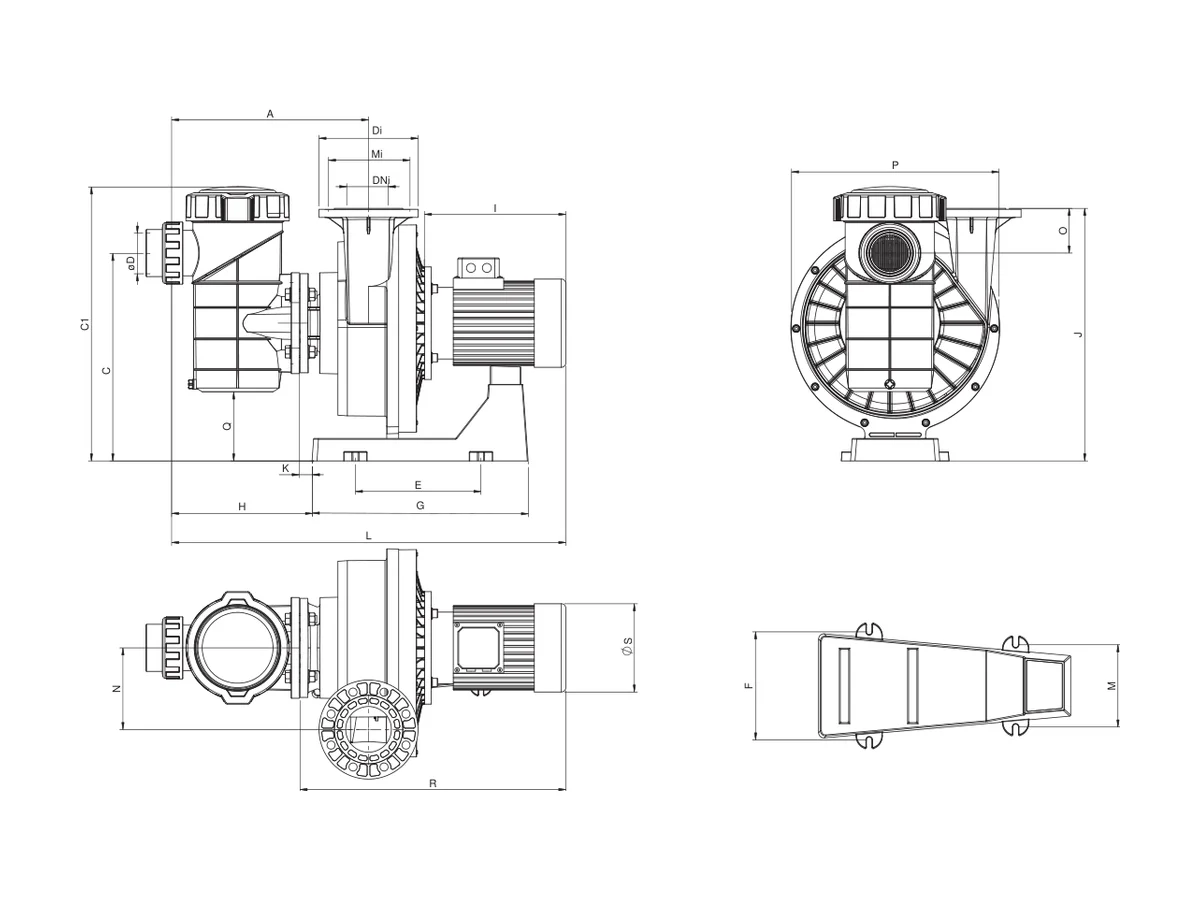

Values by model
| Model | |||
|---|---|---|---|
| A (mm) | 440 | 440 | 440 |
| D (mm) | 90 | 90 | 90 |
| DI (mm) | 220 | 220 | 220 |
| DNi | 100 – 4" | 100 – 4" | 100 – 4" |
| C (mm) | 462 | 462 | 462 |
| C1 (mm) | 610 | 610 | 610 |
| E (mm) | 279 | 279 | 279 |
| F (mm) | 206 | 206 | 206 |
| G (mm) | 480 | 480 | 480 |
| H (mm) | 313 | 313 | 313 |
| I (mm) | 320 | 320 | 345 |
| J (mm) | 561 | 561 | 561 |
| K (mm) | 29.5 | 29.5 | 156 |
| L (mm) | 882 | 882 | 906 |
| M (mm) | 157 | 157 | 157 |
| N (mm) | 181.5 | 181.5 | 181.5 |
| O (mm) | 100 | 100 | 100 |
| P (mm) | 460 | 460 | 460 |
| Q (mm) | 154 | 154 | 154 |
| R (mm) | 590 | 590 | 621 |
| Mi (mm) | 180 | 180 | 180 |
| Weight (kg) | 56.4 | 59.4 | 66.4 |
| Order code | Variant description | Certifications |
|---|---|---|
| 66047 | 3 HP · three-phase 230/400 V · with pre-filter | GS, IE3, ISO 9906 |
| 63042 | 3 HP · three-phase 400/690 V · with pre-filter | GS, IE3, ISO 9906 |
| 66048 | 4 HP · three-phase 230/400 V · with pre-filter | GS, IE3, ISO 9906 |
| 63043 | 4 HP · three-phase 400/690 V · with pre-filter | GS, IE3, ISO 9906 |
| 66049 | 5.5 HP · three-phase 230/400 V · with pre-filter | GS, IE3, ISO 9906 |
| 63044 | 5.5 HP · three-phase 400/690 V · with pre-filter | GS, IE3, ISO 9906 |
AstralPool Kivu (3–5.5 HP) is a high-efficiency plastic centrifugal pump running at 1500 rpm for public pools. It offers 78 % hydraulic efficiency without pre-filter (ISO 9906), noise as low as 59 dBA, a seawater-rated mechanical seal and an IE3 motor, and is supplied with its pre-filter.
Kivu is a high-efficiency plastic centrifugal pump running at 1500 rpm for public pools. The series comes in three powers, 3 HP, 4 HP and 5.5 HP, with 230/400 V and 400/690 V three-phase motor options.
Thanks to its low-speed design, noise drops to as little as 59 dBA. Hydraulic efficiency without pre-filter is 78 % according to ISO 9906. A high-quality mechanical seal suitable for seawater and an IEC high-efficiency (IE3) motor are used.
The standard motor shaft is compatible with motors from any manufacturer, simplifying service and spare parts supply. The GS-marked pump is shipped with its pre-filter in two packages (pump + pre-filter).
