Pool Pumps
AstralPool Kivu (7.5–15 HP) is a high-efficiency plastic centrifugal pump running at 1500 rpm for large public pools. It offers 85 % hydraulic efficiency without pre-filter (ISO 9906), noise as low as 66 dBA, an IE3 motor and DN150 suction / DN125 discharge connections, and is supplied with its pre-filter.
7.5 HP · three-phase 230/400 V · with pre-filter · GS, IE3, ISO 9906
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Pump type | Centrifugal, plastic body, with pre-filter |
|---|---|
| Speed | 1500 rpm |
| Power | 7.5 / 10 / 15 HP |
| Power supply | 230/400 V or 400/690 V three-phase, 50 Hz |
| Hydraulic efficiency | 85 % (without pre-filter, ISO 9906) |
| Noise level | As low as 66 dBA |
| Mechanical seal | Seawater-rated |
| Motor efficiency | IE3 (Premium Efficiency) |
| Connection (in/out) | DN150–6" suction, DN125–5" discharge |
| Quality mark | GS |

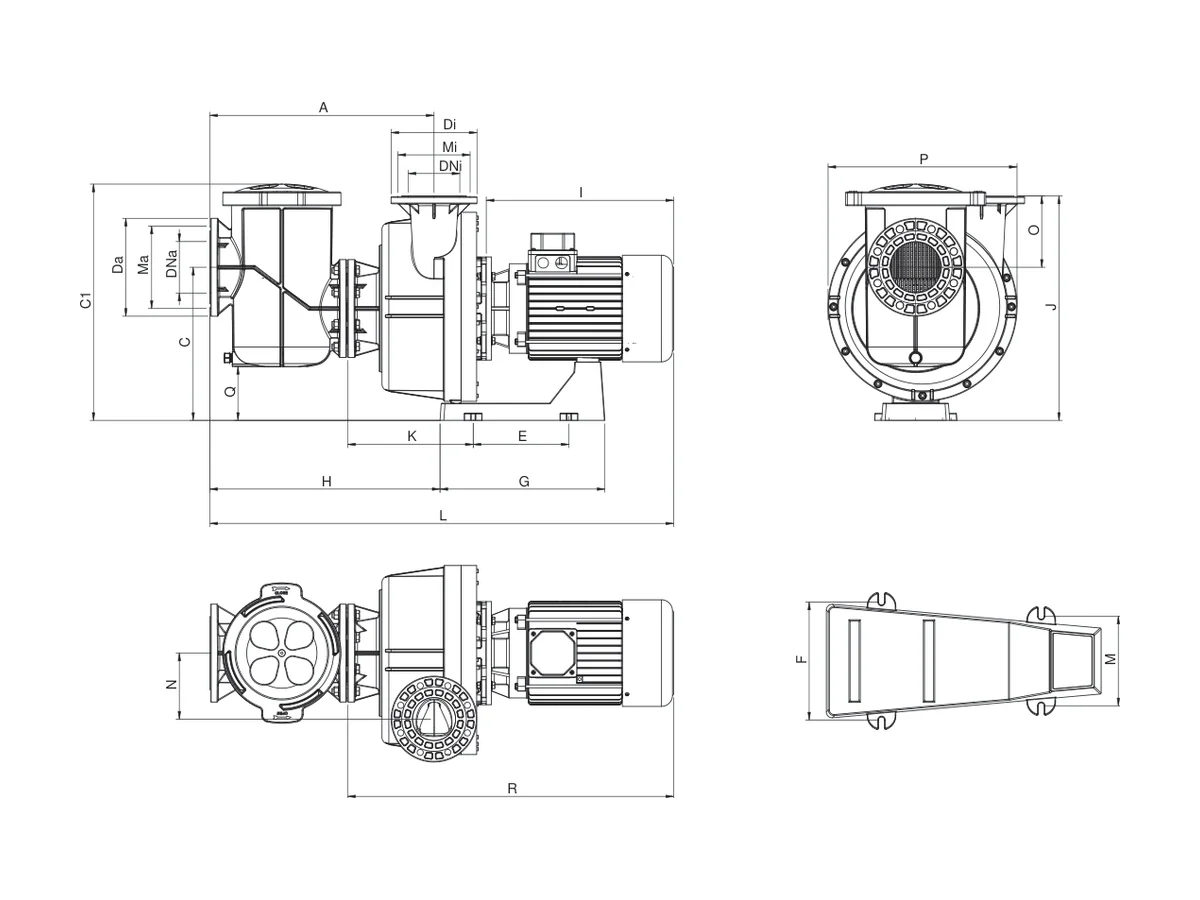

Values by model
| Model | |||
|---|---|---|---|
| A (mm) | 653 | 653 | 653 |
| DA (mm) | 285 | 285 | 285 |
| DI (mm) | 250 | 250 | 250 |
| DNA | 150 – 6" | 150 – 6" | 150 – 6" |
| DNi | 125 – 5" | 125 – 5" | 125 – 5" |
| C (mm) | 446 | 446 | 446 |
| C1 (mm) | 688 | 688 | 688 |
| E (mm) | 279 | 279 | 279 |
| F (mm) | 206 | 206 | 206 |
| G (mm) | 290 | 290 | 290 |
| H (mm) | 540 | 540 | 670 |
| I (mm) | 410 | 445 | 510 |
| J (mm) | 653 | 653 | 653 |
| K (mm) | 141 | 141 | 271 |
| L (mm) | 1215 | 1250 | 1315 |
| M (mm) | 157 | 157 | 157 |
| N (mm) | 192 | 192 | 192 |
| O (mm) | 208 | 208 | 208 |
| P (mm) | 550 | 550 | 550 |
| Q (mm) | 157 | 157 | 157 |
| R (mm) | 815 | 850 | 915 |
| Ma (mm) | 240 | 240 | 240 |
| Mi (mm) | 210 | 210 | 210 |
| Weight (kg) | 107.4 | 117.9 | 151.2 |
| Order code | Variant description | Certifications |
|---|---|---|
| 56633 | 7.5 HP · three-phase 230/400 V · with pre-filter | GS, IE3, ISO 9906 |
| 56634 | 7.5 HP · three-phase 400/690 V · with pre-filter | GS, IE3, ISO 9906 |
| 56635 | 10 HP · three-phase 230/400 V · with pre-filter | GS, IE3, ISO 9906 |
| 56637 | 10 HP · three-phase 400/690 V · with pre-filter | GS, IE3, ISO 9906 |
| 56638 | 15 HP · three-phase 230/400 V · with pre-filter | GS, IE3, ISO 9906 |
| 56639 | 15 HP · three-phase 400/690 V · with pre-filter | GS, IE3, ISO 9906 |
AstralPool Kivu (7.5–15 HP) is a high-efficiency plastic centrifugal pump running at 1500 rpm for large public pools. It offers 85 % hydraulic efficiency without pre-filter (ISO 9906), noise as low as 66 dBA, an IE3 motor and DN150 suction / DN125 discharge connections, and is supplied with its pre-filter.
The large-body version of Kivu is a high-efficiency plastic centrifugal pump running at 1500 rpm for public pools that need high flow rates. The series comes in three powers, 7.5 HP, 10 HP and 15 HP, with 230/400 V and 400/690 V three-phase motors.
Noise drops to as little as 66 dBA, and hydraulic efficiency without pre-filter is 85 % according to ISO 9906. A high-quality mechanical seal suitable for seawater and an IEC high-efficiency (IE3, Premium Efficiency) motor are used.
The standard motor shaft is compatible with motors from any manufacturer. The GS-marked pump has a 150–6" suction and 125–5" discharge port and is shipped with its pre-filter in two packages (pump + pre-filter).
