This application, carried out as part of the Regnum project in Antalya, involved the design and delivery of a custom HDPE pump sump tank sized precisely to the facility's hydraulic requirements.
The tank, with a diameter of Ø2400 mm and a height of 3000 mm, was engineered with a durable HDPE body for long-term service and delivered on a turnkey basis.
Throughout the project, manufacturing, equipment compatibility, on-site application, and installation stages were managed as a unified workflow to ensure full compliance with technical specifications.
4 Stages
Execution Process
7 Images
Project Gallery
10 Specs
Technical Details
6 Notes
Engineering Notes
Ø2400 mm HDPE pump sump tank technical drawing – dimensions and configuration detail.
The tank body was custom-manufactured from high-density polyethylene (HDPE). HDPE is the preferred material for pump sump applications due to its chemical resistance, long service life, and corrosion immunity.
The Ø2400 mm diameter and 3000 mm height requirements were calculated based on the facility's hydraulic capacity, and these dimensions were applied with precision during manufacturing.

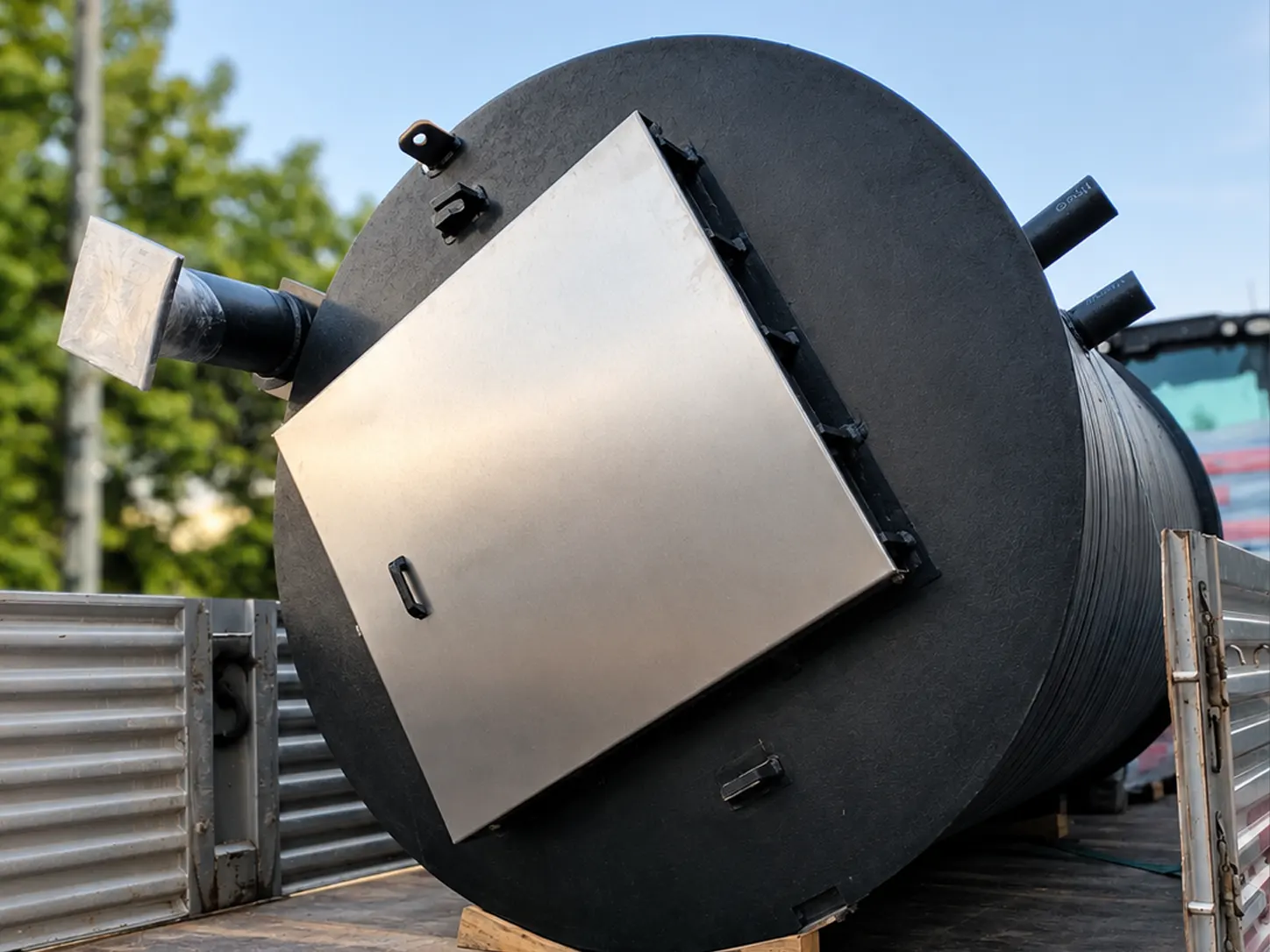

Stainless steel lid and connection components.

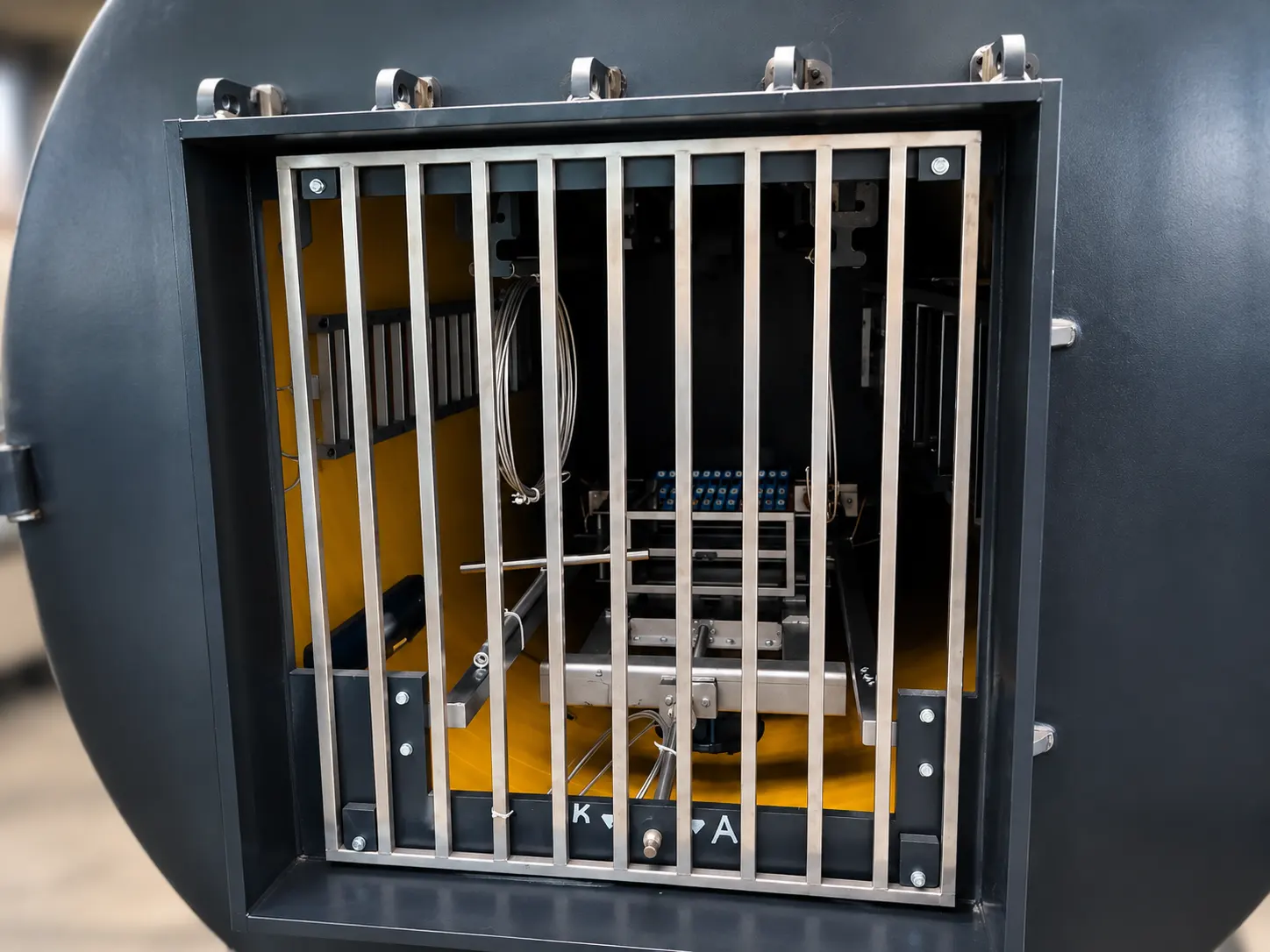

Stainless steel was used for critical connection points such as the top lid and grating. This choice ensures mechanical durability and hygienic operation under long-term field conditions.

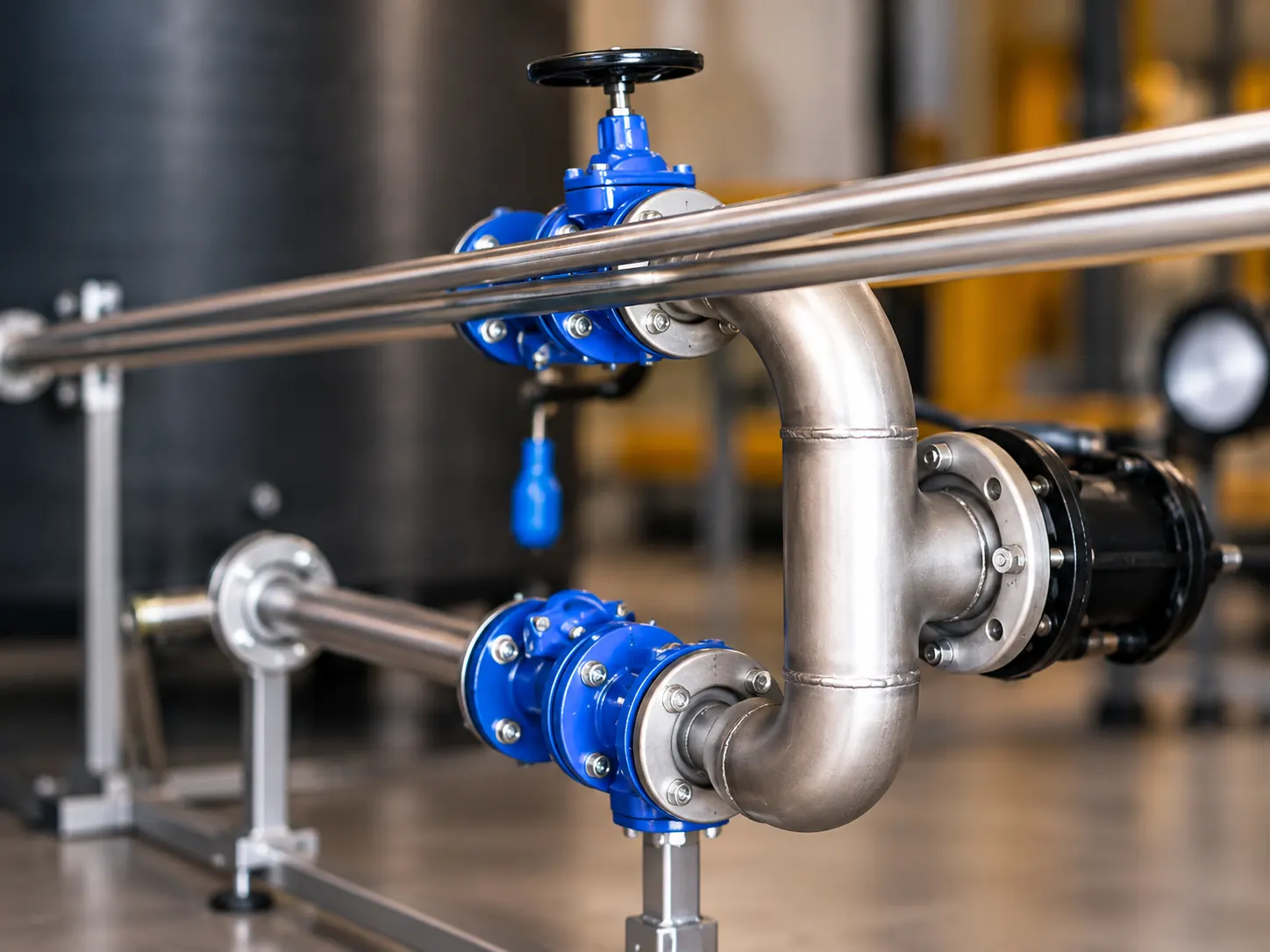

All connection components were configured to the project's technical specifications, with equipment compatibility and installation requirements evaluated together during the on-site phase.

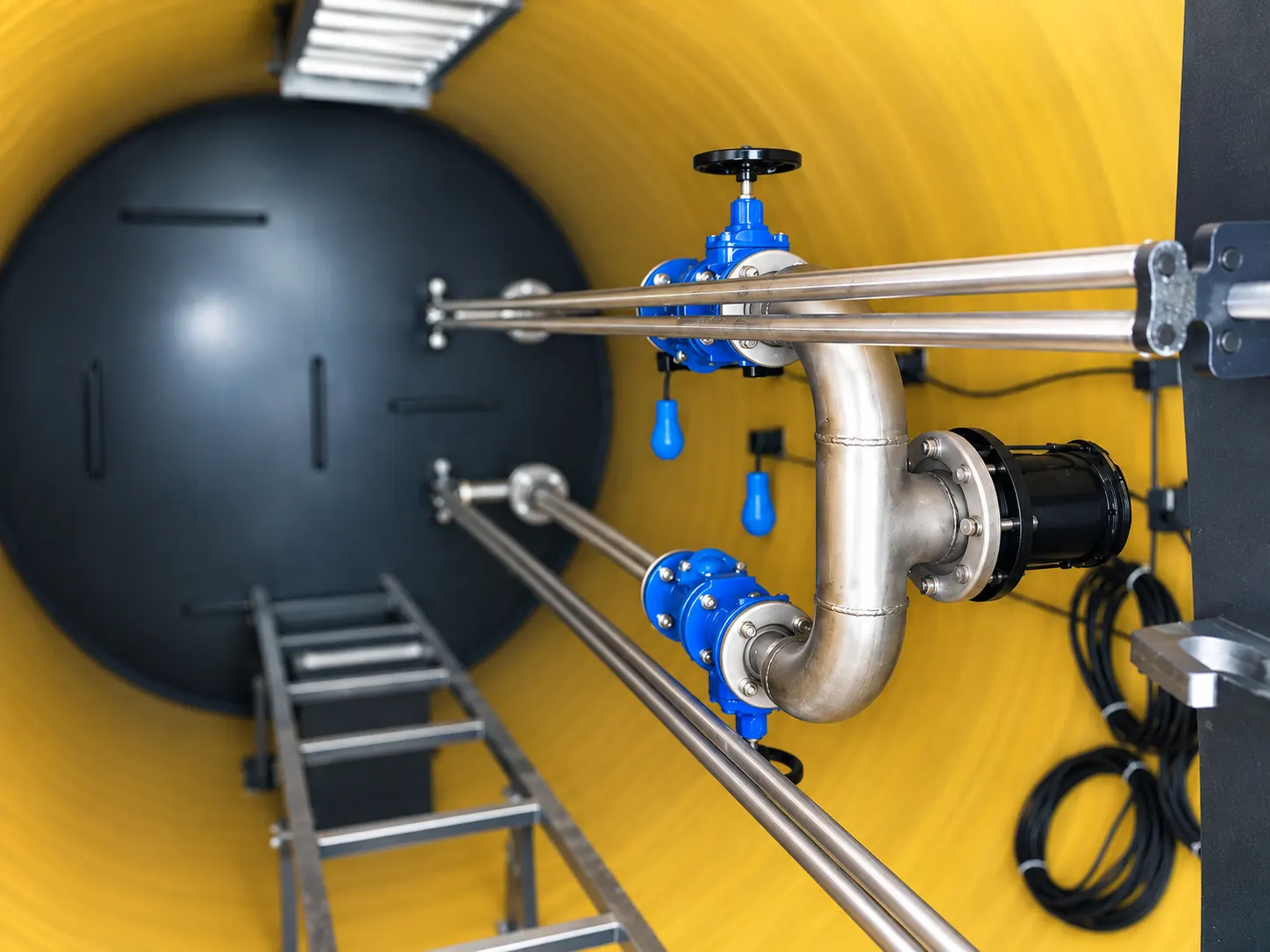

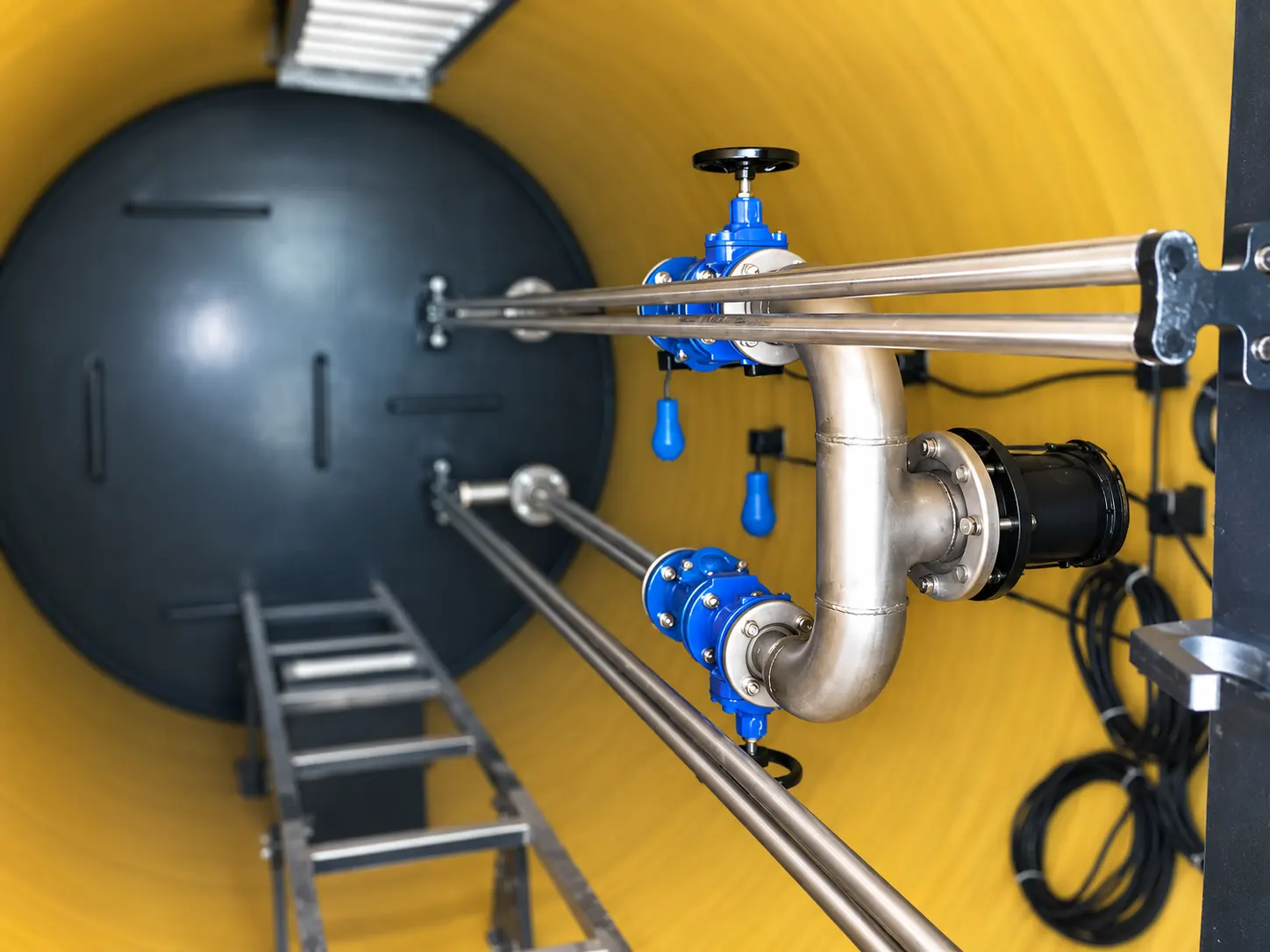

Completed on-site pump sump tank detail.
Manufacturing, equipment compatibility, on-site application, and installation stages were managed as a single integrated process. The Regnum Pump Sump Tank was delivered as a complete turnkey solution covering the entire project lifecycle.
Technical requirements were assessed on-site during field execution, allowing any potential conflicts to be resolved proactively, resulting in a smooth and complete installation.
Every project has unique field conditions and technical requirements. In the Regnum Pump Sump Tank application, tank dimensions, material selection, and site requirements were evaluated together to create a project-specific solution.
Artemis Pool manufactures pump sump tank systems from HDPE in various diameter and height configurations, tailored to each project.
Tank Type: Pump Sump Tank
Body Material: HDPE
Diameter: Ø2400 mm
Height: 3000 mm
Location: Antalya, Turkey
Delivery: Turnkey project
