Pool Pumps
Zodiac FloPro is a self-priming single-speed pool pump with a corrosion-resistant polypropylene body, running at 2850 rpm. Its 9 single-phase and three-phase models from 0.5 to 2 HP deliver 10.3–27 m³/h at 10 m, with a large 2.6 L pre-filter, IPX5 protection, Easy Retrofit compatibility and a 3-year warranty.
FloPro 50M · 0.5 HP (0.37 kW) · single-phase · 10.3 m³/h (10 m) · IE3
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Pump type | Self-priming pool pump, single speed |
|---|---|
| Motor type | Asynchronous motor, TEFC, Class F insulation |
| Efficiency | > 80 % (IE3 standard) |
| Power range (P2) | 0.5 – 2 HP (0.37 – 1.5 kW) |
| Nominal speed | 2850 rpm |
| Flow (at 10 m) | 10.3 – 27 m³/h |
| Max. head | 17.8 – 24.5 m |
| Filter basket volume | 2.6 L |
| Connection | DN50 & DN63 (2" threaded, 63/50 mm unions included) |
| Water type | Fresh and salt water, max. 6 g/L (6000 ppm) |
| Max. water temperature | 35 °C |
| Protection class | IPX5 |
| Warranty | 3 years |
Values by order code
| Order code | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Output power P2 (HP) | 0.5 | 0.75 | 0.75 | 1 | 1 | 1.5 | 1.5 | 2 | 2 |
| Output power P2 (kW) | 0.37 | 0.55 | 0.55 | 0.75 | 0.75 | 1 | 1 | 1.5 | 1.5 |
| Max. current (A) | 3.5 | 3.5 | 1.2 | 4.2 | 1.6 | 6 | 3.2 | 7.6 | 3.5 |
| Supply, 50 Hz | 1~ | 1~ | 3~ | 1~ | 3~ | 1~ | 3~ | 1~ | 3~ |
| Flow at 10 m (m³/h) | 10.3 | 13.2 | 13.2 | 15.8 | 15.8 | 20.8 | 20.8 | 27 | 27 |
| Max. flow (m³/h) | 16.8 | 18.6 | 18.6 | 22.9 | 22.9 | 27.4 | 27.4 | 35.5 | 35.5 |
| Max. head (m) | 17.8 | 20.7 | 20.7 | 21.5 | 21.5 | 22.3 | 22.3 | 24.5 | 24.5 |

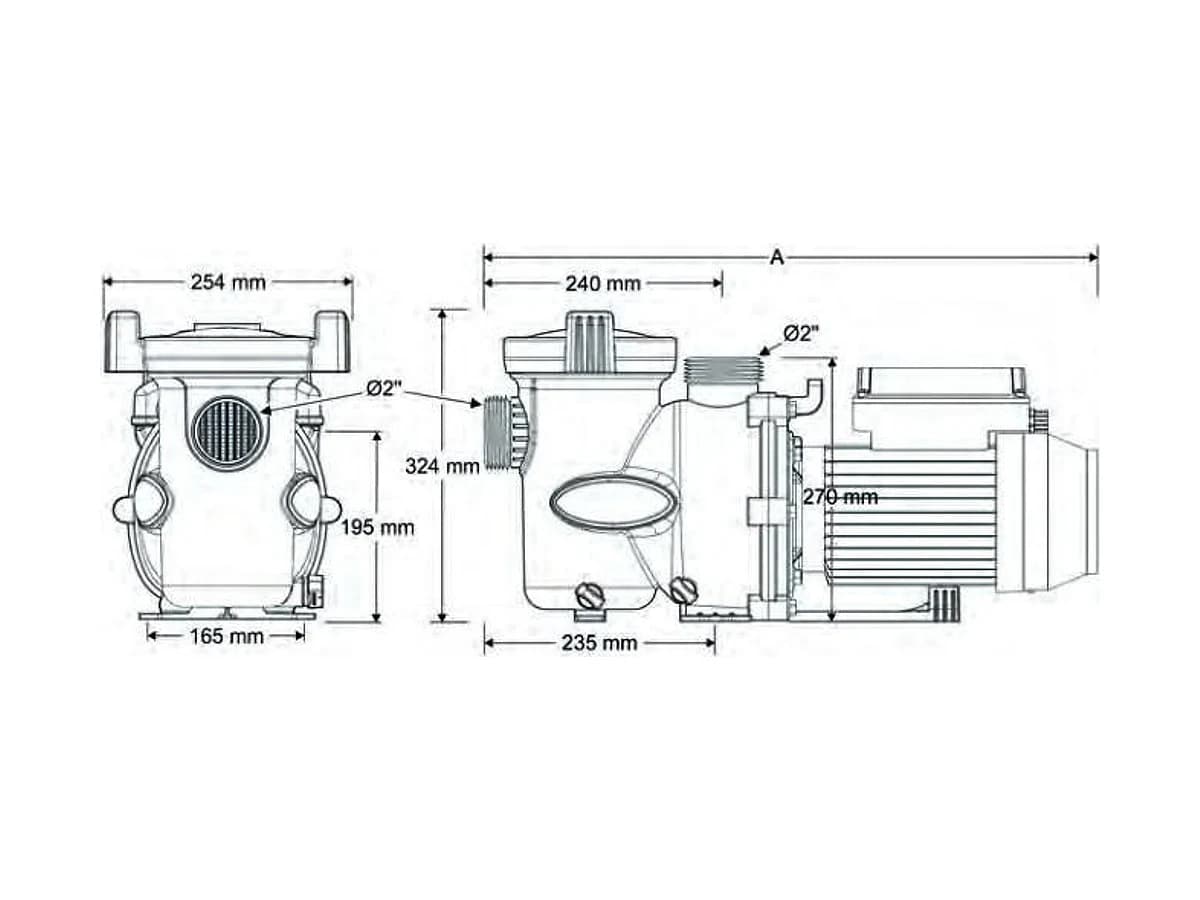

| Length A (cm) | 58.3 | 58.3 | 54.3 | 58.3 | 55.3 | 58.3 | 56.8 | 58.3 | 58.3 |
| Weight (kg) | 16 | 17 | 17 | 17 | 18 | 19 | 20 | 21 | 21 |
| Order code | Variant description | Certifications |
|---|---|---|
| WP000147 | FloPro 50M · 0.5 HP (0.37 kW) · single-phase · 10.3 m³/h (10 m) | IE3 |
| WP000148 | FloPro 75M · 0.75 HP (0.55 kW) · single-phase · 13.2 m³/h (10 m) | IE3 |
| WP000149 | FloPro 75T · 0.75 HP (0.55 kW) · three-phase · 13.2 m³/h (10 m) | IE3 |
| WP000150 | FloPro 100M · 1 HP (0.75 kW) · single-phase · 15.8 m³/h (10 m) | IE3 |
| WP000151 | FloPro 100T · 1 HP (0.75 kW) · three-phase · 15.8 m³/h (10 m) | IE3 |
| WP000152 | FloPro 150M · 1.5 HP (1 kW) · single-phase · 20.8 m³/h (10 m) | IE3 |
| WP000153 | FloPro 150T · 1.5 HP (1 kW) · three-phase · 20.8 m³/h (10 m) | IE3 |
| WP000154 | FloPro 200M · 2 HP (1.5 kW) · single-phase · 27 m³/h (10 m) | IE3 |
| WP000155 | FloPro 200T · 2 HP (1.5 kW) · three-phase · 27 m³/h (10 m) | IE3 |
Zodiac FloPro is a self-priming single-speed pool pump with a corrosion-resistant polypropylene body, running at 2850 rpm. Its 9 single-phase and three-phase models from 0.5 to 2 HP deliver 10.3–27 m³/h at 10 m, with a large 2.6 L pre-filter, IPX5 protection, Easy Retrofit compatibility and a 3-year warranty.
FloPro pumps are made from corrosion-resistant materials. The pump body is manufactured from a special polypropylene that makes it long-lasting and quiet. To meet the needs of most pools there are 9 models in the 0.5–2.0 HP range, in single-phase and three-phase versions.
The pump is controlled by the filtration panel and runs at a nominal 2850 rpm. Its asynchronous TEFC motor has Class F insulation and operates at over 80 % efficiency (IE3 standard); it shuts down automatically at high current and temperature. The large 2.6 L pre-filter basket extends the time between cleanings.
Thanks to the "Easy Retrofit" system, the FloPro platform fits most equivalent pumps on the market without restriction and without changing the pipework: DN50 and DN63 connections (2" female threaded inlet/outlet, 63/50 mm unions included) and an optional thin (R0486701) or thick (R0546401) pump base are used.
