Pool Pumps
Zodiac E30iQ is a self-priming variable-speed pool pump with an ECM synchronous motor (IE3, over 80 % efficiency) that can be controlled remotely via the iAquaLink+ app. Its 1 HP and 2 HP models deliver 15.5 and 25.1 m³/h at 10 m over a 40–100 % speed range, with ECO, CLEAN and BOOST preset speeds.
E30iQ 100 · 1 HP (0.75 kW) · 15.5 m³/h (10 m) · IE3
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Pump type | Self-priming pool pump, variable speed |
|---|---|
| Motor type | Permanent-magnet synchronous motor (ECM), TEFC, Class F insulation |
| Efficiency | > 80 % (IE3 standard) |
| Output power (P2) | 1 HP (0.75 kW) / 2 HP (1.5 kW) |
| Flow (at 10 m, 100 %) | 15.5 / 25.1 m³/h |
| Max. flow | 21 / 31.5 m³/h |
| Max. head | 18 / 20.5 m |
| Speed range | 40 – 100 % (1 % steps) |
| Filter basket volume | 2.6 L |
| Connection | DN50 & DN63 (2" threaded, 63/50 mm unions included) |
| Water type | Fresh and salt water, max. 6 g/L (6000 ppm) |
| Max. water temperature | 35 °C |
| Protection / supply | IPX5 / 230 VAC, 50/60 Hz |
| App control | iAquaLink+ |
| Warranty | 3 years |
Values by order code
| Order code | ||
|---|---|---|
| Output power P2 (HP / kW) | 1 / 0.75 | 2 / 1.5 |
| Flow at 10 m, 100 % (m³/h) | 15.5 | 25.1 |
| Max. flow (m³/h) | 21 | 31.5 |
| Max. head (m) | 18 | 20.5 |

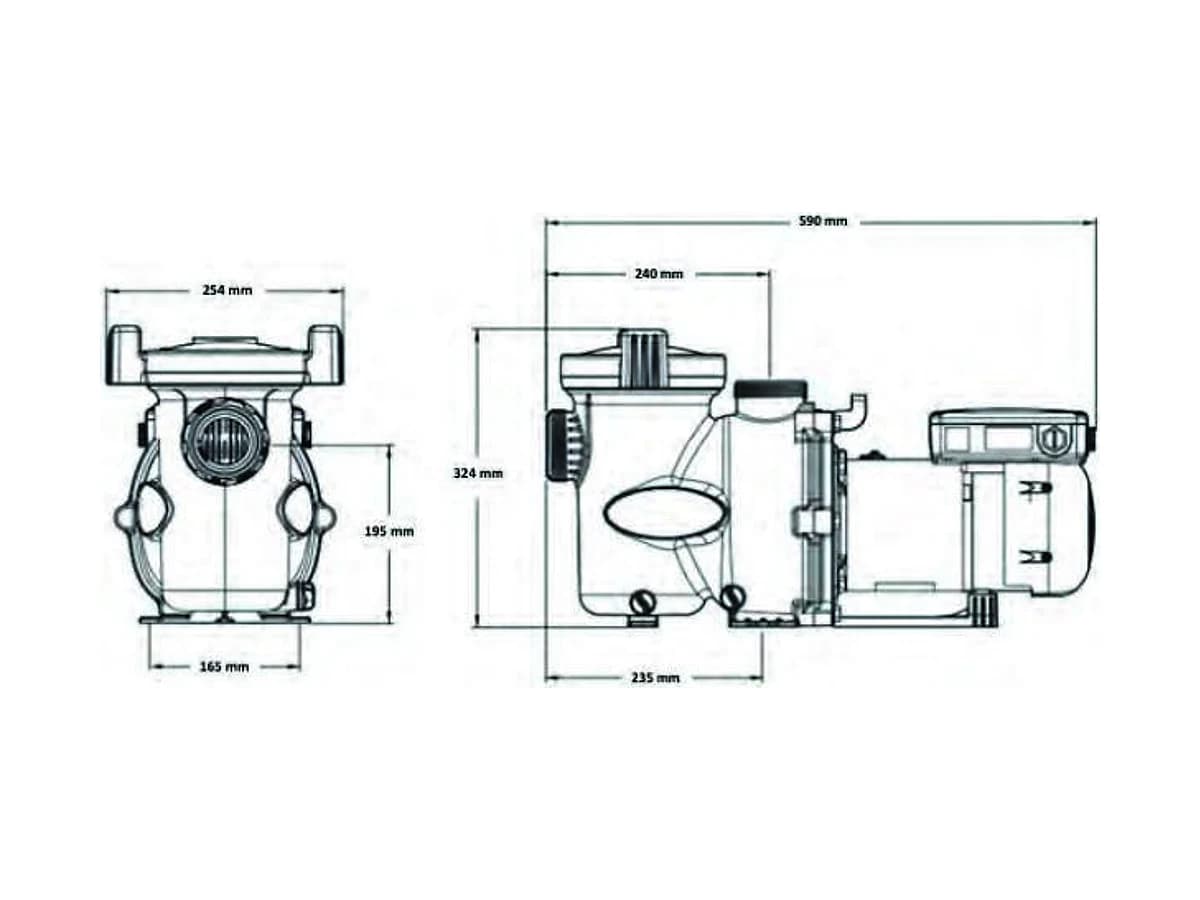

| Length (cm) | 59 | 59 |
| Height, without base (cm) | 32.4 | 32.4 |
| Width (cm) | 25.4 | 25.4 |
| Weight (kg) | 15 | 18 |
| Order code | Variant description | Certifications |
|---|---|---|
| WP000221 | E30iQ 100 · 1 HP (0.75 kW) · 15.5 m³/h (10 m) | IE3 |
| WP000222 | E30iQ 200 · 2 HP (1.5 kW) · 25.1 m³/h (10 m) | IE3 |
Zodiac E30iQ is a self-priming variable-speed pool pump with an ECM synchronous motor (IE3, over 80 % efficiency) that can be controlled remotely via the iAquaLink+ app. Its 1 HP and 2 HP models deliver 15.5 and 25.1 m³/h at 10 m over a 40–100 % speed range, with ECO, CLEAN and BOOST preset speeds.
E30iQ is a simple, energy-efficient variable-speed pump. Its TEFC permanent-magnet synchronous motor (ECM) meets the IE3 standard with over 80 % efficiency, providing significant energy savings and quieter operation than single-speed pumps.
It works stand-alone with a 1-line white LCD screen, can connect to Zodiac automation and can be controlled by an external dry contact. It offers 2 time slots over 24 hours and 3 programmable speeds factory-set to ECO (50 %), CLEAN (75 %) and BOOST (100 %); speed can be changed in 1 % steps across 40–100 %. It is controlled remotely from anywhere with the iAquaLink+ app.
It primes automatically at start-up with adjustable speed and duration, and shuts down automatically at high voltage or overheating. With a 2.6 L pre-filter basket, DN50 and DN63 connections (2" female threaded inlet/outlet, 63/50 mm unions included) and an optional thin (R0486701) or thick (R0546401) pump base, it adapts easily to existing installations.
Get a quote for Zodiac E30iQ Variable-Speed Pump
We select equipment together based on pool volume, turnover time and plant-room conditions.
We bring filters, pumps, chemicals and accessories together in a single quote.
Our engineering team answers your questions on model selection, capacity and compatibility.
We support you through installation, commissioning and periodic maintenance.
