Salt Chlorinators
Zodiac eXO® iQ is a smart salt chlorinator that brings all water quality management into a single interface. With 10–35 g/h chlorine output it serves pools up to 160 m³; it is monitored from the iAquaLink™ app via built-in Wi-Fi, upgraded to automatic pH and ORP regulation with plug-and-play pH Link and Dual Link modules, and controls the filter pump, heater and lighting.
eXO® iQ 10 · 10 g/h · 40 m³
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Chlorine production | 10 / 18 / 22 / 35 g/h |
|---|---|
| Pool volume | 40 / 70 / 100 / 160 m³ |
| Salinity | Recommended 4 g/L (min. 3.3 g/L) |
| Cell life | 10,000 h |
| Cell type | SC6 ruthenium-coated titanium electrodes |
| Cell position | Horizontal |
| Polarity reversal | Adjustable 2–8 h (factory 5 h) |
| Operating modes | Normal, Boost (100%, 24 h), Low (cover, 0–30%) |
| User interface | TFT colour screen, 11 languages |
| Connectivity / app | Built-in Wi-Fi, iAquaLink™ app |
| Pipe connection | DN50, DN63, 1½" (48 mm) |
| Power | Max. 200 W |
| Water temperature | 5–40 °C |
| Power supply | 220–240 V / 50–60 Hz |
| Cell dimensions | 32 × 13.5 × 11 cm |
| Control unit dimensions | 32 × 37 × 12 cm |
| Protection class | IP43 |
| Warranty | Unit 3 years · pH sensor 2 years · ORP sensor 1 year |
Values by model
| Model | ||||
|---|---|---|---|---|
| Chlorine output (g/h) | 10 | 18 | 22 | 35 |
| Recommended pool volume (m³) | 40 | 70 | 100 | 160 |
| Code | WW000162 | WW000163 | WW000164 | WW000165 |
| New product code | WW000326 | WW000327 | WW000328 | WW000329 |
| Order code | Variant description | Certifications |
|---|---|---|
| WW000162 | eXO® iQ 10 · 10 g/h · 40 m³ | — |
| WW000163 | eXO® iQ 18 · 18 g/h · 70 m³ | — |
| WW000164 | eXO® iQ 22 · 22 g/h · 100 m³ | — |
| WW000165 | eXO® iQ 35 · 35 g/h · 160 m³ | — |
| WW000326 | eXO® iQ 10 · 10 g/h · 40 m³ · new code | — |
| WW000327 | eXO® iQ 18 · 18 g/h · 70 m³ · new code | — |
| WW000328 | eXO® iQ 22 · 22 g/h · 100 m³ · new code | — |
| WW000329 | eXO® iQ 35 · 35 g/h · 160 m³ · new code | — |
| WW000176 | pH Link · pH control module | — |
| WW000177 | Dual Link · pH + ORP control module | — |
Zodiac eXO® iQ is a smart salt chlorinator that brings all water quality management into a single interface. With 10–35 g/h chlorine output it serves pools up to 160 m³; it is monitored from the iAquaLink™ app via built-in Wi-Fi, upgraded to automatic pH and ORP regulation with plug-and-play pH Link and Dual Link modules, and controls the filter pump, heater and lighting.

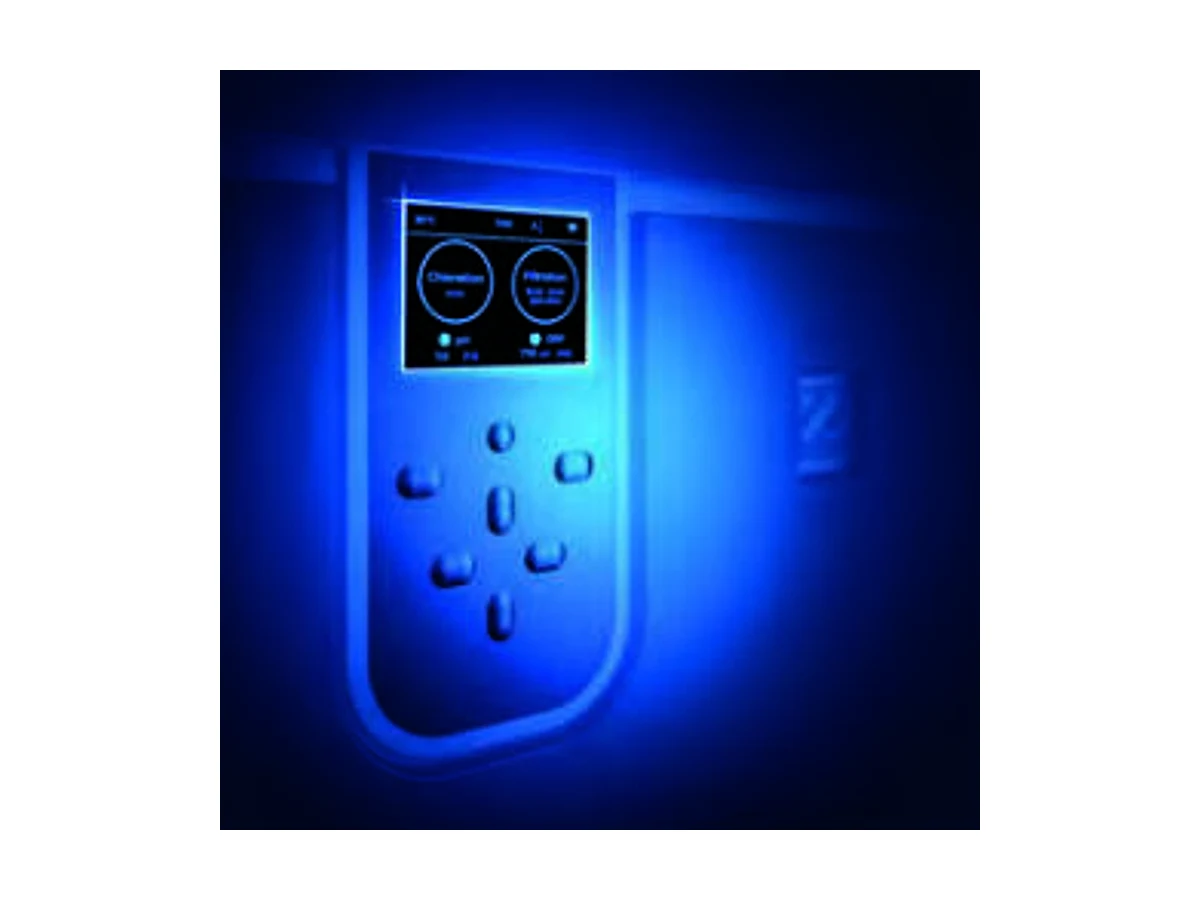

The eXO® platform is an efficient, automatic disinfection solution that, thanks to its ease of use, provides complete water disinfection and pool equipment control. The new TFT colour screen is available in 11 languages; Normal, Boost (100%) and Low (cover) modes adjustable between 0–30% are offered.
A single unit controls the filtration pump (single-speed or Zodiac® variable-speed) and, through 2 auxiliary outputs, the heater (temperature set point and heating priority) and lighting (Zodiac® NL LED colour selection) or any other device. It has 2 chlorination timers over 24 hours, 2 single-speed or 4 Zodiac variable-speed pump timers and 1 timer per additional item of equipment.
The temperature sensor protects the electrode by reducing output in cold water; a low-salt warning, a 'No flow' message and a mechanical flow switch ensure safe operation. The cell cleans itself through polarity reversal adjustable between 2 and 8 hours according to water hardness (factory setting 5 hours).
