Skimmers & Level Regulators
AstralPool SLIM is an AISI-316L stainless steel high-water-level skimmer that brings the water level to within ±4 cm of the pool edge for an infinity-pool effect. With a 500 or 650 mm mouth width, 7.5 m³/h recommended flow, 1.2 L basket and Ø 50 mm overflow it complies with EN 13451-1-3, EN 16582-1 and EN 16713-2.
Mouth width 500 mm
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Product type | High-water-level skimmer |
|---|---|
| Material | AISI-316L stainless steel |
| Mouth width | 500 mm / 650 mm |
| Water level | ±4 cm from the edge |
| Flow rate | 7.5 m³/h (recommended) |
| Capacity | Basket 1.2 L |
| Connection | R 2" female BSP · Ø 50 mm overflow |

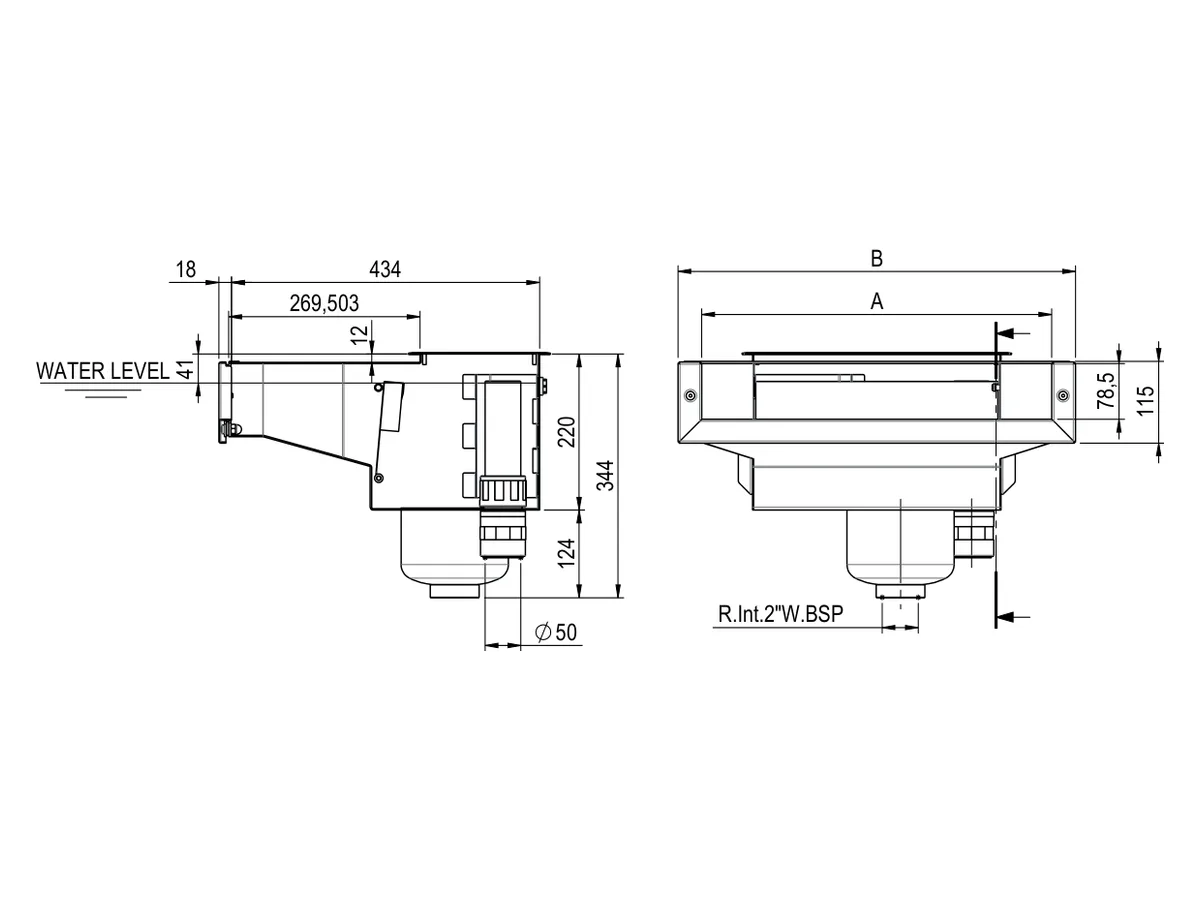

| Dimensions | Depth 434 mm · body height 344 mm |
| Pool type | Concrete pools (flanges for prefab) |
| Weight | 14.80 kg (500) · 15.20 kg (650) |
| Standard | EN 13451-1-3 · EN 16582-1 · EN 16713-2 |
| Order code | Variant description | Certifications |
|---|---|---|
| 73501 | Mouth width 500 mm | — |
| 73502 | Mouth width 650 mm | — |
AstralPool SLIM is an AISI-316L stainless steel high-water-level skimmer that brings the water level to within ±4 cm of the pool edge for an infinity-pool effect. With a 500 or 650 mm mouth width, 7.5 m³/h recommended flow, 1.2 L basket and Ø 50 mm overflow it complies with EN 13451-1-3, EN 16582-1 and EN 16713-2.
The high-water-level skimmer allows the water to be kept very close to the edge (±4 cm), approaching the look of an infinity pool without building an overflow pool. The entire body is made of AISI-316L stainless steel, and its slim profile takes up minimal space beneath the coping.
All models include a Ø 50 mm overflow and a separate compartment for fitting a level regulator (the 73453 level float is not included). It is also compatible with standard market water levels and includes flanges for prefabricated pools.
