Skimmers & Level Regulators

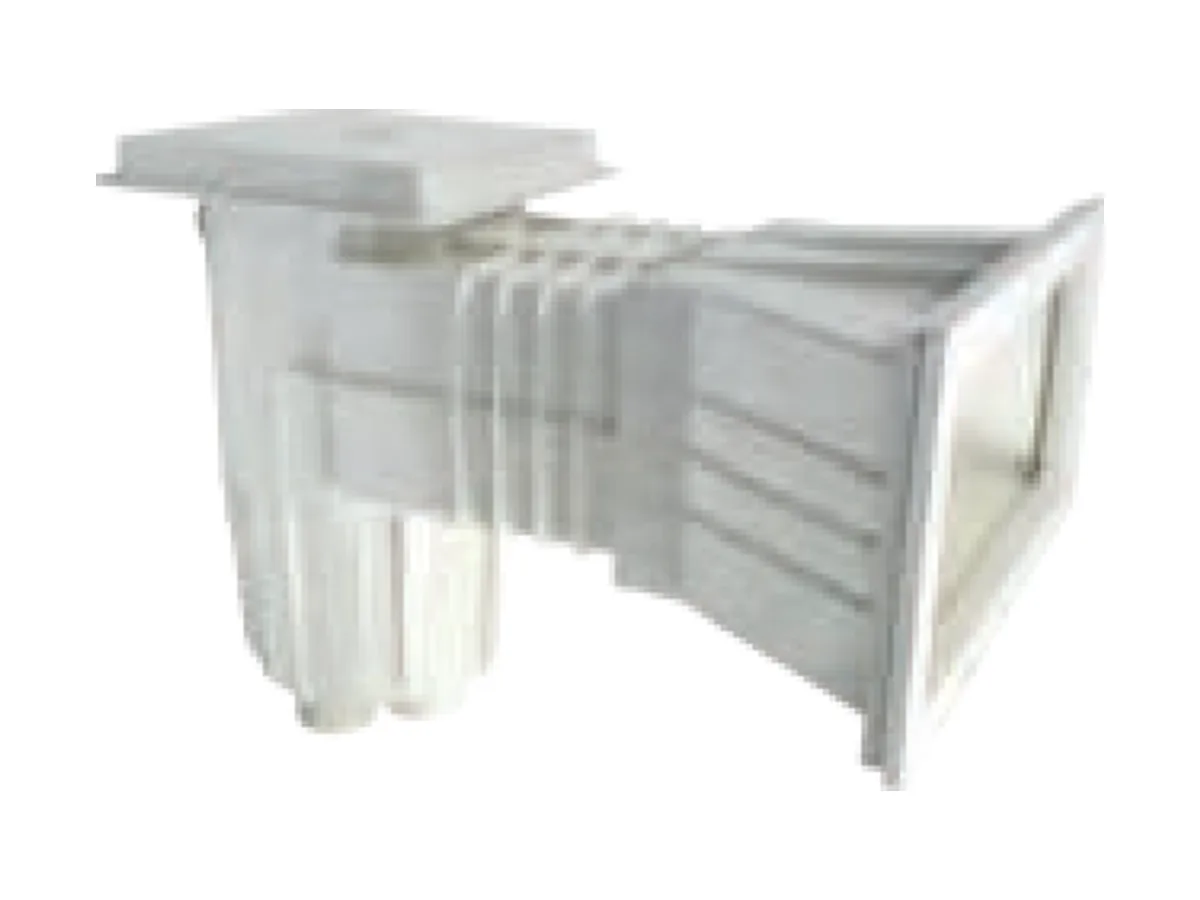

The AstralPool 15 L wide-mouth skimmer is a UV-resistant ABS skimmer whose 372 mm wide water inlet draws surface water across a broader front than the standard mouth. It has a recommended flow of 7.5 m³/h, a Ø 50 mm main drain and a Ø 40 mm overflow connection; concrete and liner pool models comply with EN 16582-1 / EN 16713-2.
Concrete, round lid · White
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Product type | Wide-mouth skimmer, 15 L |
|---|---|
| Material | UV-resistant ABS |
| Flow rate | 7.5 m³/h (recommended) |
| Sizing rule | 1 unit per 25 m² of water surface |
| Connection | Suction 1½" female / 2" male · main drain Ø 50 mm · overflow Ø 40 mm |

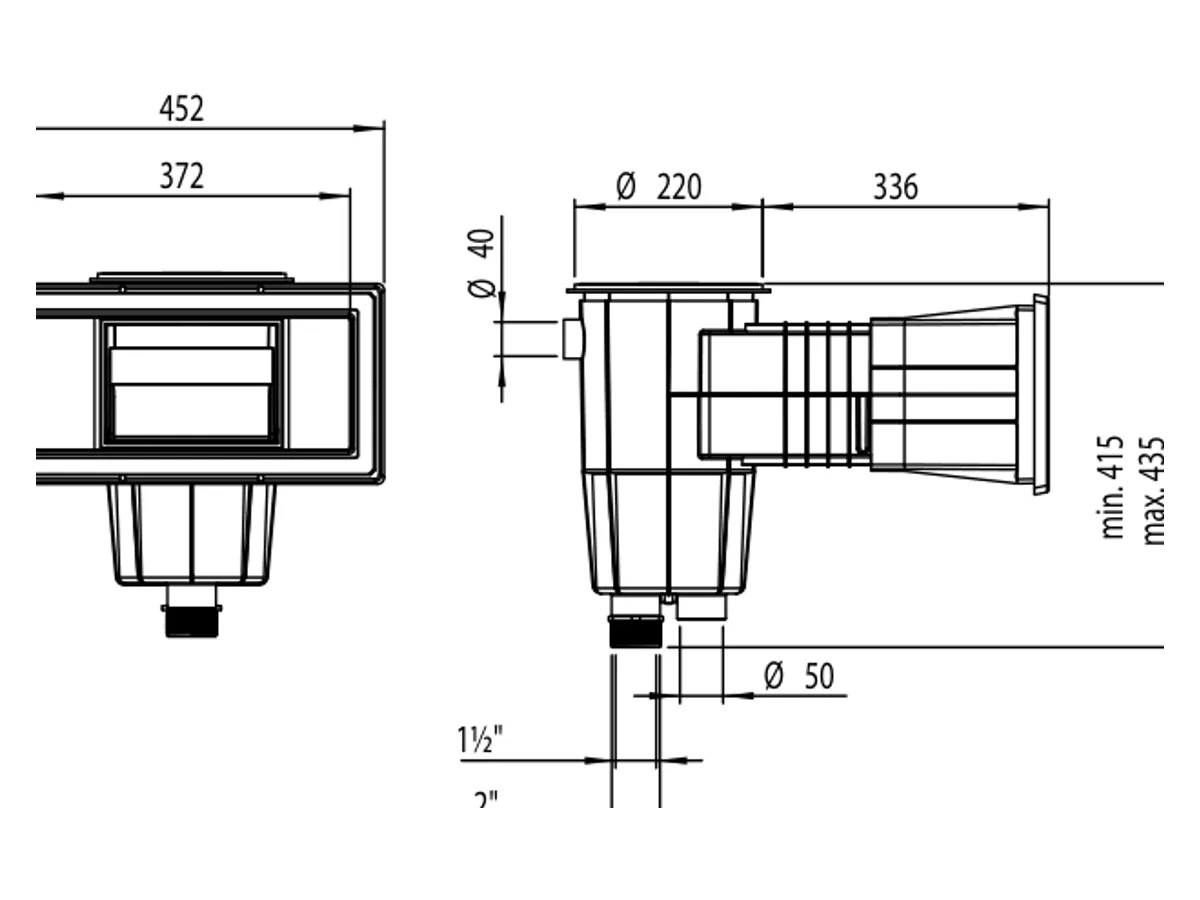

| Dimensions | Mouth width 372 mm · front panel 452 mm · height min. 415 – max. 435 mm |
| Colour | White, beige, grey, anthracite (concrete, round lid) |
| Pool type | Concrete, liner and prefabricated pools |
| Weight | 3.0–4.47 kg (concrete) · 5.28 kg (liner) |
| Standard | EN 16582-1 · EN 16713-2 |
| Order code | Variant description | Certifications |
|---|---|---|
| 00251 | Concrete, round lid · White | — |
| 00251CL090 | Concrete, round lid · Beige | — |
| 00251CL129 | Concrete, round lid · Grey | — |
| 00251CL144 | Concrete, round lid · Anthracite | — |
| 00252 | Concrete, square lid · White | — |
| 01463 | Liner, round lid · White | — |
| 01464 | Liner, square lid · White | — |
The AstralPool 15 L wide-mouth skimmer is a UV-resistant ABS skimmer whose 372 mm wide water inlet draws surface water across a broader front than the standard mouth. It has a recommended flow of 7.5 m³/h, a Ø 50 mm main drain and a Ø 40 mm overflow connection; concrete and liner pool models comply with EN 16582-1 / EN 16713-2.
All skimmers in the 15 L series are made of UV-resistant ABS, with a weir flap (damper) and flow regulator as standard. The suction connection underneath is 1½" female and 2" male threaded; the main drain connection is Ø 50 mm solvent-weld, the overflow connection Ø 40 mm, and a leaf-catcher basket is included.
The concrete pool model is made with a round lid in white, beige, grey and anthracite (00251) or with a white square lid (00252). The liner pool model (01463 round, 01464 square lid) is supplied with adhesive gaskets, flange and screws.
