Skimmers & Level Regulators
AstralPool NORM 17.5 L is a skimmer with a wide 495 × 80 mm water inlet and a UV-protected ABS body. Its recommended flow rate is 7.5 m³/h and one unit is used per 25 m² of water surface; with 1½" and 2" bottom connections, a Ø 32 mm overflow outlet and EN 16582-1 / EN 16713-2 compliance it suits private and public pools.
Concrete · White
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Product type | Wide-mouth skimmer, 17.5 L |
|---|---|
| Material | UV-resistant ABS |
| Water inlet | 495 × 80 mm |
| Flow rate | 7.5 m³/h (recommended) |
| Sizing rule | 1 unit per 25 m² of water surface |
| Connection | 1½" and 2" bottom connection · Ø 32 mm overflow |

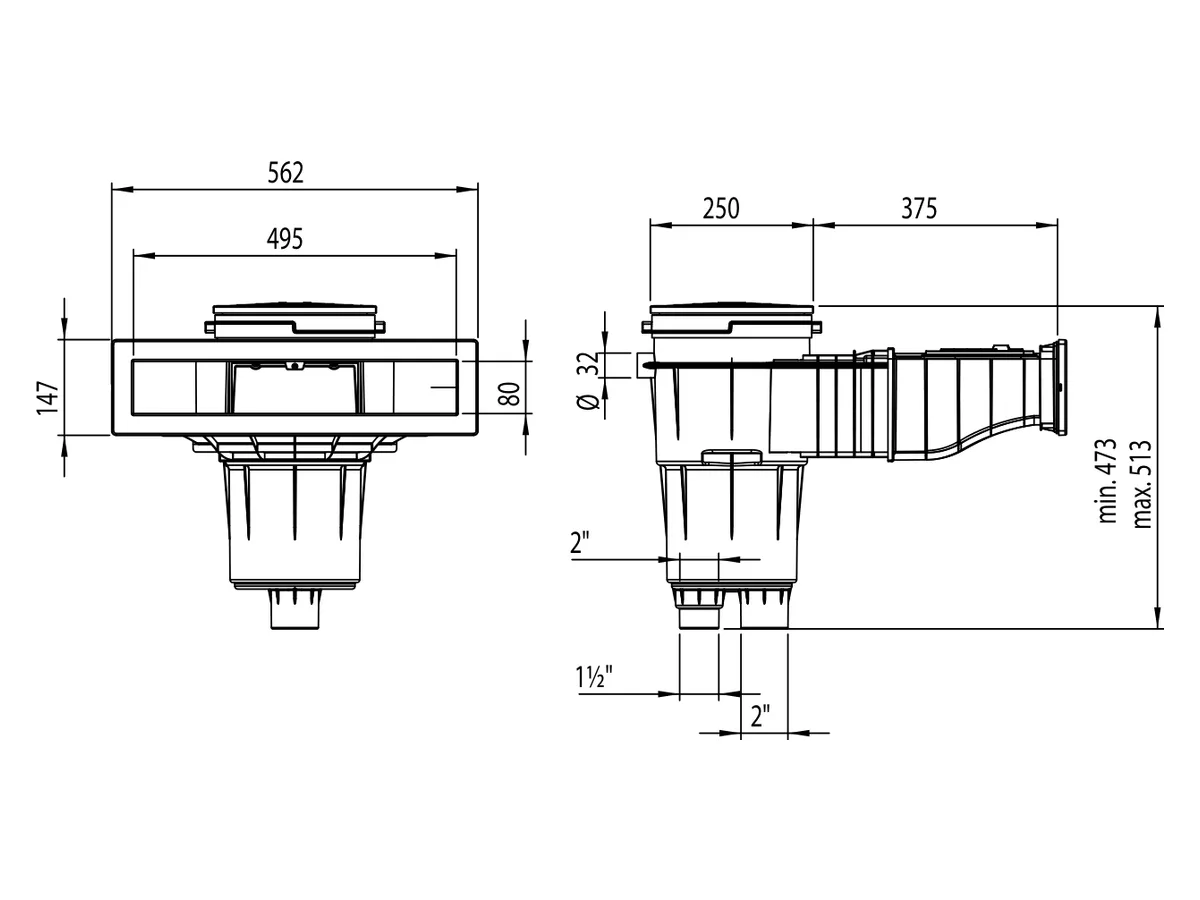

| Dimensions | 562 × 625 mm (mouth 495 mm) · height min. 473 – max. 513 mm |
| Colour | White, beige, grey, anthracite |
| Pool type | Concrete, liner and prefabricated pools |
| Included | Weir flap, flow-regulating plug, basket, adjustable lid |
| Weight | 5.61 kg |
| Standard | EN 16582-1 · EN 16713-2 |
| Order code | Variant description | Certifications |
|---|---|---|
| 58707 | Concrete · White | — |
| 58707CL090 | Concrete · Beige | — |
| 58707CL129 | Concrete · Grey | — |
| 58707CL144 | Concrete · Anthracite | — |
| 56176 | Liner / prefab, with flange · White | — |
| 56176CL090 | Liner / prefab, with flange · Beige | — |
| 56176CL129 | Liner / prefab, with flange · Grey | — |
| 56176CL144 | Liner / prefab, with flange · Anthracite | — |
AstralPool NORM 17.5 L is a skimmer with a wide 495 × 80 mm water inlet and a UV-protected ABS body. Its recommended flow rate is 7.5 m³/h and one unit is used per 25 m² of water surface; with 1½" and 2" bottom connections, a Ø 32 mm overflow outlet and EN 16582-1 / EN 16713-2 compliance it suits private and public pools.
The NORM series with a 17.5-litre chamber is supplied with a weir flap, flow-regulating plug, lid height adjustment and basket. The wide mouth collects leaves, pollen and surface oil film across a broader front, improving circulation efficiency.

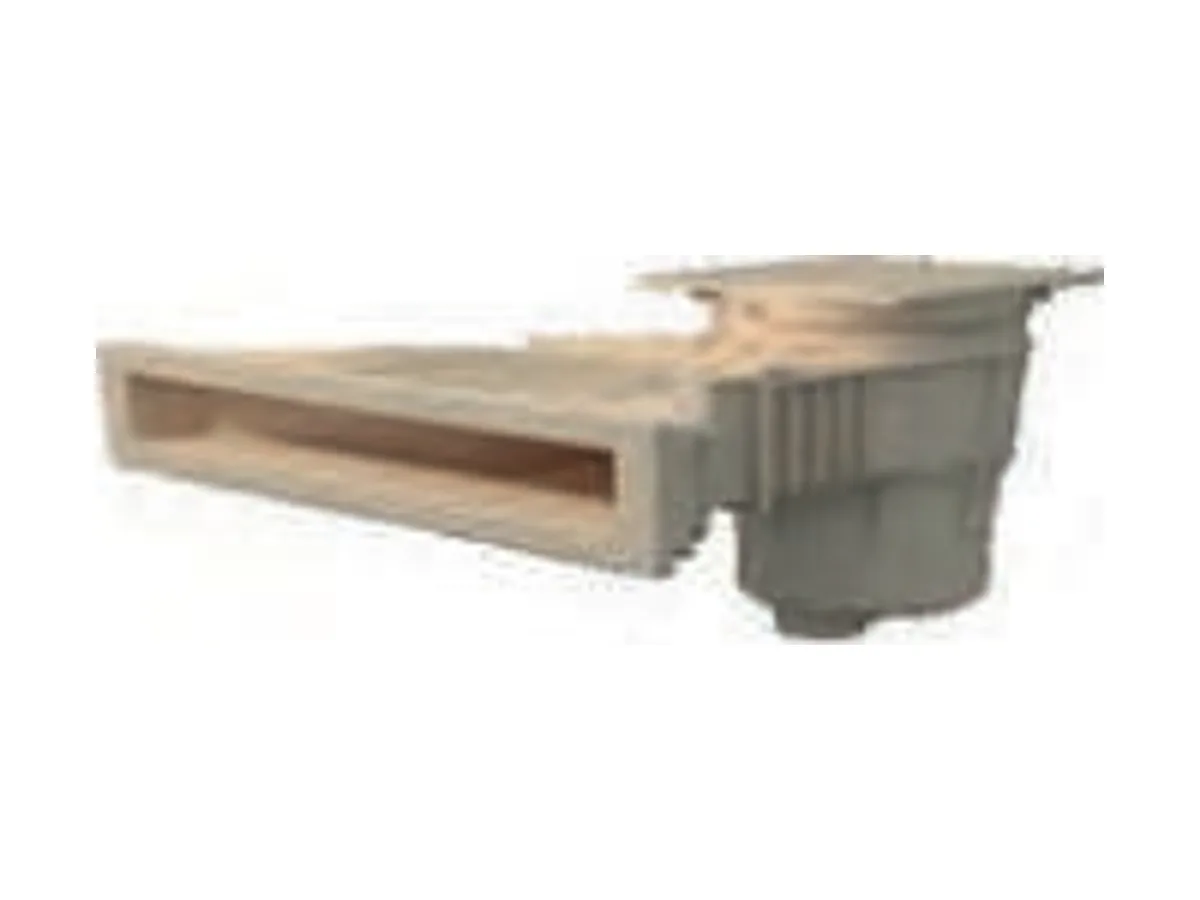

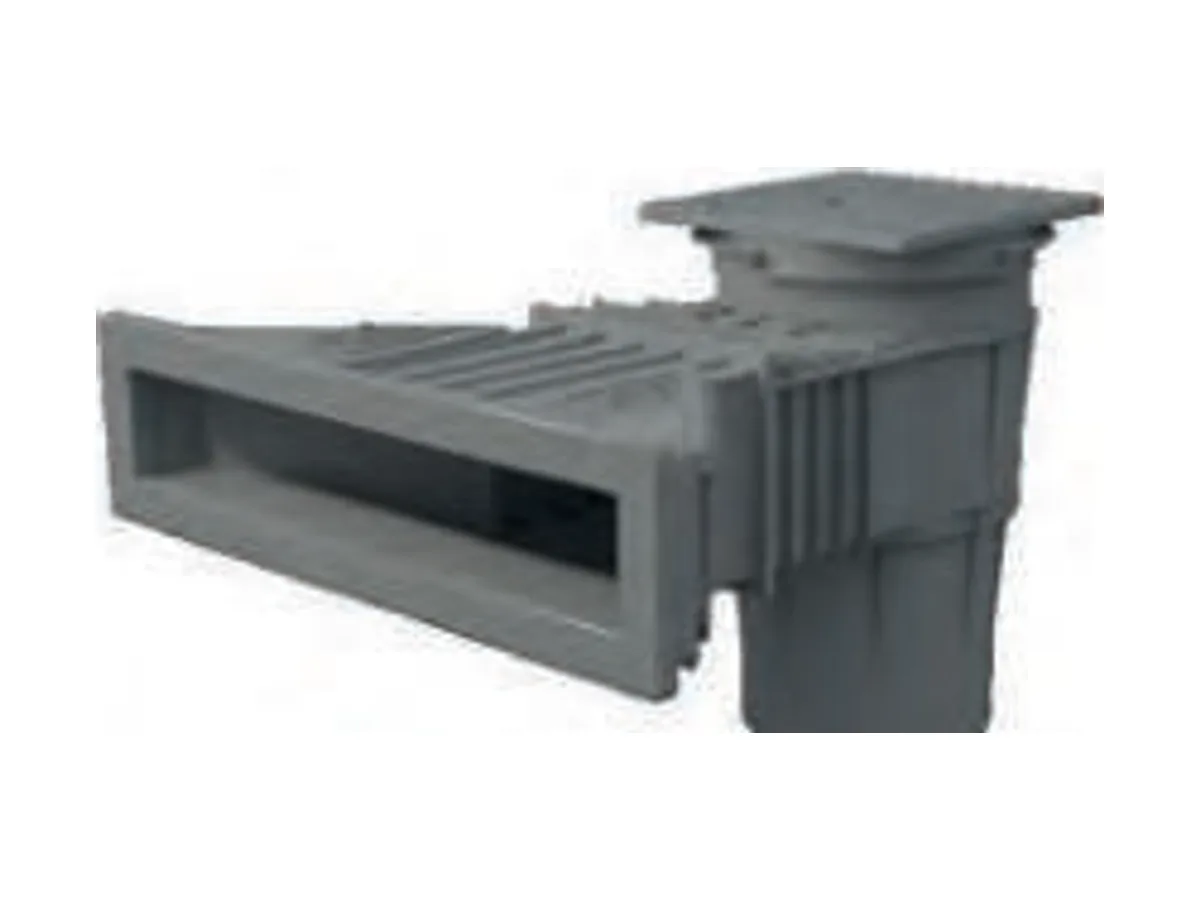

The concrete pool model (58707) is embedded directly in the concrete pour, while the liner and prefabricated pool model (56176) comes with a liner clamping flange. Both models are made in white, beige, grey and anthracite so the skimmer mouth can be matched to the finish colour.
