Vacuum Nozzles
AstralPool vacuum nozzles are white or coloured ABS wall inlets to which the manual pool vacuum hose is connected and which are closed with a 1½" threaded plug when not in use. They withstand a maximum pressure of 6 bar; glued, threaded, liner and high-flow models are available, compliant with UNE-EN 16582-1 / 16713-2.
High-flow return (vacuum) nozzle · Ø 75 / 90 mm · White
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Product type | Wall vacuum (cleaner) nozzle |
|---|---|
| Material | ABS · PVC body (41520) |
| Connection | Ø 63 / Ø 50 mm solvent weld · 2" male / Ø 50 mm female · Ø 75 / Ø 90 mm |
| Max. working pressure | 6 bar |
| Plug | 1½" threaded plug |
| Flow rate | 41520: 30 m³/h return (4 m/s) · 5 m³/h suction (0.5 m/s) |
| Colour | White, beige, grey, anthracite |
| Pool type | Concrete, liner and prefabricated pools |
| Standard | UNE-EN 16582-1 · UNE-EN 16713-2 |
| Order code | Variant description | Certifications |
|---|---|---|
| 41520 | High-flow return (vacuum) nozzle · Ø 75 / 90 mm · White | — |
| 00300 | Concrete · Ø 63 / Ø 50 mm solvent weld · White | — |
| 00300CL090 | Concrete · Ø 63 / Ø 50 mm solvent weld · Beige | — |
| 00300CL129 | Concrete · Ø 63 / Ø 50 mm solvent weld · Grey | — |
| 00300CL144 | Concrete · Ø 63 / Ø 50 mm solvent weld · Anthracite | — |
| 00301 | Concrete · 2" male thread, Ø 50 mm female · White | — |
| 00332 | Liner · 2" male thread, Ø 50 mm female · White | — |
| 00332CL090 | Liner · 2" male thread, Ø 50 mm female · Beige | — |
| 00332CL129 | Liner · 2" male thread, Ø 50 mm female · Grey | — |
| 00332CL144 | Liner · 2" male thread, Ø 50 mm female · Anthracite | — |
| 24415 | Concrete · Ø 50 mm PN10 solvent weld · White | — |
AstralPool vacuum nozzles are white or coloured ABS wall inlets to which the manual pool vacuum hose is connected and which are closed with a 1½" threaded plug when not in use. They withstand a maximum pressure of 6 bar; glued, threaded, liner and high-flow models are available, compliant with UNE-EN 16582-1 / 16713-2.

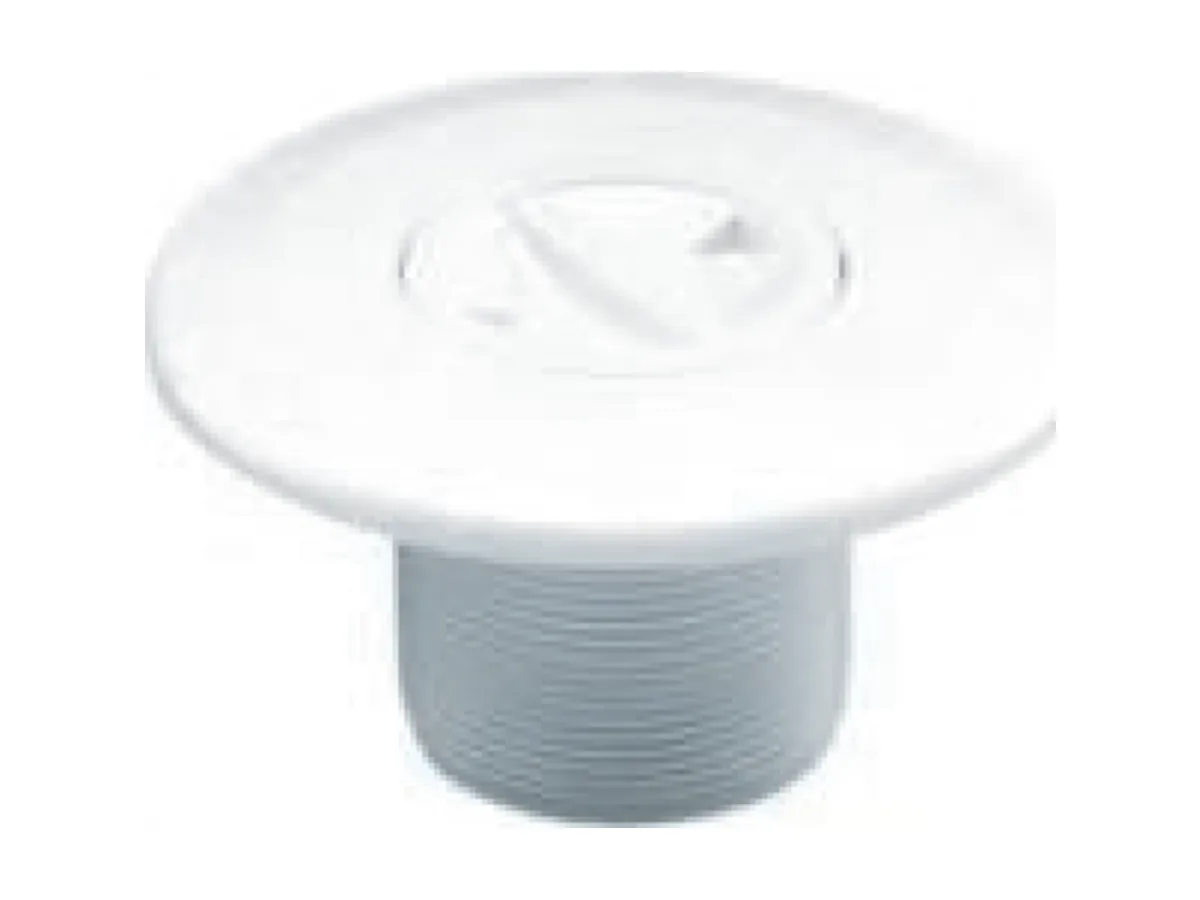

The glued model (00300) is glued onto Ø 63 mm or Ø 50 mm pipes; the threaded model (00301) has a 2" male thread and Ø 50 mm female connection. Both withstand a maximum of 6 bar, have a 1½" threaded plug and are recommended for installation with wall channels (15660/15661 or 15658/15659). The PN10 glued model (24415) is used with the 07958 three-way connector or the 01393 push connector.

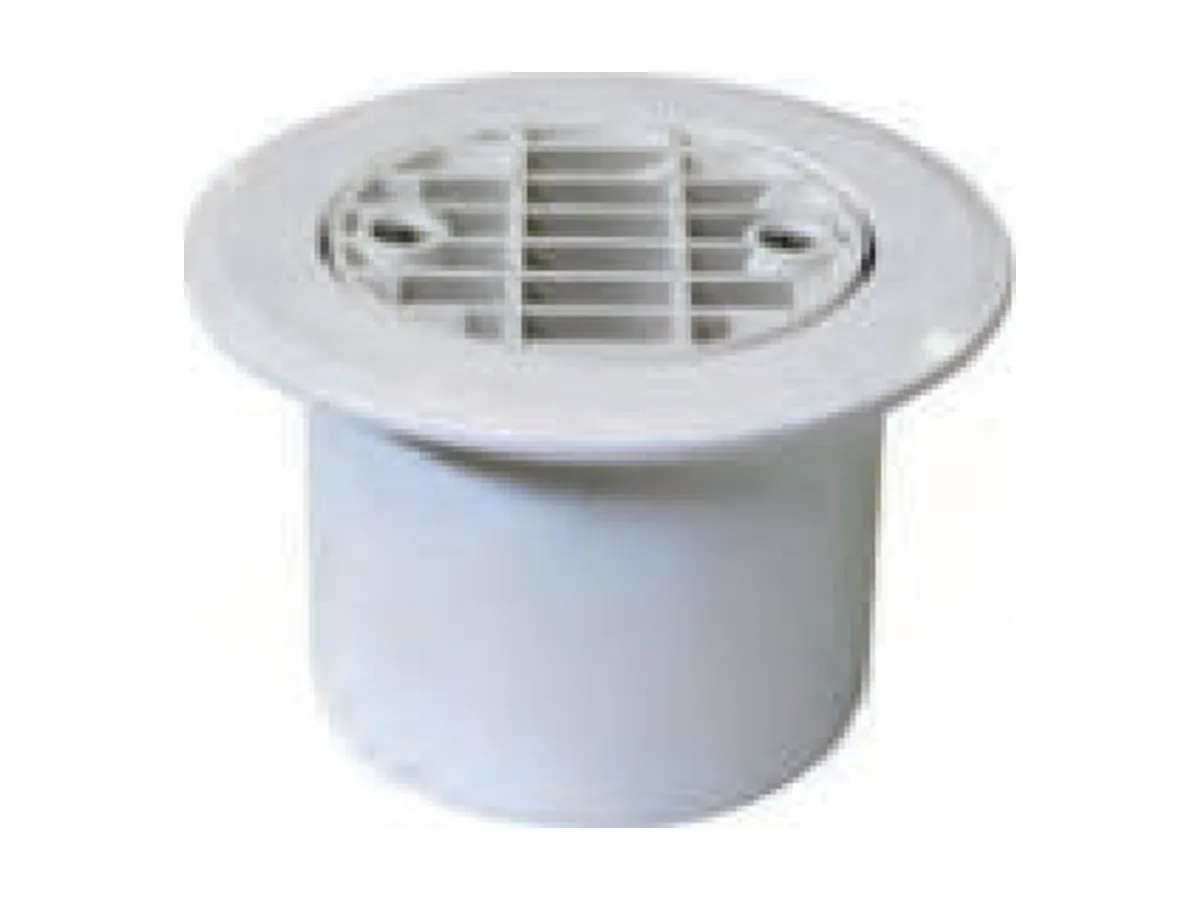

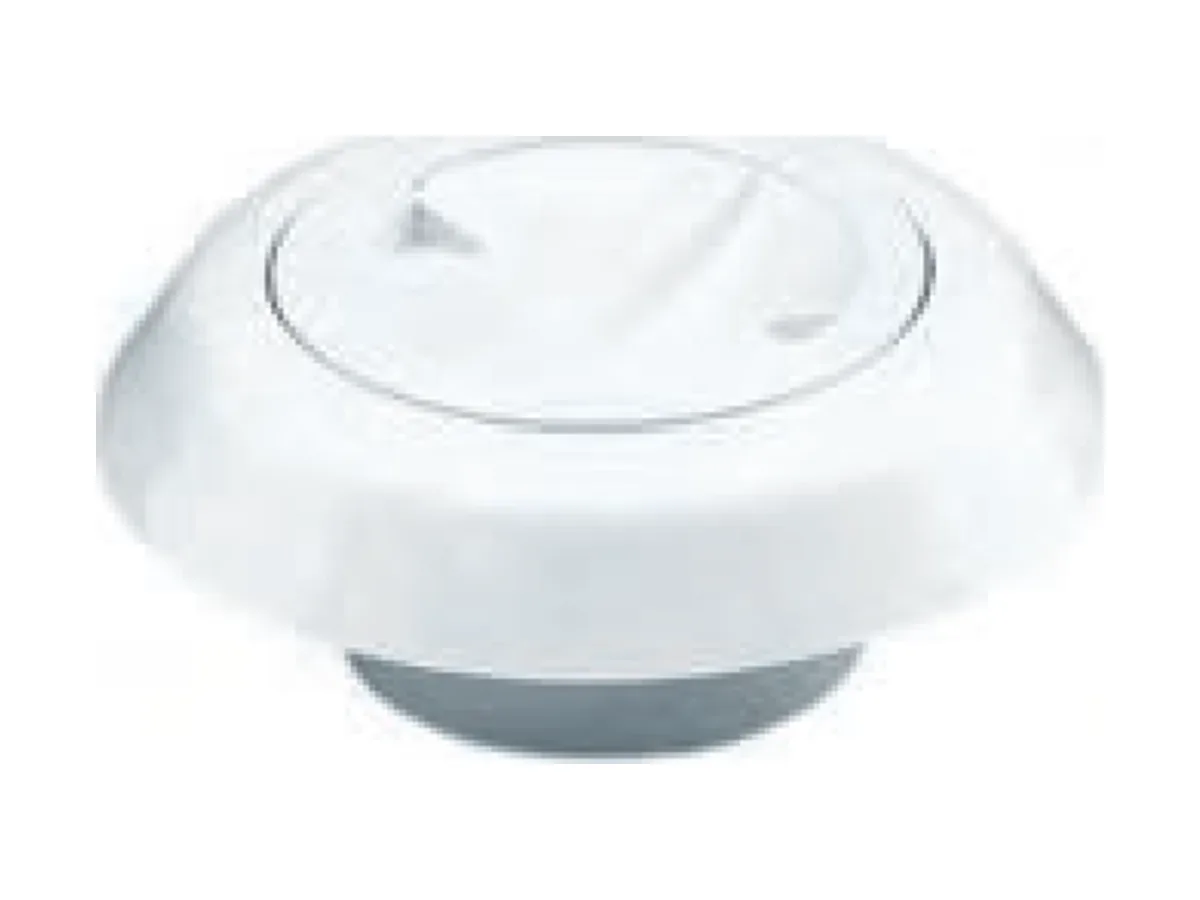

The liner model (00332) has a 2" male thread and Ø 50 mm female connection; it comes with plug, gasket and screws and is recommended for installation with the 15663 wall channel. The high-flow return (vacuum) nozzle (41520) can be used as a return inlet at 30 m³/h at 4 m/s or as a suction inlet at 5 m³/h at 0.5 m/s; it has a PVC body glued onto Ø 75 or Ø 90 mm pipe and a grate adjustable in any direction, and is used with the 43590 concrete wall passage.
