Vacuum Nozzles

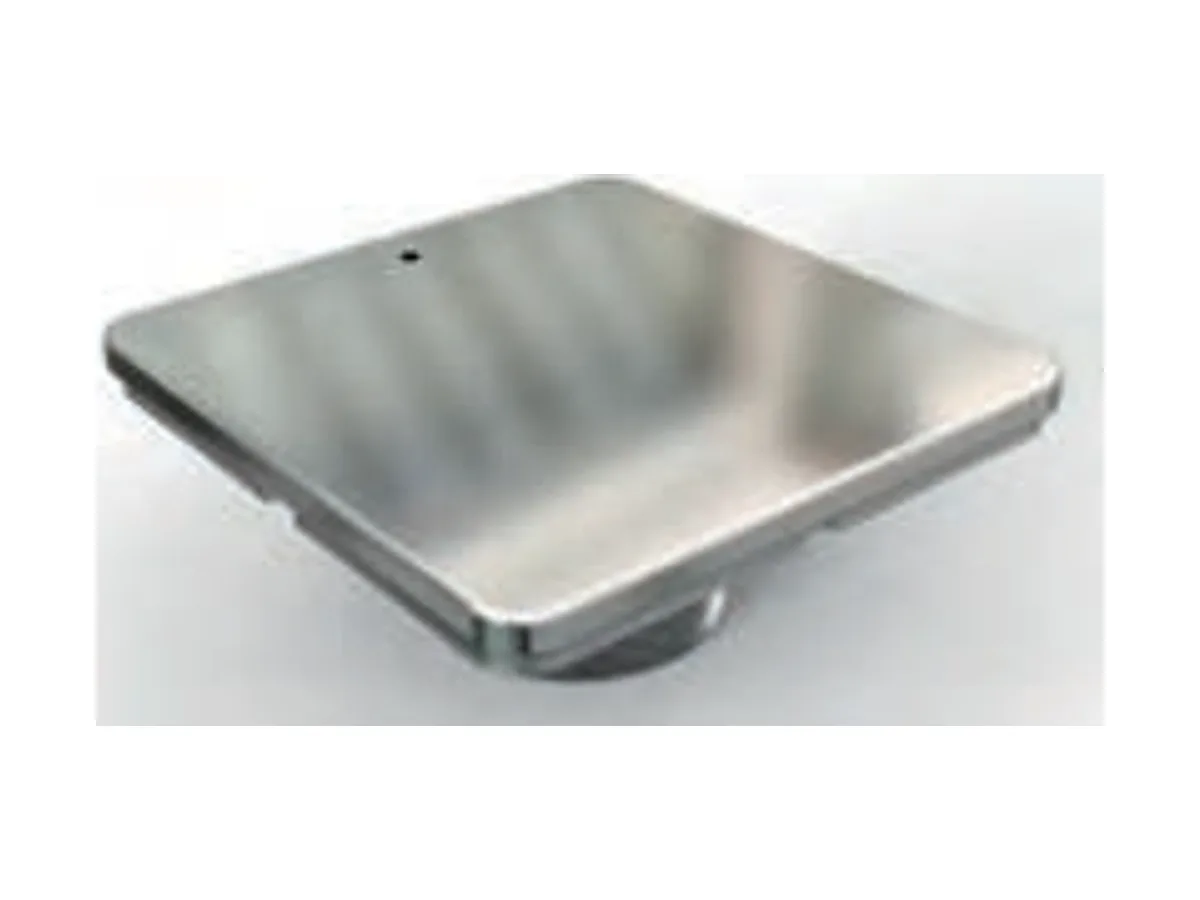

AstralPool STYLE vacuum inlets are cleaner connection inlets in AISI-316L stainless steel with round or square covers, suitable for concrete and prefab pools. They come with a liner kit and vacuum cover and fit 1½" BSP threaded concrete wall passages and existing vacuum inlets; they require the 05684 push-fit connection and comply with EN 16582-1 / EN 16713-2.
Round · L35 mm
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Product type | Stainless vacuum (cleaner) inlet |
|---|---|
| Material | AISI-316L stainless steel |
| Cover | Round or square |
| Connection | 1½" BSP threaded concrete wall passage · 05684 push-fit connection |
| Length | 35 mm |
| Included | Liner kit, vacuum cover |
| Pool type | Concrete, prefab and liner pools |
| Standard | EN 16582-1 · EN 16713-2 |
| Order code | Variant description | Certifications |
|---|---|---|
| 75176 | Round · L35 mm | — |
| 75177 | Square · L35 mm | — |
AstralPool STYLE vacuum inlets are cleaner connection inlets in AISI-316L stainless steel with round or square covers, suitable for concrete and prefab pools. They come with a liner kit and vacuum cover and fit 1½" BSP threaded concrete wall passages and existing vacuum inlets; they require the 05684 push-fit connection and comply with EN 16582-1 / EN 16713-2.
This vacuum inlet series is made of AISI-316L grade stainless steel and suits concrete and prefab pools; it comes with a liner kit and vacuum cover. STYLE vacuum inlets are compatible with 1½" BSP threaded concrete wall passages.
They are also compatible with existing replaceable vacuum inlets, so old ABS inlets can be renewed with stainless STYLE inlets without breaking concrete. The 05684 push-fit connection is required for installation.
