Return Inlets
AstralPool Multiflow is a series of UV-resistant ABS return inlets whose flow is set by punching out one of the pre-marked 14, 20 and 25 mm diameters in the eyeball during installation. At 4 m/s Ø 14 mm gives 2.2 m³/h, Ø 20 mm 4.5 m³/h and Ø 25 mm 7 m³/h; glued and threaded, concrete and liner models comply with UNE-EN 16582-1 / 16713-2.
Concrete · Ø 50 mm PN10 outer-wall solvent weld (renovation) · White
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Product type | Variable-flow return inlet (Multiflow) |
|---|---|
| Material | UV-resistant ABS |
| Eyeball diameters | 14 / 20 / 25 mm (punched out) |
| Flow rate | 2.2 / 4.5 / 7 m³/h at 4 m/s |
| Connection | Ø 50 mm PN10 solvent weld · 2" male / Ø 50 mm female · Ø 63 mm PN6 |
| Colour | White, beige, grey, anthracite |
| Options | Wall passages 15658/15659 and 15660/15661 |
| Pool type | Concrete, liner and prefabricated pools |
| Standard | UNE-EN 16582-1 · UNE-EN 16713-2 |
| Order code | Variant description | Certifications |
|---|---|---|
| 76493 | Concrete · Ø 50 mm PN10 outer-wall solvent weld (renovation) · White | — |
| 76493CL090 | Concrete · Ø 50 mm PN10 outer-wall solvent weld (renovation) · Beige | — |
| 76493CL129 | Concrete · Ø 50 mm PN10 outer-wall solvent weld (renovation) · Grey | — |
| 76493CL144 | Concrete · Ø 50 mm PN10 outer-wall solvent weld (renovation) · Anthracite | — |
| 00295 | Concrete · 2" male thread, Ø 50 mm female · White | — |
| 00295CL090 | Concrete · 2" male thread, Ø 50 mm female · Beige | — |
| 00295CL129 | Concrete · 2" male thread, Ø 50 mm female · Grey | — |
| 00295CL144 | Concrete · 2" male thread, Ø 50 mm female · Anthracite | — |
| 76494 | Liner · Ø 50 mm PN10 outer-wall solvent weld · White | — |
| 76494CL090 | Liner · Ø 50 mm PN10 outer-wall solvent weld · Beige | — |
| 76494CL129 | Liner · Ø 50 mm PN10 outer-wall solvent weld · Grey | — |
| 76494CL144 | Liner · Ø 50 mm PN10 outer-wall solvent weld · Anthracite | — |
| 00298 | Concrete · Ø 63 mm PN6 outer / Ø 50 mm inner solvent weld · White | — |
| 00298CL090 | Concrete · Ø 63 mm PN6 outer / Ø 50 mm inner solvent weld · Beige | — |
| 00298CL129 | Concrete · Ø 63 mm PN6 outer / Ø 50 mm inner solvent weld · Grey | — |
| 00298CL144 | Concrete · Ø 63 mm PN6 outer / Ø 50 mm inner solvent weld · Anthracite | — |
| 24413 | Concrete · glued onto Ø 50 mm PN10 pipe · White | — |
| 00330 | Liner / prefab · 2" male thread, Ø 50 mm female · White | — |
| 00330CL090 | Liner / prefab · 2" male thread, Ø 50 mm female · Beige | — |
| 00330CL129 | Liner / prefab · 2" male thread, Ø 50 mm female · Grey | — |
| 00330CL144 | Liner / prefab · 2" male thread, Ø 50 mm female · Anthracite | — |
AstralPool Multiflow is a series of UV-resistant ABS return inlets whose flow is set by punching out one of the pre-marked 14, 20 and 25 mm diameters in the eyeball during installation. At 4 m/s Ø 14 mm gives 2.2 m³/h, Ø 20 mm 4.5 m³/h and Ø 25 mm 7 m³/h; glued and threaded, concrete and liner models comply with UNE-EN 16582-1 / 16713-2.

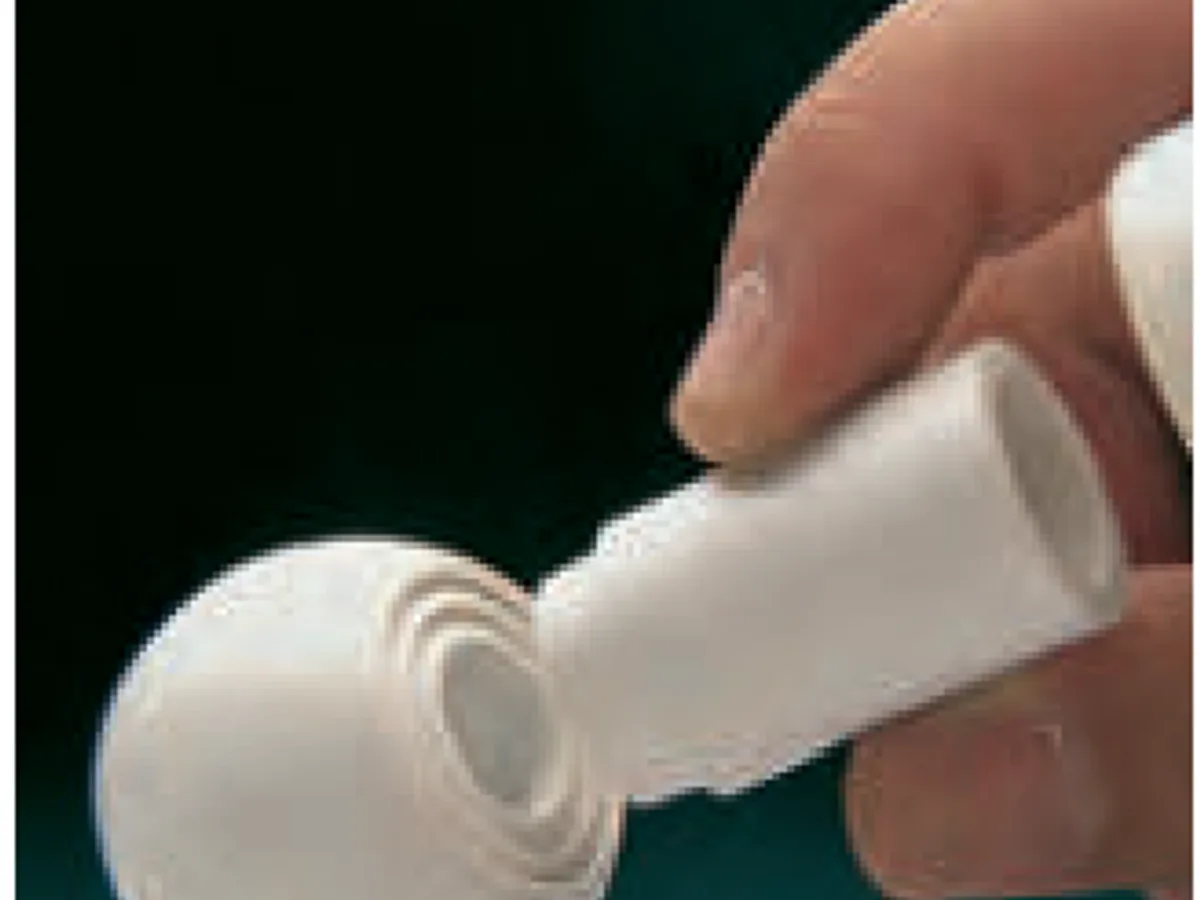

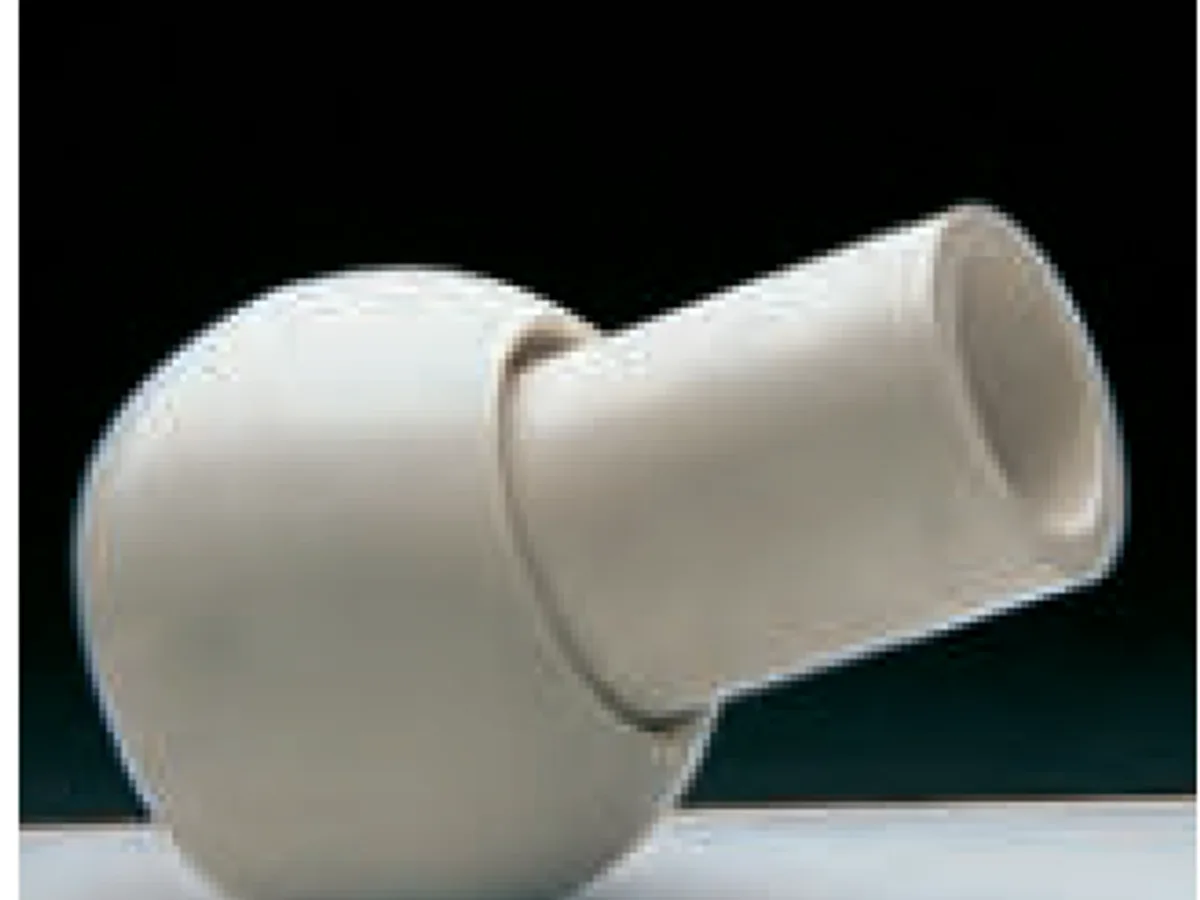

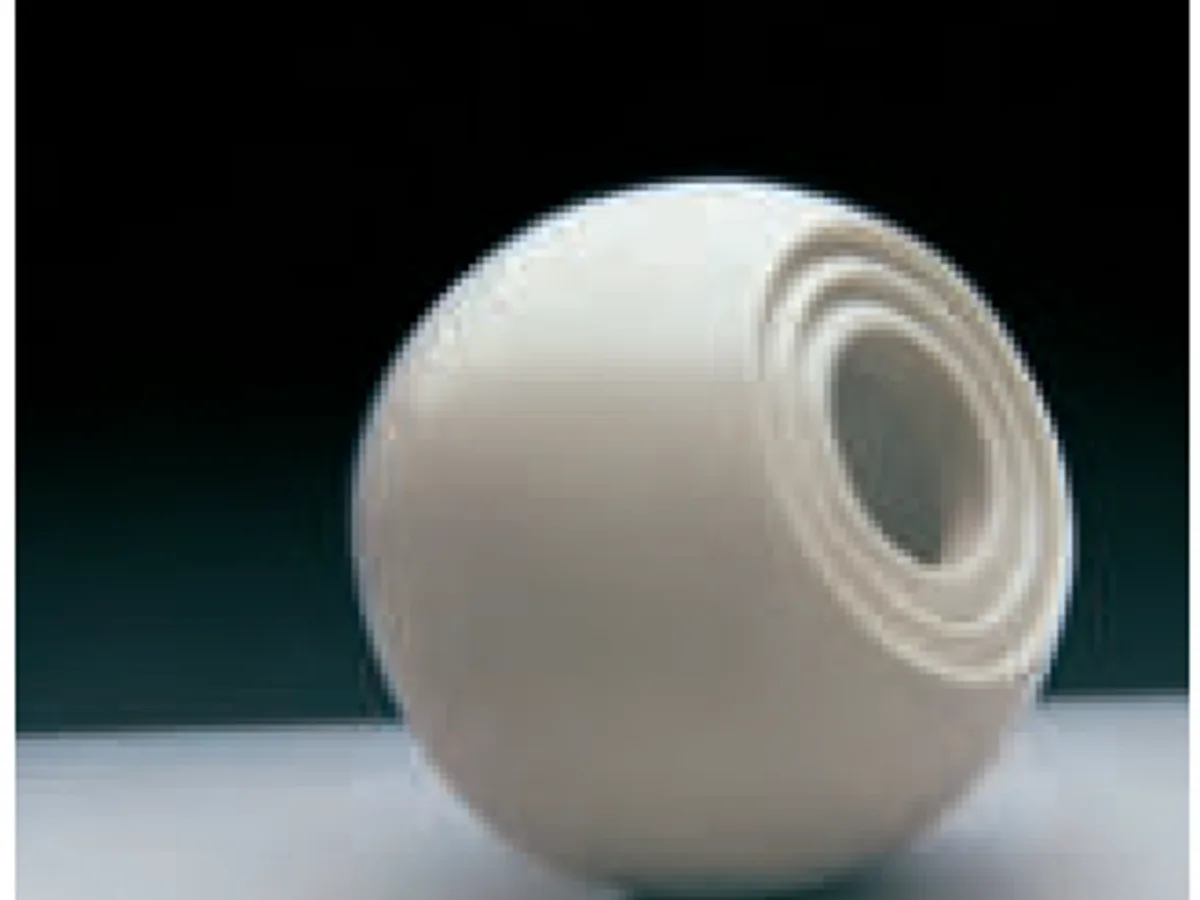

In the Multiflow (variable-flow) system the eyeball of the return inlet is supplied with a series of pre-marked diameters (14, 20 and 25 mm); one of them is cut out during installation using the punch supplied with the inlet. Hydraulic balancing at different points of the pool can thus be done with a single stock item.
The glued model (76493) is ideal for pool renovation: it has a longer body for gluing into the pipe, needs no large hole and reduces the risk of damaging the pipe when an existing wall nozzle is replaced; it can also be glued into a pipe that is not flush with the pool wall. The threaded models (00295, 00330) are 2" male threaded with Ø 50 mm female solvent weld; 00298 is glued onto Ø 63 mm PN6 outside and Ø 50 mm inside.
