Pool Ladders and Access Equipment
AstralPool AISI-316L ladders have Ø 43 mm AISI-316L stainless steel handrails and luxe-type stainless steps with non-slip pads. Standard, Muro (wall-parallel) and Mixto models come with 2–5 steps, including anchors and earthing; molybdenum content gives high corrosion resistance to chlorinated and salt water.
Standard model · 2 steps · EN 16582-1:2015
Birden fazla ürünü listenize ekleyip hepsi için tek seferde teklif isteyebilirsiniz. Tek ürün için hemen teklif isteyin.
| Material | AISI-316L stainless steel |
|---|---|
| Tube diameter | Ø 43 mm |
| Models | Standard (A 618) · Muro (A 318) · Mixto (A 318, G 491) |
| Number of steps | 2, 3, 4 or 5 |
| Included | Anchors and earthing connection |
| Warranty | 3 years |
| Standard | EN 16582-1:2015 |
Values by model
| Model | ||||
|---|---|---|---|---|
| Number of steps | 2 | 3 | 4 | 5 |
| B (mm) | 620 | 620 | 620 | 620 |
| C (mm) | 260 | 260 | 260 | 260 |
| D (mm) | 700 | 960 | 1220 | 1480 |
| E (mm) | 148 | 148 | 148 | 148 |
| F (mm) | 500 | 500 | 500 | 500 |
| Order code | Variant description | Certifications |
|---|---|---|
| 05476 | Standard model · 2 steps | EN 16582-1:2015 |
| 05477 | Standard model · 3 steps | EN 16582-1:2015 |
| 05478 | Standard model · 4 steps | EN 16582-1:2015 |
| 05479 | Standard model · 5 steps | EN 16582-1:2015 |
| 05480 | Muro model · 2 steps | EN 16582-1:2015 |
| 05481 | Muro model · 3 steps | EN 16582-1:2015 |
| 05482 | Muro model · 4 steps | EN 16582-1:2015 |
| 05483 | Muro model · 5 steps | EN 16582-1:2015 |
| 05484 | Mixto model · 2 steps | EN 16582-1:2015 |
| 05485 | Mixto model · 3 steps | EN 16582-1:2015 |
| 05486 | Mixto model · 4 steps | EN 16582-1:2015 |
| 05487 | Mixto model · 5 steps | EN 16582-1:2015 |
AstralPool AISI-316L ladders have Ø 43 mm AISI-316L stainless steel handrails and luxe-type stainless steps with non-slip pads. Standard, Muro (wall-parallel) and Mixto models come with 2–5 steps, including anchors and earthing; molybdenum content gives high corrosion resistance to chlorinated and salt water.
AISI-316L contains molybdenum in addition to AISI-304L and is the stainless grade most used in pools; it suits chlorine and low-salt disinfection in outdoor and indoor pools, inland and coastal. The luxe steps have non-slip pads.

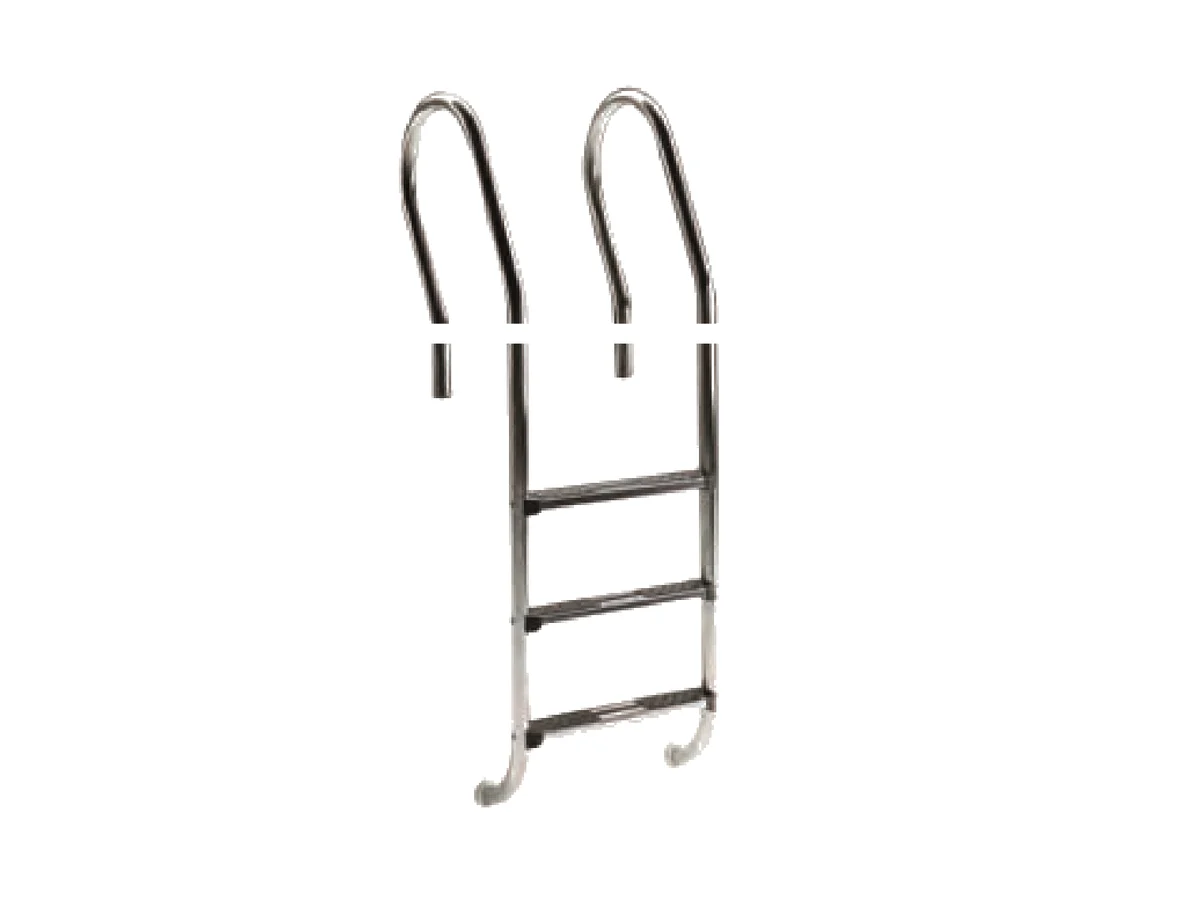

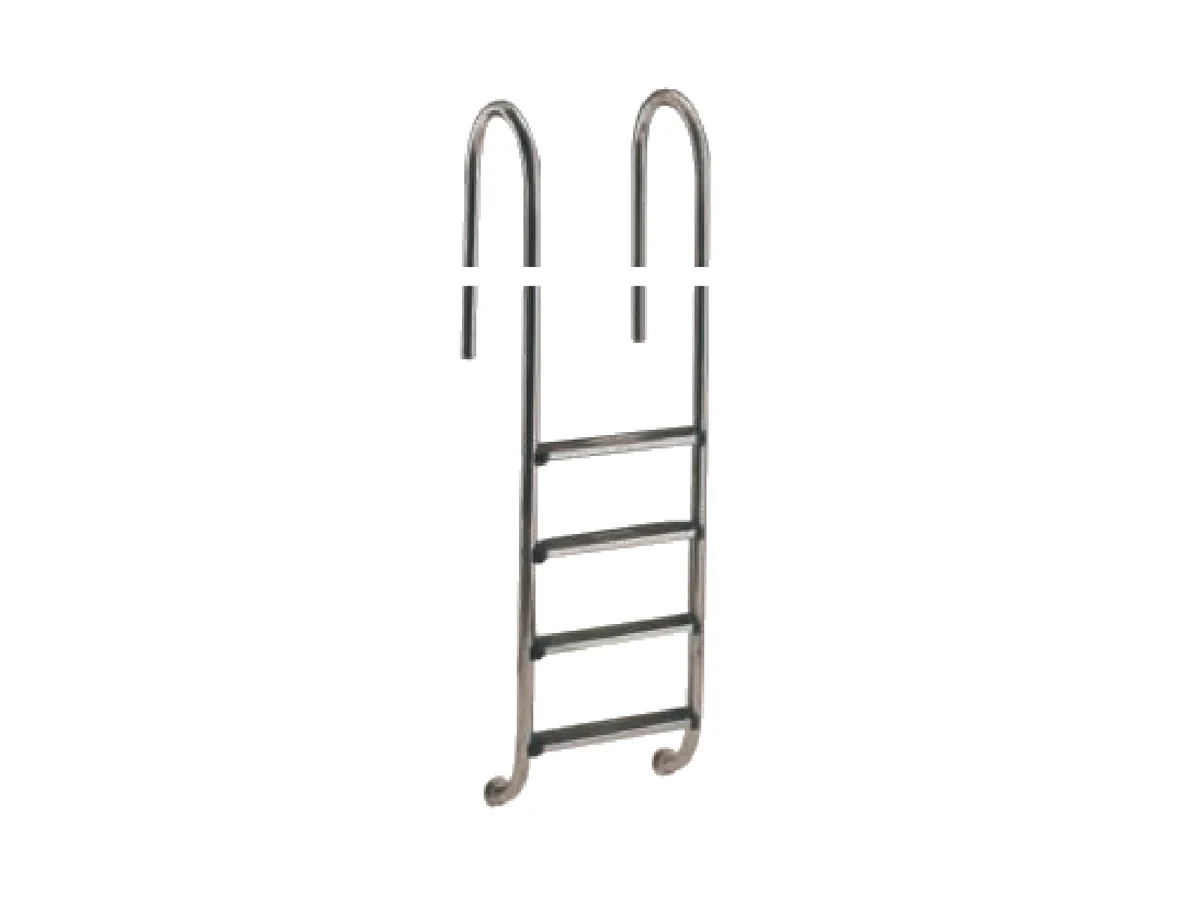

The Standard model has handrails curving outward from the pool edge (A = 618 mm); the Muro model's handrails run parallel to the wall (A = 318 mm); the Mixto model combines both designs (A = 318 mm, G = 491 mm). Depth dimension D rises from 700 mm (2 steps) to 1480 mm (5 steps).
